mitk::SegLabelPropModifyUndoRedoHelper Class Reference

RAII helper that captures state for undoing label property modifications. More...

#include <mitkSegChangeOperationApplier.h>

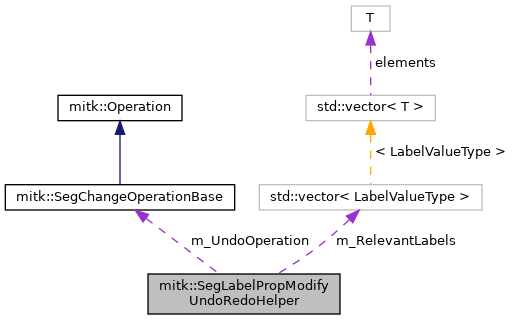

Collaboration diagram for mitk::SegLabelPropModifyUndoRedoHelper:

Public Member Functions
	SegLabelPropModifyUndoRedoHelper (MultiLabelSegmentation *segmentation, const MultiLabelSegmentation::LabelValueVectorType &relevantLabels)
	Capture the current properties of the specified labels for undo. More...
	~SegLabelPropModifyUndoRedoHelper ()
void	RegisterUndoRedoOperationEvent (const std::string &description)
	Capture the modified label properties as the redo operation and register the pair. More...

Protected Attributes
MultiLabelSegmentation::Pointer	m_Segmentation
MultiLabelSegmentation::LabelValueVectorType	m_RelevantLabels
SegChangeOperationBase *	m_UndoOperation

Detailed Description

RAII helper that captures state for undoing label property modifications.

On construction, the current label properties are captured as the undo operation. After the label properties are modified, call RegisterUndoRedoOperationEvent() to capture the new state and register both on the undo stack.

See also

SegLabelPropModifyOperation

SegChangeOperationApplier

Definition at line 193 of file mitkSegChangeOperationApplier.h.

Constructor & Destructor Documentation

SegLabelPropModifyUndoRedoHelper()

mitk::SegLabelPropModifyUndoRedoHelper::SegLabelPropModifyUndoRedoHelper	(	MultiLabelSegmentation *	segmentation,
		const MultiLabelSegmentation::LabelValueVectorType &	relevantLabels
	)

Capture the current properties of the specified labels for undo.

Parameters

segmentation	The segmentation to operate on.
relevantLabels	The label values whose properties will be modified.

~SegLabelPropModifyUndoRedoHelper()

mitk::SegLabelPropModifyUndoRedoHelper::~SegLabelPropModifyUndoRedoHelper

(

)

Member Function Documentation

RegisterUndoRedoOperationEvent()

void mitk::SegLabelPropModifyUndoRedoHelper::RegisterUndoRedoOperationEvent

(

const std::string &

description

)

Capture the modified label properties as the redo operation and register the pair.

Parameters

description

A human-readable description of the operation for the undo stack.

Member Data Documentation

m_RelevantLabels

MultiLabelSegmentation::LabelValueVectorType mitk::SegLabelPropModifyUndoRedoHelper::m_RelevantLabels

protected

Definition at line 213 of file mitkSegChangeOperationApplier.h.

m_Segmentation

MultiLabelSegmentation::Pointer mitk::SegLabelPropModifyUndoRedoHelper::m_Segmentation

protected

Definition at line 212 of file mitkSegChangeOperationApplier.h.

m_UndoOperation

SegChangeOperationBase* mitk::SegLabelPropModifyUndoRedoHelper::m_UndoOperation

protected

Definition at line 216 of file mitkSegChangeOperationApplier.h.

---

The documentation for this class was generated from the following file:

• mitkSegChangeOperationApplier.h
