An Operation for modifying the properties (e.g. name, color) of labels in a MultiLabelSegmentation. More...

#include <mitkSegLabelPropModifyOperation.h>

Inheritance diagram for mitk::SegLabelPropModifyOperation:

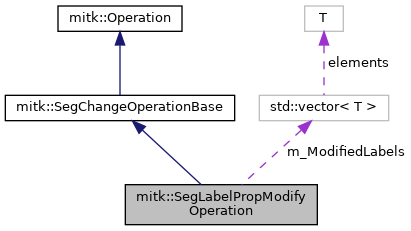

Collaboration diagram for mitk::SegLabelPropModifyOperation:

[legend]

Public Types
using	ModifyLabelsVectorType = MultiLabelSegmentation::ConstLabelVectorType

Public Member Functions
	mitkClassMacro (SegLabelPropModifyOperation, SegChangeOperationBase)

	SegLabelPropModifyOperation (MultiLabelSegmentation *segmentation, const ModifyLabelsVectorType &modifiedLabel)
	Construct a label property modify operation with the given label data. More...

	~SegLabelPropModifyOperation () override=default

const ModifyLabelsVectorType &	GetModifiedLabels () const
	Get the vector of modified labels stored in this operation. More...

	SegLabelPropModifyOperation (const SegLabelPropModifyOperation &)=delete

SegLabelPropModifyOperation &	operator= (const SegLabelPropModifyOperation &)=delete

Public Member Functions inherited from mitk::SegChangeOperationBase
	mitkClassMacro (SegChangeOperationBase, Operation)

	~SegChangeOperationBase () override=default

bool	IsValid () const override
	Check whether the operation is still valid (i.e., the segmentation still exists). More...

mitk::MultiLabelSegmentation::Pointer	GetSegmentation ()
	Get the target segmentation (mutable). More...

const mitk::MultiLabelSegmentation::ConstPointer	GetSegmentation () const
	Get the target segmentation (const). More...

Public Member Functions inherited from mitk::Operation
	mitkClassMacroNoParent (Operation) virtual bool IsValid() const
	Check whether this operation is still valid and can be executed. More...

virtual	~Operation ()=default
	Virtual destructor. More...

OperationType	GetOperationType ()
	Get the type identifier of this operation. More...

Static Public Member Functions
static SegLabelPropModifyOperation *	CreatFromSegmentation (MultiLabelSegmentation *segmentation, const MultiLabelSegmentation::LabelValueVectorType &relevantLabels)
	Factory method that creates a label property modify operation from the current segmentation state. More...

Protected Attributes
ModifyLabelsVectorType	m_ModifiedLabels

Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType
	The type identifier for this operation. More...

Additional Inherited Members
Protected Member Functions inherited from mitk::SegChangeOperationBase
	SegChangeOperationBase (mitk::MultiLabelSegmentation *segmentation, OperationType operationType)

	SegChangeOperationBase (SegChangeOperationBase &&)=default

SegChangeOperationBase &	operator= (const SegChangeOperationBase &)=default

SegChangeOperationBase &	operator= (SegChangeOperationBase &&)=default

Protected Member Functions inherited from mitk::Operation
	Operation (OperationType operationType)
	Construct an operation with the given type. More...

	Operation (const Operation &)=default

	Operation (Operation &&)=default

Operation &	operator= (const Operation &)=default

Operation &	operator= (Operation &&)=default

Detailed Description

An Operation for modifying the properties (e.g. name, color) of labels in a MultiLabelSegmentation.

See also: SegChangeOperationApplier

This Operation can be used to realize undo-redo functionality for changing label properties. If you want to add/remove labels from a segmentation (with or without pixel data), use SegGroupModifyOperation instead.

Definition at line 32 of file mitkSegLabelPropModifyOperation.h.

Member Typedef Documentation

◆ ModifyLabelsVectorType

using mitk::SegLabelPropModifyOperation::ModifyLabelsVectorType = MultiLabelSegmentation::ConstLabelVectorType

Definition at line 37 of file mitkSegLabelPropModifyOperation.h.

Constructor & Destructor Documentation

◆ SegLabelPropModifyOperation() [1/2]

mitk::SegLabelPropModifyOperation::SegLabelPropModifyOperation	(	MultiLabelSegmentation *	segmentation,
		const ModifyLabelsVectorType &	modifiedLabel
	)

Construct a label property modify operation with the given label data.

Parameters

segmentation	The target segmentation.
modifiedLabel	The vector of modified label objects containing new property values.

◆ ~SegLabelPropModifyOperation()

mitk::SegLabelPropModifyOperation::~SegLabelPropModifyOperation ( )

overridedefault

◆ SegLabelPropModifyOperation() [2/2]

mitk::SegLabelPropModifyOperation::SegLabelPropModifyOperation ( const SegLabelPropModifyOperation & )

delete

Member Function Documentation

◆ CreatFromSegmentation()

static SegLabelPropModifyOperation* mitk::SegLabelPropModifyOperation::CreatFromSegmentation	(	MultiLabelSegmentation *	segmentation,
		const MultiLabelSegmentation::LabelValueVectorType &	relevantLabels
	)

static

Factory method that creates a label property modify operation from the current segmentation state.

Parameters

segmentation	The segmentation to capture label properties from.
relevantLabels	The label values whose properties should be captured.

◆ GetModifiedLabels()

const ModifyLabelsVectorType& mitk::SegLabelPropModifyOperation::GetModifiedLabels ( ) const

Get the vector of modified labels stored in this operation.

◆ mitkClassMacro()

mitk::SegLabelPropModifyOperation::mitkClassMacro	(	SegLabelPropModifyOperation	,
		SegChangeOperationBase
	)

◆ operator=()

SegLabelPropModifyOperation& mitk::SegLabelPropModifyOperation::operator= ( const SegLabelPropModifyOperation & )

delete

Member Data Documentation

◆ m_ModifiedLabels

ModifyLabelsVectorType mitk::SegLabelPropModifyOperation::m_ModifiedLabels

protected

Definition at line 63 of file mitkSegLabelPropModifyOperation.h.

The documentation for this class was generated from the following file:

mitkSegLabelPropModifyOperation.h
