mitk::SegGroupRemoveUndoRedoHelper Class Reference

RAII helper that captures state for undoing a group remove operation. More...

#include <mitkSegChangeOperationApplier.h>

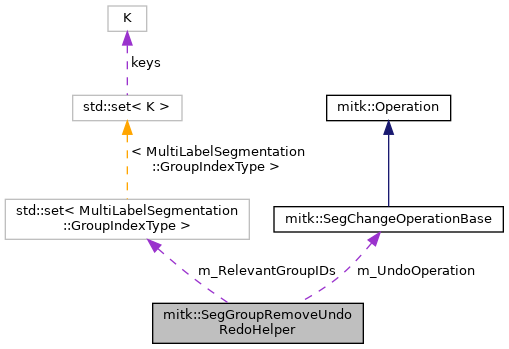

Collaboration diagram for mitk::SegGroupRemoveUndoRedoHelper:

Public Types
using	GroupIndexSetType = std::set< MultiLabelSegmentation::GroupIndexType >

Public Member Functions
	SegGroupRemoveUndoRedoHelper (MultiLabelSegmentation *segmentation, const GroupIndexSetType &relevantGroupIDs, bool noLabels=false, bool noGroupImages=false)
	Capture the current state of the groups that will be removed (for undo). More...
	~SegGroupRemoveUndoRedoHelper ()
void	RegisterUndoRedoOperationEvent (const std::string &description)
	Register the undo (insert) and redo (remove) operations on the undo stack. More...

Protected Attributes
MultiLabelSegmentation::Pointer	m_Segmentation
GroupIndexSetType	m_RelevantGroupIDs
SegChangeOperationBase *	m_UndoOperation

Detailed Description

RAII helper that captures state for undoing a group remove operation.

On construction, a SegGroupInsertOperation is prepared as the undo operation (capturing the groups that are about to be removed). After the removal is performed, call RegisterUndoRedoOperationEvent() to register the undo/redo pair.

See also

SegGroupRemoveOperation

SegChangeOperationApplier

Definition at line 154 of file mitkSegChangeOperationApplier.h.

Member Typedef Documentation

GroupIndexSetType

using mitk::SegGroupRemoveUndoRedoHelper::GroupIndexSetType = std::set<MultiLabelSegmentation::GroupIndexType>

Definition at line 158 of file mitkSegChangeOperationApplier.h.

Constructor & Destructor Documentation

SegGroupRemoveUndoRedoHelper()

mitk::SegGroupRemoveUndoRedoHelper::SegGroupRemoveUndoRedoHelper	(	MultiLabelSegmentation *	segmentation,
		const GroupIndexSetType &	relevantGroupIDs,
		bool	noLabels = false,
		bool	noGroupImages = false
	)

Capture the current state of the groups that will be removed (for undo).

Parameters

segmentation	The segmentation to operate on.
relevantGroupIDs	The group indices that will be removed.
noLabels	If true, label information is not captured.
noGroupImages	If true, group image data is not captured.

~SegGroupRemoveUndoRedoHelper()

mitk::SegGroupRemoveUndoRedoHelper::~SegGroupRemoveUndoRedoHelper

(

)

Member Function Documentation

RegisterUndoRedoOperationEvent()

void mitk::SegGroupRemoveUndoRedoHelper::RegisterUndoRedoOperationEvent

(

const std::string &

description

)

Register the undo (insert) and redo (remove) operations on the undo stack.

Parameters

description

A human-readable description of the operation for the undo stack.

Member Data Documentation

m_RelevantGroupIDs

GroupIndexSetType mitk::SegGroupRemoveUndoRedoHelper::m_RelevantGroupIDs

protected

Definition at line 178 of file mitkSegChangeOperationApplier.h.

m_Segmentation

MultiLabelSegmentation::Pointer mitk::SegGroupRemoveUndoRedoHelper::m_Segmentation

protected

Definition at line 177 of file mitkSegChangeOperationApplier.h.

m_UndoOperation

SegChangeOperationBase* mitk::SegGroupRemoveUndoRedoHelper::m_UndoOperation

protected

Definition at line 181 of file mitkSegChangeOperationApplier.h.

---

The documentation for this class was generated from the following file:

• mitkSegChangeOperationApplier.h
