An Operation for inserting groups into a MultiLabelSegmentation. More...

#include <mitkSegGroupInsertOperation.h>

Inheritance diagram for mitk::SegGroupInsertOperation:

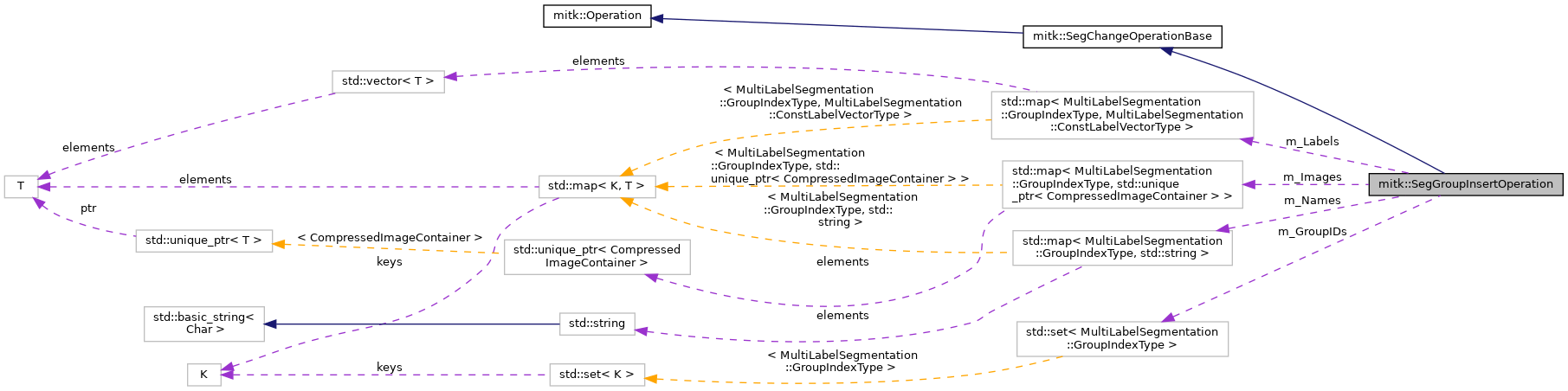

Collaboration diagram for mitk::SegGroupInsertOperation:

[legend]

Public Types
using	ModifyGroupImageMapType = std::map< MultiLabelSegmentation::GroupIndexType, Image::ConstPointer >

using	ModifyLabelsMapType = std::map< MultiLabelSegmentation::GroupIndexType, MultiLabelSegmentation::ConstLabelVectorType >

using	GroupIndexSetType = std::set< MultiLabelSegmentation::GroupIndexType >

using	ModifyGroupNameMapType = std::map< MultiLabelSegmentation::GroupIndexType, std::string >

Public Member Functions
	mitkClassMacro (SegGroupInsertOperation, SegChangeOperationBase)

	SegGroupInsertOperation (MultiLabelSegmentation *segmentation, const GroupIndexSetType &groupIDs, const ModifyGroupImageMapType &groupImages={}, const ModifyLabelsMapType &groupLabels={})
	Construct an insert operation with the given group data. More...

	~SegGroupInsertOperation () override=default

GroupIndexSetType	GetGroupIDs () const
	Get all group indices managed by this operation. More...

GroupIndexSetType	GetImageGroupIDs () const
	Get the group indices that have associated image data. More...

GroupIndexSetType	GetLabelGroupIDs () const
	Get the group indices that have associated label data. More...

Image::Pointer	GetGroupImage (MultiLabelSegmentation::GroupIndexType groupID) const
	Get the group image for a specific group index. More...

MultiLabelSegmentation::ConstLabelVectorType	GetGroupLabels (MultiLabelSegmentation::GroupIndexType groupID) const
	Get the labels for a specific group index. More...

std::string	GetGroupName (MultiLabelSegmentation::GroupIndexType groupID) const
	Get the group name for a specific group index. More...

	SegGroupInsertOperation (const SegGroupInsertOperation &)=delete

SegGroupInsertOperation &	operator= (const SegGroupInsertOperation &)=delete

Public Member Functions inherited from mitk::SegChangeOperationBase
	mitkClassMacro (SegChangeOperationBase, Operation)

	~SegChangeOperationBase () override=default

bool	IsValid () const override
	Check whether the operation is still valid (i.e., the segmentation still exists). More...

mitk::MultiLabelSegmentation::Pointer	GetSegmentation ()
	Get the target segmentation (mutable). More...

const mitk::MultiLabelSegmentation::ConstPointer	GetSegmentation () const
	Get the target segmentation (const). More...

Public Member Functions inherited from mitk::Operation
	mitkClassMacroNoParent (Operation) virtual bool IsValid() const
	Check whether this operation is still valid and can be executed. More...

virtual	~Operation ()=default
	Virtual destructor. More...

OperationType	GetOperationType ()
	Get the type identifier of this operation. More...

Static Public Member Functions
static SegGroupInsertOperation *	CreateFromSegmentation (MultiLabelSegmentation *segmentation, const GroupIndexSetType &relevantGroupIDs, bool noLabels=false, bool noGroupImages=false)
	Factory method that creates an insert operation from the current state of a segmentation. More...

Protected Types
using	ModifyCompressedImageMapType = std::map< MultiLabelSegmentation::GroupIndexType, std::unique_ptr< CompressedImageContainer > >

Protected Attributes
GroupIndexSetType	m_GroupIDs

ModifyCompressedImageMapType	m_Images

ModifyLabelsMapType	m_Labels

ModifyGroupNameMapType	m_Names

Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType
	The type identifier for this operation. More...

Additional Inherited Members
Protected Member Functions inherited from mitk::SegChangeOperationBase
	SegChangeOperationBase (mitk::MultiLabelSegmentation *segmentation, OperationType operationType)

	SegChangeOperationBase (SegChangeOperationBase &&)=default

SegChangeOperationBase &	operator= (const SegChangeOperationBase &)=default

SegChangeOperationBase &	operator= (SegChangeOperationBase &&)=default

Protected Member Functions inherited from mitk::Operation
	Operation (OperationType operationType)
	Construct an operation with the given type. More...

	Operation (const Operation &)=default

	Operation (Operation &&)=default

Operation &	operator= (const Operation &)=default

Operation &	operator= (Operation &&)=default

Detailed Description

An Operation for inserting groups into a MultiLabelSegmentation.

See also: SegChangeOperationApplier

This Operation can be used to realize undo-redo functionality for group insertion in segmentation workflows. It stores group images, labels, and names to be inserted at specific group indices.

Definition at line 32 of file mitkSegGroupInsertOperation.h.

Member Typedef Documentation

◆ GroupIndexSetType

using mitk::SegGroupInsertOperation::GroupIndexSetType = std::set<MultiLabelSegmentation::GroupIndexType>

Definition at line 39 of file mitkSegGroupInsertOperation.h.

◆ ModifyCompressedImageMapType

using mitk::SegGroupInsertOperation::ModifyCompressedImageMapType = std::map<MultiLabelSegmentation::GroupIndexType, std::unique_ptr<CompressedImageContainer> >

protected

Definition at line 91 of file mitkSegGroupInsertOperation.h.

◆ ModifyGroupImageMapType

using mitk::SegGroupInsertOperation::ModifyGroupImageMapType = std::map<MultiLabelSegmentation::GroupIndexType, Image::ConstPointer >

Definition at line 37 of file mitkSegGroupInsertOperation.h.

◆ ModifyGroupNameMapType

using mitk::SegGroupInsertOperation::ModifyGroupNameMapType = std::map<MultiLabelSegmentation::GroupIndexType, std::string >

Definition at line 40 of file mitkSegGroupInsertOperation.h.

◆ ModifyLabelsMapType

using mitk::SegGroupInsertOperation::ModifyLabelsMapType = std::map<MultiLabelSegmentation::GroupIndexType, MultiLabelSegmentation::ConstLabelVectorType>

Definition at line 38 of file mitkSegGroupInsertOperation.h.

Constructor & Destructor Documentation

◆ SegGroupInsertOperation() [1/2]

mitk::SegGroupInsertOperation::SegGroupInsertOperation	(	MultiLabelSegmentation *	segmentation,
		const GroupIndexSetType &	groupIDs,
		const ModifyGroupImageMapType &	groupImages = `{}`,
		const ModifyLabelsMapType &	groupLabels = `{}`
	)

Construct an insert operation with the given group data.

Parameters

segmentation	The target segmentation.
groupIDs	The set of group indices to insert.
groupImages	Optional map of group images to insert.
groupLabels	Optional map of labels to insert for each group.

◆ ~SegGroupInsertOperation()

mitk::SegGroupInsertOperation::~SegGroupInsertOperation ( )

overridedefault

◆ SegGroupInsertOperation() [2/2]

mitk::SegGroupInsertOperation::SegGroupInsertOperation ( const SegGroupInsertOperation & )

delete

Member Function Documentation

◆ CreateFromSegmentation()

static SegGroupInsertOperation* mitk::SegGroupInsertOperation::CreateFromSegmentation	(	MultiLabelSegmentation *	segmentation,
		const GroupIndexSetType &	relevantGroupIDs,
		bool	noLabels = `false`,
		bool	noGroupImages = `false`
	)

static

Factory method that creates an insert operation from the current state of a segmentation.

Parameters

segmentation	The segmentation to capture state from.
relevantGroupIDs	The group indices to capture.
noLabels	If true, label information is not captured.
noGroupImages	If true, group image data is not captured.

◆ GetGroupIDs()

GroupIndexSetType mitk::SegGroupInsertOperation::GetGroupIDs ( ) const

Get all group indices managed by this operation.

◆ GetGroupImage()

Image::Pointer mitk::SegGroupInsertOperation::GetGroupImage ( MultiLabelSegmentation::GroupIndexType groupID ) const

Get the group image for a specific group index.

Parameters

groupID The group index.

Returns: The stored group image, decompressed from the internal container.

◆ GetGroupLabels()

MultiLabelSegmentation::ConstLabelVectorType mitk::SegGroupInsertOperation::GetGroupLabels ( MultiLabelSegmentation::GroupIndexType groupID ) const

Get the labels for a specific group index.

◆ GetGroupName()

std::string mitk::SegGroupInsertOperation::GetGroupName ( MultiLabelSegmentation::GroupIndexType groupID ) const

Get the group name for a specific group index.

◆ GetImageGroupIDs()

GroupIndexSetType mitk::SegGroupInsertOperation::GetImageGroupIDs ( ) const

Get the group indices that have associated image data.

◆ GetLabelGroupIDs()

GroupIndexSetType mitk::SegGroupInsertOperation::GetLabelGroupIDs ( ) const

Get the group indices that have associated label data.

◆ mitkClassMacro()

mitk::SegGroupInsertOperation::mitkClassMacro	(	SegGroupInsertOperation	,
		SegChangeOperationBase
	)

◆ operator=()

SegGroupInsertOperation& mitk::SegGroupInsertOperation::operator= ( const SegGroupInsertOperation & )

delete

Member Data Documentation

◆ m_GroupIDs

GroupIndexSetType mitk::SegGroupInsertOperation::m_GroupIDs

protected

Definition at line 92 of file mitkSegGroupInsertOperation.h.

◆ m_Images

ModifyCompressedImageMapType mitk::SegGroupInsertOperation::m_Images

protected

Definition at line 93 of file mitkSegGroupInsertOperation.h.

◆ m_Labels

ModifyLabelsMapType mitk::SegGroupInsertOperation::m_Labels

protected

Definition at line 94 of file mitkSegGroupInsertOperation.h.

◆ m_Names

ModifyGroupNameMapType mitk::SegGroupInsertOperation::m_Names

protected

Definition at line 95 of file mitkSegGroupInsertOperation.h.

The documentation for this class was generated from the following file:

mitkSegGroupInsertOperation.h
