mitk::SegGroupInsertUndoRedoHelper Class Reference

RAII helper that captures state for undoing a group insert operation. More...

#include <mitkSegChangeOperationApplier.h>

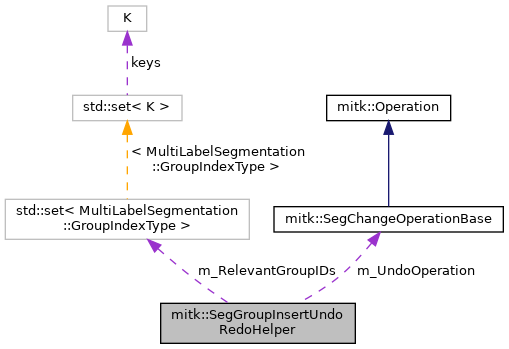

Collaboration diagram for mitk::SegGroupInsertUndoRedoHelper:

Public Types
using	GroupIndexSetType = std::set< MultiLabelSegmentation::GroupIndexType >

Public Member Functions
	SegGroupInsertUndoRedoHelper (MultiLabelSegmentation *segmentation, const GroupIndexSetType &relevantGroupIDs, bool noLabels=false, bool noGroupImages=false)
	Prepare the undo operation (removal) for the groups that will be inserted. More...
	~SegGroupInsertUndoRedoHelper ()
void	RegisterUndoRedoOperationEvent (const std::string &description)
	Capture the current (inserted) state as the redo operation and register the undo/redo pair. More...

Protected Attributes
MultiLabelSegmentation::Pointer	m_Segmentation
GroupIndexSetType	m_RelevantGroupIDs
bool	m_NoLabels
bool	m_NoGroupImages
SegChangeOperationBase *	m_UndoOperation

Detailed Description

RAII helper that captures state for undoing a group insert operation.

On construction, a SegGroupRemoveOperation is prepared as the undo operation. After the insert is performed, call RegisterUndoRedoOperationEvent() to capture the redo (insert) state and register both on the undo stack.

See also

SegGroupInsertOperation

SegChangeOperationApplier

Definition at line 114 of file mitkSegChangeOperationApplier.h.

Member Typedef Documentation

GroupIndexSetType

using mitk::SegGroupInsertUndoRedoHelper::GroupIndexSetType = std::set<MultiLabelSegmentation::GroupIndexType>

Definition at line 118 of file mitkSegChangeOperationApplier.h.

Constructor & Destructor Documentation

SegGroupInsertUndoRedoHelper()

mitk::SegGroupInsertUndoRedoHelper::SegGroupInsertUndoRedoHelper	(	MultiLabelSegmentation *	segmentation,
		const GroupIndexSetType &	relevantGroupIDs,
		bool	noLabels = false,
		bool	noGroupImages = false
	)

Prepare the undo operation (removal) for the groups that will be inserted.

Parameters

segmentation	The segmentation to operate on.
relevantGroupIDs	The group indices that will be inserted.
noLabels	If true, label information is not captured in the redo operation.
noGroupImages	If true, group image data is not captured in the redo operation.

~SegGroupInsertUndoRedoHelper()

mitk::SegGroupInsertUndoRedoHelper::~SegGroupInsertUndoRedoHelper

(

)

Member Function Documentation

RegisterUndoRedoOperationEvent()

void mitk::SegGroupInsertUndoRedoHelper::RegisterUndoRedoOperationEvent

(

const std::string &

description

)

Capture the current (inserted) state as the redo operation and register the undo/redo pair.

Parameters

description

A human-readable description of the operation for the undo stack.

Member Data Documentation

m_NoGroupImages

bool mitk::SegGroupInsertUndoRedoHelper::m_NoGroupImages

protected

Definition at line 140 of file mitkSegChangeOperationApplier.h.

m_NoLabels

bool mitk::SegGroupInsertUndoRedoHelper::m_NoLabels

protected

Definition at line 139 of file mitkSegChangeOperationApplier.h.

m_RelevantGroupIDs

GroupIndexSetType mitk::SegGroupInsertUndoRedoHelper::m_RelevantGroupIDs

protected

Definition at line 138 of file mitkSegChangeOperationApplier.h.

m_Segmentation

MultiLabelSegmentation::Pointer mitk::SegGroupInsertUndoRedoHelper::m_Segmentation

protected

Definition at line 137 of file mitkSegChangeOperationApplier.h.

m_UndoOperation

SegChangeOperationBase* mitk::SegGroupInsertUndoRedoHelper::m_UndoOperation

protected

Definition at line 142 of file mitkSegChangeOperationApplier.h.

---

The documentation for this class was generated from the following file:

• mitkSegChangeOperationApplier.h
