mitk::RotationOperation Class Reference
Operation that holds everything necessary for a rotation operation on mitk::BaseData. More...
#include <mitkRotationOperation.h>
Inheritance diagram for mitk::RotationOperation:

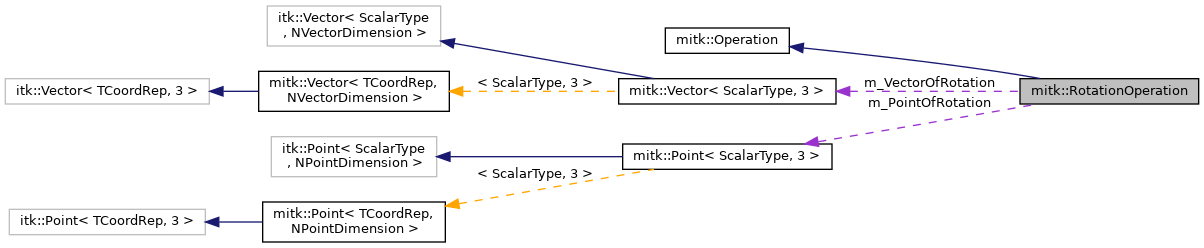

Collaboration diagram for mitk::RotationOperation:
Public Member Functions | |
| RotationOperation (OperationType operationType, Point3D pointOfRotation, Vector3D vectorOfRotation, ScalarType angleOfRotation) | |
| Constructor to create a rotation operation. More... | |
| ~RotationOperation (void) override | |
| Destructor. More... | |
| virtual ScalarType | GetAngleOfRotation () |
| Returns the rotation angle. More... | |
| virtual const Point3D | GetCenterOfRotation () |
| Returns the anchor point of rotation. More... | |
| virtual const Vector3D | GetVectorOfRotation () |
| Returns the rotation axis. More... | |
 Public Member Functions inherited from mitk::Operation | |
| mitkClassMacroNoParent (Operation) virtual bool IsValid() const | |
| Check whether this operation is still valid and can be executed. More... | |
| virtual | ~Operation ()=default |
| Virtual destructor. More... | |
| OperationType | GetOperationType () |
| Get the type identifier of this operation. More... | |
Protected Attributes | |
| ScalarType | m_AngleOfRotation |
| Point3D | m_PointOfRotation |
| Vector3D | m_VectorOfRotation |
| Protected Attributes inherited from mitk::Operation | |
| OperationType | m_OperationType |
| The type identifier for this operation. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from mitk::Operation | |
| Operation (OperationType operationType) | |
| Construct an operation with the given type. More... | |
| Operation (const Operation &)=default | |
| Operation (Operation &&)=default | |
| Operation & | operator= (const Operation &)=default |
| Operation & | operator= (Operation &&)=default |
Detailed Description
Operation that holds everything necessary for a rotation operation on mitk::BaseData.
- See also
- Operation
Definition at line 27 of file mitkRotationOperation.h.
Constructor & Destructor Documentation
◆ RotationOperation()
| mitk::RotationOperation::RotationOperation | ( | OperationType | operationType, |
| Point3D | pointOfRotation, | ||
| Vector3D | vectorOfRotation, | ||
| ScalarType | angleOfRotation | ||
| ) |
Constructor to create a rotation operation.
- Parameters
-
operationType this has to be set to OpROTATE. pointOfRotation anchor point for rotation. vectorOfRotation axis for rotation. angleOfRotation angle for rotation in degrees.
◆ ~RotationOperation()
|
override |
Destructor.
Member Function Documentation
◆ GetAngleOfRotation()
|
virtual |
Returns the rotation angle.
- Returns
- Angle in degrees.
◆ GetCenterOfRotation()
|
virtual |
Returns the anchor point of rotation.
- Returns
- The anchor point to rotate the base data around.
◆ GetVectorOfRotation()
|
virtual |
Returns the rotation axis.
- Returns
- Rotation axis as vector.
Member Data Documentation
◆ m_AngleOfRotation
|
protected |
Definition at line 68 of file mitkRotationOperation.h.
◆ m_PointOfRotation
|
protected |
Definition at line 69 of file mitkRotationOperation.h.
◆ m_VectorOfRotation
|
protected |
Definition at line 70 of file mitkRotationOperation.h.
The documentation for this class was generated from the following file:
