Coordinates multiple Stepper instances to step through in parallel. More...

#include <mitkMultiStepper.h>

Inheritance diagram for mitk::MultiStepper:

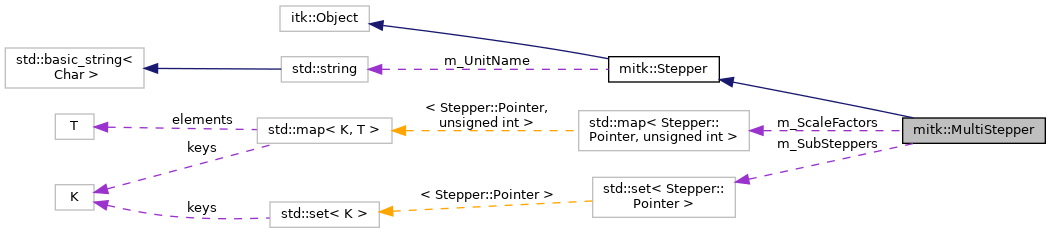

Collaboration diagram for mitk::MultiStepper:

[legend]

Public Member Functions
	mitkClassMacro (MultiStepper, Stepper)

Pointer	Clone () const

void	AddStepper (Stepper::Pointer stepper, unsigned int repeat=1)
	Add a sub-stepper with an optional repeat factor. More...

void	RemoveStepper (Stepper::Pointer stepper, unsigned int repeat=1)
	Remove a sub-stepper. More...

void	SetPos (unsigned int pos) override
	Set the position and synchronize all sub-steppers. More...

void	SetSteps (const unsigned int steps) override
	Setting steps directly is not supported; triggers an assertion. More...

Public Member Functions inherited from mitk::Stepper
	mitkClassMacroItkParent (Stepper, itk::Object)

Pointer	Clone () const

virtual unsigned int	GetPos () const

virtual unsigned int	GetSteps () const

virtual bool	GetAutoRepeat () const

virtual void	SetAutoRepeat (bool _arg)

virtual void	AutoRepeatOn ()

virtual void	AutoRepeatOff ()

virtual void	SetPingPong (bool _arg)

virtual bool	GetPingPong () const

virtual void	PingPongOn ()

virtual void	PingPongOff ()

virtual void	SetInverseDirection (bool _arg)

virtual bool	GetInverseDirection () const

virtual void	InverseDirectionOn ()

virtual void	InverseDirectionOff ()

void	SetRange (ScalarType min, ScalarType max)
	Set the scalar range (min/max) corresponding to the step positions. More...

void	InvalidateRange ()
	Mark the current range as invalid while keeping the range itself. More...

ScalarType	GetRangeMin () const
	Get the minimum value of the range. More...

ScalarType	GetRangeMax () const
	Get the maximum value of the range. More...

bool	HasValidRange () const
	Check whether the range has been set and is currently valid. More...

void	RemoveRange ()
	Remove the range entirely. More...

bool	HasRange () const
	Check whether a range has been set (may or may not be valid). More...

void	SetUnitName (const char *unitName)
	Set the unit name string (e.g. "mm") for the stepping range. More...

const char *	GetUnitName () const
	Get the unit name string. More...

void	RemoveUnitName ()
	Remove the unit name. More...

bool	HasUnitName () const
	Check whether a unit name has been set. More...

virtual void	Next ()
	Advance to the next position in the list. More...

virtual void	Previous ()
	Go to the previous position in the list. More...

virtual void	MoveSlice (int sliceDelta)
	Move the position by a given delta (positive or negative). More...

virtual void	First ()
	Go to the first position (index 0). More...

virtual void	Last ()
	Go to the last position (index GetSteps() - 1). More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::Stepper
static Pointer	New ()

Protected Types
typedef std::set< Stepper::Pointer >	StepperSet

typedef std::map< Stepper::Pointer, unsigned int >	ScaleFactorMap

Protected Member Functions
	MultiStepper ()

	~MultiStepper () override

void	UpdateStepCount ()

Protected Member Functions inherited from mitk::Stepper
	Stepper ()

	~Stepper () override

void	Increase ()
	Increment position by one, respecting AutoRepeat and PingPong. More...

void	Decrease ()
	Decrement position by one, respecting AutoRepeat and PingPong. More...

Protected Attributes
StepperSet	m_SubSteppers

ScaleFactorMap	m_ScaleFactors

Stepper::Pointer	m_LargestRangeStepper

Protected Attributes inherited from mitk::Stepper
unsigned int	m_Pos

unsigned int	m_Steps

bool	m_AutoRepeat

bool	m_PingPong

bool	m_InverseDirection

ScalarType	m_RangeMin

ScalarType	m_RangeMax

bool	m_RangeValid

bool	m_HasRange

std::string	m_UnitName

bool	m_HasUnitName

Detailed Description

Coordinates multiple Stepper instances to step through in parallel.

A MultiStepper aggregates several sub-steppers and synchronizes their positions. When the MultiStepper's position is set, each sub-stepper is moved proportionally according to its range and repeat factor. The total step count is determined by the sub-stepper with the largest effective range.

See also: Stepper

Definition at line 38 of file mitkMultiStepper.h.

Member Typedef Documentation

◆ ScaleFactorMap

typedef std::map<Stepper::Pointer, unsigned int> mitk::MultiStepper::ScaleFactorMap

protected

Definition at line 86 of file mitkMultiStepper.h.

◆ StepperSet

typedef std::set<Stepper::Pointer> mitk::MultiStepper::StepperSet

protected

Definition at line 85 of file mitkMultiStepper.h.

Constructor & Destructor Documentation

◆ MultiStepper()

mitk::MultiStepper::MultiStepper ( )

protected

◆ ~MultiStepper()

mitk::MultiStepper::~MultiStepper ( )

overrideprotected

Member Function Documentation

◆ AddStepper()

void mitk::MultiStepper::AddStepper	(	Stepper::Pointer	stepper,
		unsigned int	repeat = `1`
	)

Add a sub-stepper with an optional repeat factor.

The effective range of the stepper is its step count multiplied by the repeat factor.

Parameters

[in]	stepper	The stepper to add.
[in]	repeat	The repeat (scale) factor (default 1).

◆ Clone()

Pointer mitk::MultiStepper::Clone ( ) const

◆ mitkClassMacro()

mitk::MultiStepper::mitkClassMacro	(	MultiStepper	,
		Stepper
	)

◆ New()

static Pointer mitk::MultiStepper::New ( )

static

◆ RemoveStepper()

void mitk::MultiStepper::RemoveStepper	(	Stepper::Pointer	stepper,
		unsigned int	repeat = `1`
	)

Remove a sub-stepper.

Parameters

[in]	stepper	The stepper to remove.
[in]	repeat	Not used; kept for API compatibility.

◆ SetPos()

void mitk::MultiStepper::SetPos ( unsigned int pos )

overridevirtual

Set the position and synchronize all sub-steppers.

Each sub-stepper is moved proportionally to its range.

Parameters

[in] pos The new position.

Reimplemented from mitk::Stepper.

◆ SetSteps()

void mitk::MultiStepper::SetSteps ( const unsigned int steps )

overridevirtual

Setting steps directly is not supported; triggers an assertion.

The step count is determined automatically from the sub-steppers.

Parameters

[in] steps Ignored.

Reimplemented from mitk::Stepper.

◆ UpdateStepCount()

void mitk::MultiStepper::UpdateStepCount ( )

protected

Member Data Documentation

◆ m_LargestRangeStepper

Stepper::Pointer mitk::MultiStepper::m_LargestRangeStepper

protected

Definition at line 89 of file mitkMultiStepper.h.

◆ m_ScaleFactors

ScaleFactorMap mitk::MultiStepper::m_ScaleFactors

protected

Definition at line 88 of file mitkMultiStepper.h.

◆ m_SubSteppers

StepperSet mitk::MultiStepper::m_SubSteppers

protected

Definition at line 87 of file mitkMultiStepper.h.

The documentation for this class was generated from the following file:

mitkMultiStepper.h
