Generates masks for statistics computation from multi-label segmentations. More...

#include <mitkMultiLabelMaskGenerator.h>

Inheritance diagram for mitk::MultiLabelMaskGenerator:

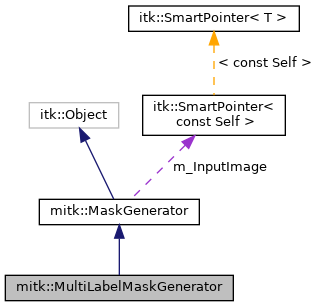

Collaboration diagram for mitk::MultiLabelMaskGenerator:

Public Member Functions
	mitkClassMacro (MultiLabelMaskGenerator, MaskGenerator)

unsigned int	GetNumberOfMasks () const override
	Get the number of masks (one per label in the segmentation). More...

virtual void	SetMultiLabelSegmentation (const MultiLabelSegmentation *_arg)
	Set the multi-label segmentation from which to generate masks. More...

Public Member Functions inherited from mitk::MaskGenerator
	mitkClassMacroItkParent (MaskGenerator, itk::Object)

mitk::Image::ConstPointer	GetMask (unsigned int maskID)
	Get the generated mask image. More...

virtual mitk::Image::ConstPointer	GetReferenceImage ()
	Get the reference image associated with this mask generator. More...

virtual void	SetInputImage (const mitk::Image *_arg)
	Set the input image for the mask generator. More...

virtual void	SetTimePoint (TimePointType _arg)
	Set the time point for which to generate the mask. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	MultiLabelMaskGenerator ()=default

	~MultiLabelMaskGenerator ()=default

Image::ConstPointer	DoGetMask (unsigned int maskID) override
	Must be overridden by derived classes to generate the requested mask. More...

Protected Member Functions inherited from mitk::MaskGenerator
	MaskGenerator ()

Additional Inherited Members
Protected Attributes inherited from mitk::MaskGenerator
TimePointType	m_TimePoint

mitk::Image::ConstPointer	m_InputImage

Detailed Description

Generates masks for statistics computation from multi-label segmentations.

This mask generator takes a MultiLabelSegmentation and produces one binary mask per label. Each mask isolates a single label from the segmentation, allowing per-label statistics to be computed via ImageStatisticsCalculator.

The number of masks returned by GetNumberOfMasks() equals the number of labels in the segmentation.

See also: MaskGenerator; ImageStatisticsCalculator; MultiLabelSegmentation

Definition at line 37 of file mitkMultiLabelMaskGenerator.h.

Constructor & Destructor Documentation

◆ MultiLabelMaskGenerator()

mitk::MultiLabelMaskGenerator::MultiLabelMaskGenerator ( )

protecteddefault

◆ ~MultiLabelMaskGenerator()

mitk::MultiLabelMaskGenerator::~MultiLabelMaskGenerator ( )

protecteddefault

Member Function Documentation

◆ DoGetMask()

Image::ConstPointer mitk::MultiLabelMaskGenerator::DoGetMask ( unsigned int maskID )

overrideprotectedvirtual

Must be overridden by derived classes to generate the requested mask.

Parameters

[in] maskID Parameter indicating which mask should be returned.

Returns: The generated mask image.

Implements mitk::MaskGenerator.

◆ GetNumberOfMasks()

unsigned int mitk::MultiLabelMaskGenerator::GetNumberOfMasks ( ) const

overridevirtual

Get the number of masks (one per label in the segmentation).

Returns: Number of labels in the multi-label segmentation.

Implements mitk::MaskGenerator.

◆ mitkClassMacro()

mitk::MultiLabelMaskGenerator::mitkClassMacro	(	MultiLabelMaskGenerator	,
		MaskGenerator
	)

Standard Self typedef

◆ New()

static Pointer mitk::MultiLabelMaskGenerator::New ( )

static

◆ SetMultiLabelSegmentation()

virtual void mitk::MultiLabelMaskGenerator::SetMultiLabelSegmentation ( const MultiLabelSegmentation * _arg )

virtual

Set the multi-label segmentation from which to generate masks.

Parameters

[in] _arg Const pointer to the MultiLabelSegmentation.

The documentation for this class was generated from the following file:

mitkMultiLabelMaskGenerator.h
