mitk::IgnorePixelMaskGenerator Class Reference

Generates a binary mask that excludes pixels with a specified intensity value. More...

#include <mitkIgnorePixelMaskGenerator.h>

Inheritance diagram for mitk::IgnorePixelMaskGenerator:

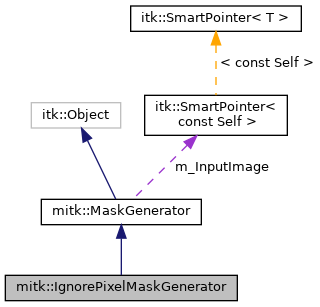

Collaboration diagram for mitk::IgnorePixelMaskGenerator:

Public Types
typedef IgnorePixelMaskGenerator	Self
typedef MaskGenerator	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef double	RealType
	Real-valued type used for the pixel value to ignore. More...

Public Member Functions
virtual const char *	GetClassName () const
void	SetIgnoredPixelValue (RealType pixelValue)
	Set the pixel value to be excluded from the mask. More...
unsigned int	GetNumberOfMasks () const override
	Returns the number of masks this generator provides. More...
Public Member Functions inherited from mitk::MaskGenerator
	mitkClassMacroItkParent (MaskGenerator, itk::Object)
mitk::Image::ConstPointer	GetMask (unsigned int maskID)
	Get the generated mask image. More...
virtual mitk::Image::ConstPointer	GetReferenceImage ()
	Get the reference image associated with this mask generator. More...
virtual void	SetInputImage (const mitk::Image *_arg)
	Set the input image for the mask generator. More...
virtual void	SetTimePoint (TimePointType _arg)
	Set the time point for which to generate the mask. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	IgnorePixelMaskGenerator ()
	~IgnorePixelMaskGenerator ()=default
mitk::Image::ConstPointer	DoGetMask (unsigned int maskID) override
	Must be overridden by derived classes to generate the requested mask. More...
template<typename TPixel , unsigned int VImageDimension>
void	InternalCalculateMask (const itk::Image< TPixel, VImageDimension > *image)
Protected Member Functions inherited from mitk::MaskGenerator
	MaskGenerator ()

Additional Inherited Members
Protected Attributes inherited from mitk::MaskGenerator
TimePointType	m_TimePoint
mitk::Image::ConstPointer	m_InputImage

Detailed Description

Generates a binary mask that excludes pixels with a specified intensity value.

This mask generator creates a mask where every pixel is 1 except for those pixels in the input image whose value matches the ignored pixel value, which are set to 0. This is commonly used to exclude background or zero-valued voxels from statistics calculations.

Precondition

An input image must be set via SetInputImage() before calling GetMask().

See also

MaskGenerator

ImageStatisticsCalculator

Definition at line 38 of file mitkIgnorePixelMaskGenerator.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer< const Self > mitk::IgnorePixelMaskGenerator::ConstPointer

Definition at line 45 of file mitkIgnorePixelMaskGenerator.h.

Pointer

typedef itk::SmartPointer< Self > mitk::IgnorePixelMaskGenerator::Pointer

Definition at line 44 of file mitkIgnorePixelMaskGenerator.h.

RealType

typedef double mitk::IgnorePixelMaskGenerator::RealType

Real-valued type used for the pixel value to ignore.

Definition at line 47 of file mitkIgnorePixelMaskGenerator.h.

Self

typedef IgnorePixelMaskGenerator mitk::IgnorePixelMaskGenerator::Self

Standard Self typedef

Definition at line 42 of file mitkIgnorePixelMaskGenerator.h.

Superclass

typedef MaskGenerator mitk::IgnorePixelMaskGenerator::Superclass

Definition at line 43 of file mitkIgnorePixelMaskGenerator.h.

Constructor & Destructor Documentation

IgnorePixelMaskGenerator()

mitk::IgnorePixelMaskGenerator::IgnorePixelMaskGenerator ( )

inlineprotected

Definition at line 70 of file mitkIgnorePixelMaskGenerator.h.

~IgnorePixelMaskGenerator()

mitk::IgnorePixelMaskGenerator::~IgnorePixelMaskGenerator ( )

protecteddefault

Member Function Documentation

DoGetMask()

mitk::Image::ConstPointer mitk::IgnorePixelMaskGenerator::DoGetMask ( unsigned int  maskID )

overrideprotectedvirtual

Must be overridden by derived classes to generate the requested mask.

Parameters

[in]

maskID

Parameter indicating which mask should be returned.

Returns

The generated mask image.

Implements mitk::MaskGenerator.

GetClassName()

virtual const char* mitk::IgnorePixelMaskGenerator::GetClassName ( ) const

virtual

Runtime information support.

GetNumberOfMasks()

unsigned int mitk::IgnorePixelMaskGenerator::GetNumberOfMasks ( ) const

overridevirtual

Returns the number of masks this generator provides.

Returns

Always returns 1.

Implements mitk::MaskGenerator.

InternalCalculateMask()

template<typename TPixel , unsigned int VImageDimension>

void mitk::IgnorePixelMaskGenerator::InternalCalculateMask ( const itk::Image< TPixel, VImageDimension > *  image )

protected

New()

static Pointer mitk::IgnorePixelMaskGenerator::New ( )

static

Method for creation through the object factory.

SetIgnoredPixelValue()

void mitk::IgnorePixelMaskGenerator::SetIgnoredPixelValue

(

RealType

pixelValue

)

Set the pixel value to be excluded from the mask.

Pixels in the input image with this value will be set to 0 in the generated mask; all other pixels will be set to 1.

Parameters

[in]

pixelValue

The intensity value to ignore.

---

The documentation for this class was generated from the following file:

• mitkIgnorePixelMaskGenerator.h
