Records the reasons why a DICOM volume was split during loading. More...

#include <mitkIOVolumeSplitReason.h>

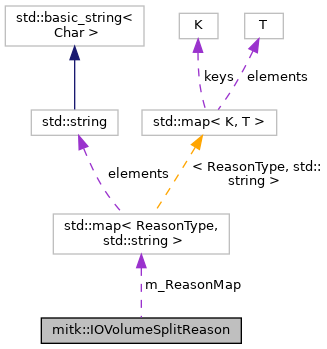

Collaboration diagram for mitk::IOVolumeSplitReason:

[legend]

Public Types
enum class	ReasonType { Unknown , ValueSplitDifference , ValueSortDistance , ImagePostionMissing , OverlappingSlices , GantryTiltDifference , SliceDistanceInconsistency , MissingSlices }
	Enumeration of possible reasons for splitting a DICOM volume. More...

using	Self = IOVolumeSplitReason

using	Pointer = std::shared_ptr< IOVolumeSplitReason >
	Shared pointer type. More...

using	ConstPointer = std::shared_ptr< const IOVolumeSplitReason >
	Shared pointer to const type. More...

Public Member Functions
void	AddReason (ReasonType type, const std::string &detail="")
	Add a split reason with optional detail text. More...

void	RemoveReason (ReasonType type)
	Remove a previously added split reason. More...

bool	HasReasons () const
	Check whether any split reasons have been recorded. More...

bool	HasReason (ReasonType type) const
	Check whether a specific reason type has been recorded. More...

std::string	GetReasonDetails (ReasonType type) const
	Get the detail string for a specific reason type. More...

Pointer	ExtendReason (ConstPointer otherReason) const
	Clone this instance and extend it with reasons from another instance. More...

Pointer	Clone () const
	Create a deep copy of this instance. More...

Static Public Member Functions
static nlohmann::json	ToJSON (ConstPointer reason)
	Serialize a split reason to JSON. More...

static Pointer	FromJSON (const nlohmann::json &j)
	Deserialize a split reason from JSON. More...

static std::string	TypeToString (ReasonType reasonType)
	Convert a ReasonType to its string representation. More...

static IOVolumeSplitReason::ReasonType	StringToType (const std::string &reasonStr)
	Convert a string representation to a ReasonType. More...

static Pointer	New ()
	Create a new, empty IOVolumeSplitReason instance. More...

Protected Types
using	ReasonMapType = std::map< ReasonType, std::string >
	Map storing reason types and their associated detail strings. More...

Protected Attributes
ReasonMapType	m_ReasonMap

Detailed Description

Records the reasons why a DICOM volume was split during loading.

When DICOM series are loaded, the reader may need to split the input files into multiple volumes. This class captures the specific reasons for each split, along with optional detail strings providing additional context (e.g., the detected distance inconsistency or number of missing slices).

Reasons are stored as a map from ReasonType to a detail string and can be serialized to/from JSON for persistence.

See also: IOVolumeSplitReason::ReasonType

Definition at line 41 of file mitkIOVolumeSplitReason.h.

Member Typedef Documentation

◆ ConstPointer

using mitk::IOVolumeSplitReason::ConstPointer = std::shared_ptr<const IOVolumeSplitReason>

Shared pointer to const type.

Definition at line 48 of file mitkIOVolumeSplitReason.h.

◆ Pointer

using mitk::IOVolumeSplitReason::Pointer = std::shared_ptr<IOVolumeSplitReason>

Shared pointer type.

Definition at line 46 of file mitkIOVolumeSplitReason.h.

◆ ReasonMapType

using mitk::IOVolumeSplitReason::ReasonMapType = std::map<ReasonType, std::string>

protected

Map storing reason types and their associated detail strings.

Definition at line 157 of file mitkIOVolumeSplitReason.h.

◆ Self

using mitk::IOVolumeSplitReason::Self = IOVolumeSplitReason

Definition at line 44 of file mitkIOVolumeSplitReason.h.

Member Enumeration Documentation

◆ ReasonType

enum mitk::IOVolumeSplitReason::ReasonType

strong

Enumeration of possible reasons for splitting a DICOM volume.

Enumerator
Unknown	Unknown or unclassified reason.
ValueSplitDifference	Split due to different values in splitting-relevant DICOM tags.
ValueSortDistance	Split due to value distance of sort criterion being too large for relevant DICOM tag(s).
ImagePostionMissing	Split because the image position tag was missing in one of the compared files.
OverlappingSlices	Split because at least two input files overlap in world coordinate space.
GantryTiltDifference	Split because the gantry tilts of at least two input files differ.
SliceDistanceInconsistency	Split because slice distances are inconsistent (heterogeneous z-spacing or missing slices). Details contain the detected inconsistency value.
MissingSlices	Split due to missing slices (a sub-class of SliceDistanceInconsistency). Details contain the assumed number of missing slices.

Definition at line 53 of file mitkIOVolumeSplitReason.h.

Member Function Documentation

◆ AddReason()

void mitk::IOVolumeSplitReason::AddReason	(	ReasonType	type,
		const std::string &	detail = `""`
	)

Add a split reason with optional detail text.

Parameters

[in]	type	The reason type to add.
[in]	detail	Optional detail string providing context (e.g., numeric values).

If the reason type already exists, its detail is overwritten.

◆ Clone()

Pointer mitk::IOVolumeSplitReason::Clone ( ) const

Create a deep copy of this instance.

Returns: A new IOVolumeSplitReason with identical contents.

◆ ExtendReason()

Pointer mitk::IOVolumeSplitReason::ExtendReason ( ConstPointer otherReason ) const

Clone this instance and extend it with reasons from another instance.

Creates a copy of this object, then adds any reason types from otherReason that are not already present in this instance. Existing reason types are not overwritten.

Parameters

[in] otherReason The other instance whose reasons to merge.

Returns: A new IOVolumeSplitReason containing the merged reasons.

Precondition: otherReason must point to a valid instance.

◆ FromJSON()

static Pointer mitk::IOVolumeSplitReason::FromJSON ( const nlohmann::json & j )

static

Deserialize a split reason from JSON.

Parameters

[in] j The JSON value to parse.

Returns: A new IOVolumeSplitReason populated from the JSON.

◆ GetReasonDetails()

std::string mitk::IOVolumeSplitReason::GetReasonDetails ( ReasonType type ) const

Get the detail string for a specific reason type.

Parameters

[in] type The reason type to query.

Returns: The detail string associated with the reason.

Exceptions

mitk::Exception if the reason type is not present.

◆ HasReason()

bool mitk::IOVolumeSplitReason::HasReason ( ReasonType type ) const

Check whether a specific reason type has been recorded.

Parameters

[in] type The reason type to look for.

Returns: true if the given reason type is present.

◆ HasReasons()

bool mitk::IOVolumeSplitReason::HasReasons ( ) const

Check whether any split reasons have been recorded.

Returns: true if at least one reason is present.

◆ New()

static Pointer mitk::IOVolumeSplitReason::New ( )

static

Create a new, empty IOVolumeSplitReason instance.

Returns: A shared pointer to the new instance.

◆ RemoveReason()

void mitk::IOVolumeSplitReason::RemoveReason ( ReasonType type )

Remove a previously added split reason.

Parameters

[in] type The reason type to remove. No-op if not present.

◆ StringToType()

static IOVolumeSplitReason::ReasonType mitk::IOVolumeSplitReason::StringToType ( const std::string & reasonStr )

static

Convert a string representation to a ReasonType.

Parameters

[in] reasonStr The string identifier to parse.

Returns: The corresponding ReasonType, or ReasonType::Unknown if unrecognized.

Referenced by mitk::from_json().

◆ ToJSON()

static nlohmann::json mitk::IOVolumeSplitReason::ToJSON ( ConstPointer reason )

static

Serialize a split reason to JSON.

Parameters

[in] reason The instance to serialize (must not be nullptr).

Returns: A JSON array representing the reasons and their details.

Exceptions

mitk::Exception if reason is nullptr.

◆ TypeToString()

static std::string mitk::IOVolumeSplitReason::TypeToString ( ReasonType reasonType )

static

Convert a ReasonType to its string representation.

Parameters

[in] reasonType The reason type to convert.

Returns: The string identifier (e.g., "missing_slices", "overlapping_slices").

Referenced by mitk::to_json().

Member Data Documentation

◆ m_ReasonMap

ReasonMapType mitk::IOVolumeSplitReason::m_ReasonMap

protected

Definition at line 158 of file mitkIOVolumeSplitReason.h.

The documentation for this class was generated from the following file:

mitkIOVolumeSplitReason.h
