Internal class holding the mapper, actor, etc. for each of the 3 2D render windows. More...

#include <mitkDoseImageVtkMapper2D.h>

Inheritance diagram for mitk::DoseImageVtkMapper2D::LocalStorage:

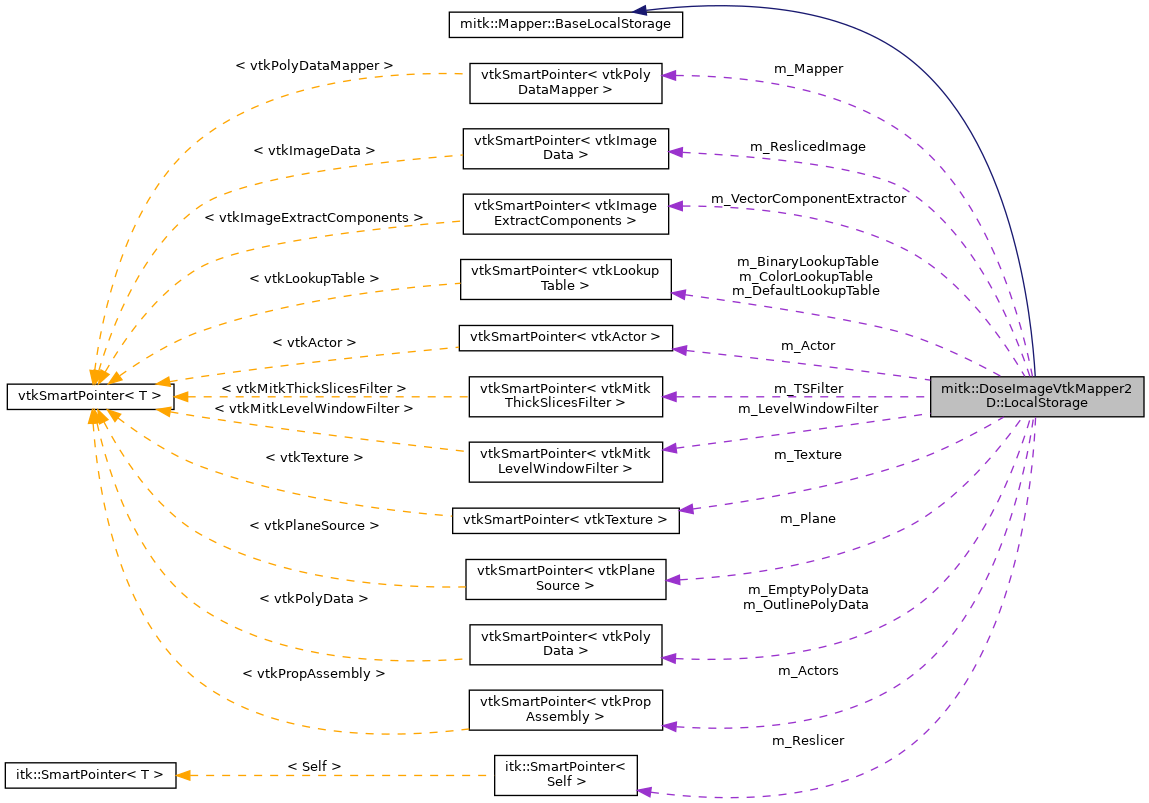

Collaboration diagram for mitk::DoseImageVtkMapper2D::LocalStorage:

[legend]

Public Member Functions
	LocalStorage ()
	Default constructor of the local storage. More...

	~LocalStorage () override
	Default deconstructor of the local storage. More...

Public Member Functions inherited from mitk::Mapper::BaseLocalStorage
	BaseLocalStorage ()=default

virtual	~BaseLocalStorage ()=default

	BaseLocalStorage (const BaseLocalStorage &)=delete

BaseLocalStorage &	operator= (const BaseLocalStorage &)=delete

bool	IsGenerateDataRequired (mitk::BaseRenderer renderer, mitk::Mapper mapper, mitk::DataNode *dataNode) const
	Check whether GenerateDataForRenderer() needs to be called. More...

void	UpdateGenerateDataTime ()
	Mark the stored data as up-to-date. More...

itk::TimeStamp &	GetLastGenerateDataTime ()
	Get a reference to the last-generate-data timestamp. More...

Public Attributes
vtkSmartPointer< vtkActor >	m_Actor
	Actor of a 2D render window. More...

vtkSmartPointer< vtkPropAssembly >	m_Actors

vtkSmartPointer< vtkPolyDataMapper >	m_Mapper
	Mapper of a 2D render window. More...

vtkSmartPointer< vtkImageExtractComponents >	m_VectorComponentExtractor

vtkSmartPointer< vtkImageData >	m_ReslicedImage
	Current slice of a 2D render window. More...

vtkSmartPointer< vtkPolyData >	m_EmptyPolyData
	Empty vtkPolyData that is set when rendering geometry does not intersect the image geometry. More...

vtkSmartPointer< vtkPlaneSource >	m_Plane
	Plane on which the slice is rendered as texture. More...

vtkSmartPointer< vtkTexture >	m_Texture
	The texture which is used to render the current slice. More...

vtkSmartPointer< vtkLookupTable >	m_DefaultLookupTable
	The lookuptables for colors and level window. More...

vtkSmartPointer< vtkLookupTable >	m_BinaryLookupTable

vtkSmartPointer< vtkLookupTable >	m_ColorLookupTable

mitk::ExtractSliceFilter::Pointer	m_Reslicer
	The actual reslicer (one per renderer) More...

vtkSmartPointer< vtkMitkThickSlicesFilter >	m_TSFilter
	Filter for thick slices. More...

vtkSmartPointer< vtkPolyData >	m_OutlinePolyData
	PolyData object containing all lines/points needed for outlining the contour. This container is used to save a computed contour for the next rendering execution. For instance, if you zoom or pann, there is no need to recompute the contour. More...

itk::TimeStamp	m_LastUpdateTime
	Timestamp of last update of stored data. More...

mitk::ScalarType *	m_mmPerPixel
	mmPerPixel relation between pixel and mm. (World spacing). More...

vtkSmartPointer< vtkMitkLevelWindowFilter >	m_LevelWindowFilter
	This filter is used to apply the level window to Grayvalue and RBG(A) images. More...

Additional Inherited Members
Protected Attributes inherited from mitk::Mapper::BaseLocalStorage
itk::TimeStamp	m_LastGenerateDataTime
	Timestamp of last update of stored data. More...

Detailed Description

Internal class holding the mapper, actor, etc. for each of the 3 2D render windows.

To render axial, coronal, and sagittal, the mapper is called three times. For performance reasons, the corresponding data for each view is saved in the internal helper class LocalStorage. This allows rendering n views with just 1 mitkMapper using n vtkMapper.

Definition at line 149 of file mitkDoseImageVtkMapper2D.h.

Constructor & Destructor Documentation

◆ LocalStorage()

mitk::DoseImageVtkMapper2D::LocalStorage::LocalStorage ( )

Default constructor of the local storage.

◆ ~LocalStorage()

mitk::DoseImageVtkMapper2D::LocalStorage::~LocalStorage ( )

override

Default deconstructor of the local storage.

Member Data Documentation

◆ m_Actor

vtkSmartPointer<vtkActor> mitk::DoseImageVtkMapper2D::LocalStorage::m_Actor

Actor of a 2D render window.

Definition at line 153 of file mitkDoseImageVtkMapper2D.h.

◆ m_Actors

vtkSmartPointer<vtkPropAssembly> mitk::DoseImageVtkMapper2D::LocalStorage::m_Actors

Definition at line 155 of file mitkDoseImageVtkMapper2D.h.

◆ m_BinaryLookupTable

vtkSmartPointer<vtkLookupTable> mitk::DoseImageVtkMapper2D::LocalStorage::m_BinaryLookupTable

Definition at line 175 of file mitkDoseImageVtkMapper2D.h.

◆ m_ColorLookupTable

vtkSmartPointer<vtkLookupTable> mitk::DoseImageVtkMapper2D::LocalStorage::m_ColorLookupTable

Definition at line 176 of file mitkDoseImageVtkMapper2D.h.

◆ m_DefaultLookupTable

vtkSmartPointer<vtkLookupTable> mitk::DoseImageVtkMapper2D::LocalStorage::m_DefaultLookupTable

The lookuptables for colors and level window.

Definition at line 174 of file mitkDoseImageVtkMapper2D.h.

◆ m_EmptyPolyData

vtkSmartPointer<vtkPolyData> mitk::DoseImageVtkMapper2D::LocalStorage::m_EmptyPolyData

Empty vtkPolyData that is set when rendering geometry does not intersect the image geometry.

Warning: This member variable is set to nullptr, if no image geometry is inside the plane geometry of the respective render window. Any user of this slice has to check whether it is set to nullptr!

Definition at line 168 of file mitkDoseImageVtkMapper2D.h.

◆ m_LastUpdateTime

itk::TimeStamp mitk::DoseImageVtkMapper2D::LocalStorage::m_LastUpdateTime

Timestamp of last update of stored data.

Definition at line 187 of file mitkDoseImageVtkMapper2D.h.

◆ m_LevelWindowFilter

vtkSmartPointer<vtkMitkLevelWindowFilter> mitk::DoseImageVtkMapper2D::LocalStorage::m_LevelWindowFilter

This filter is used to apply the level window to Grayvalue and RBG(A) images.

Definition at line 193 of file mitkDoseImageVtkMapper2D.h.

◆ m_Mapper

vtkSmartPointer<vtkPolyDataMapper> mitk::DoseImageVtkMapper2D::LocalStorage::m_Mapper

Mapper of a 2D render window.

Definition at line 157 of file mitkDoseImageVtkMapper2D.h.

◆ m_mmPerPixel

mitk::ScalarType* mitk::DoseImageVtkMapper2D::LocalStorage::m_mmPerPixel

mmPerPixel relation between pixel and mm. (World spacing).

Definition at line 190 of file mitkDoseImageVtkMapper2D.h.

◆ m_OutlinePolyData

vtkSmartPointer<vtkPolyData> mitk::DoseImageVtkMapper2D::LocalStorage::m_OutlinePolyData

PolyData object containing all lines/points needed for outlining the contour. This container is used to save a computed contour for the next rendering execution. For instance, if you zoom or pann, there is no need to recompute the contour.

Definition at line 184 of file mitkDoseImageVtkMapper2D.h.
