mitk::DICOMGenericTagCache Class Reference

Generic tag cache implementation using DICOMGenericImageFrameInfo. More...

#include <mitkDICOMGenericTagCache.h>

Inheritance diagram for mitk::DICOMGenericTagCache:

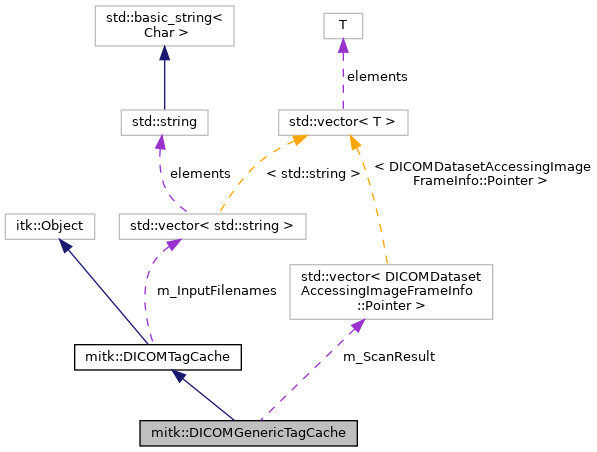

Collaboration diagram for mitk::DICOMGenericTagCache:

Public Member Functions
	mitkClassMacro (DICOMGenericTagCache, DICOMTagCache)
Pointer	Clone () const
DICOMDatasetFinding	GetTagValue (DICOMImageFrameInfo *frame, const DICOMTag &tag) const override
	Retrieve a tag value for a specific frame and tag. More...
FindingsListType	GetTagValue (DICOMImageFrameInfo *frame, const DICOMTagPath &path) const override
	Retrieve tag values for a specific frame and tag path. More...
DICOMDatasetAccessingImageFrameList	GetFrameInfoList () const override
	Retrieve the list of frame info objects from the cache. More...
void	AddFrameInfo (DICOMDatasetAccessingImageFrameInfo *info)
	Add a frame info object to the cache. More...
void	Reset ()
	Clear all cached frame info objects. More...
Public Member Functions inherited from mitk::DICOMTagCache
	mitkClassMacroItkParent (DICOMTagCache, itk::Object)
virtual void	SetInputFiles (const StringList &filenames)
	Define the list of files that were scanned to populate the cache. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	DICOMGenericTagCache ()
	~DICOMGenericTagCache () override
Protected Member Functions inherited from mitk::DICOMTagCache
	DICOMTagCache ()
	DICOMTagCache (const DICOMTagCache &)
	~DICOMTagCache () override

Protected Attributes
DICOMDatasetAccessingImageFrameList	m_ScanResult
Protected Attributes inherited from mitk::DICOMTagCache
StringList	m_InputFilenames

Additional Inherited Members
Public Types inherited from mitk::DICOMTagCache
typedef std::list< DICOMDatasetFinding >	FindingsListType
	A list of DICOMDatasetFinding instances. More...

Detailed Description

Generic tag cache implementation using DICOMGenericImageFrameInfo.

This cache implementation stores tag values in a simple in-memory map structure via DICOMGenericImageFrameInfo objects. It is used by DICOMDCMTKTagScanner for caching DCMTK-based scan results.

See also

DICOMTagCache, DICOMDCMTKTagScanner, DICOMGenericImageFrameInfo

Definition at line 32 of file mitkDICOMGenericTagCache.h.

Constructor & Destructor Documentation

DICOMGenericTagCache()

mitk::DICOMGenericTagCache::DICOMGenericTagCache ( )

protected

~DICOMGenericTagCache()

mitk::DICOMGenericTagCache::~DICOMGenericTagCache ( )

overrideprotected

Member Function Documentation

AddFrameInfo()

void mitk::DICOMGenericTagCache::AddFrameInfo

(

DICOMDatasetAccessingImageFrameInfo *

info

)

Add a frame info object to the cache.

Parameters

[in]

info

The DICOMDatasetAccessingImageFrameInfo to add.

Clone()

Pointer mitk::DICOMGenericTagCache::Clone

(

)

const

GetFrameInfoList()

DICOMDatasetAccessingImageFrameList mitk::DICOMGenericTagCache::GetFrameInfoList ( ) const

overridevirtual

Retrieve the list of frame info objects from the cache.

Returns

A list of DICOMDatasetAccessingImageFrameInfo smart pointers.

Implements mitk::DICOMTagCache.

GetTagValue() [1/2]

DICOMDatasetFinding mitk::DICOMGenericTagCache::GetTagValue ( DICOMImageFrameInfo *  frame, const DICOMTag &  tag  ) const

overridevirtual

Retrieve a tag value for a specific frame and tag.

Parameters

[in]	frame	The image frame to query.
[in]	tag	The DICOM tag to retrieve.

Returns

A DICOMDatasetFinding with the tag value if found.

Implements mitk::DICOMTagCache.

GetTagValue() [2/2]

FindingsListType mitk::DICOMGenericTagCache::GetTagValue ( DICOMImageFrameInfo *  frame, const DICOMTagPath &  path  ) const

overridevirtual

Retrieve tag values for a specific frame and tag path.

Parameters

[in]	frame	The image frame to query.
[in]	path	The DICOM tag path to retrieve.

Returns

A list of findings matching the given path.

Implements mitk::DICOMTagCache.

mitkClassMacro()

mitk::DICOMGenericTagCache::mitkClassMacro	(	DICOMGenericTagCache	,
		DICOMTagCache
	)

New()

static Pointer mitk::DICOMGenericTagCache::New ( )

static

Reset()

void mitk::DICOMGenericTagCache::Reset

(

)

Clear all cached frame info objects.

Member Data Documentation

m_ScanResult

DICOMDatasetAccessingImageFrameList mitk::DICOMGenericTagCache::m_ScanResult

protected

Definition at line 78 of file mitkDICOMGenericTagCache.h.

---

The documentation for this class was generated from the following file:

• mitkDICOMGenericTagCache.h
