Class used to identify (nested) attributes in a DICOM dataset. More...

#include <mitkDICOMTagPath.h>

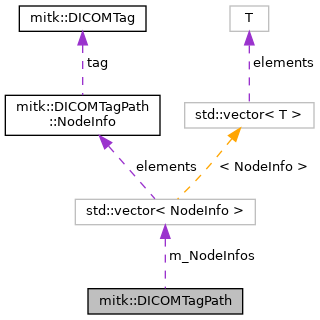

Collaboration diagram for mitk::DICOMTagPath:

[legend]

Classes
struct	NodeInfo
	Describes a single node within a DICOMTagPath. More...

Public Types
typedef int	ItemSelectionIndex

typedef std::vector< NodeInfo >	NodeInfoVectorType

typedef NodeInfoVectorType::size_type	PathIndexType

Public Member Functions
bool	IsEmpty () const

bool	IsExplicit () const

bool	HasItemSelectionWildcardsOnly () const

PathIndexType	Size () const

PathIndexType	AddNode (const NodeInfo &newNode)

const NodeInfo &	GetNode (const PathIndexType &index) const

NodeInfo &	GetNode (const PathIndexType &index)

NodeInfo &	GetFirstNode ()

const NodeInfo &	GetFirstNode () const

NodeInfo &	GetLastNode ()

const NodeInfo &	GetLastNode () const

const NodeInfoVectorType &	GetNodes () const
	Get the complete vector of node infos in this path. More...

std::string	ToStr () const
	Serialize this path to a string representation. More...

DICOMTagPath &	FromStr (const std::string &pathStr)
	Parse a string representation and set this path accordingly. More...

bool	operator== (const DICOMTagPath &path) const

bool	operator< (const DICOMTagPath &right) const

bool	Equals (const DICOMTagPath &path) const

DICOMTagPath &	operator= (const DICOMTagPath &path)

DICOMTagPath	operator+ (const DICOMTagPath &right) const

DICOMTagPath	operator+ (const std::string &pathStr) const

DICOMTagPath &	operator+= (const DICOMTagPath &right)

DICOMTagPath &	operator+= (const std::string &pathStr)

DICOMTagPath &	AddAnyElement ()
	Append a wildcard element node (AnyElement) to this path. More...

DICOMTagPath &	AddElement (unsigned int group, unsigned int element)
	Append a specific element node to this path. More...

DICOMTagPath &	AddAnySelection (unsigned int group, unsigned int element)
	Append a wildcard selection node (AnySelection) to this path. More...

DICOMTagPath &	AddSelection (unsigned int group, unsigned int element, ItemSelectionIndex index)
	Append a specific sequence selection node to this path. More...

	DICOMTagPath ()
	Default constructor, creates an empty path. More...

	DICOMTagPath (const DICOMTagPath &path)
	Copy constructor. More...

	DICOMTagPath (const DICOMTag &tag)
	Construct a single-element path from a DICOMTag. More...

	DICOMTagPath (unsigned int group, unsigned int element)
	Construct a single-element path from group and element numbers. More...

virtual	~DICOMTagPath ()

virtual void	Reset ()
	Clear all nodes from this path, making it empty. More...

Static Protected Member Functions
static bool	DICOMTagPathesMatch (const DICOMTagPath &left, const DICOMTagPath &right)

Protected Attributes
NodeInfoVectorType	m_NodeInfos

Detailed Description

Class used to identify (nested) attributes in a DICOM dataset.

In contrast to the class DICOMTag, which only specifies one specific tag, the tag path can identify nested attributes (like items in a DICOM sequence). In addition you may also specify wildcards for the selection index or complete elements of the path.

Note: If you want to keep the DICOMTagPath compatible to the DCMTK search path format, you may not use element wild cards (i.e. IsExplicit() or HasItemSelectionWildcardsOnly() must return true).

See also: DICOMTag, DICOMTagPathToPropertyName, PropertyNameToDICOMTagPath

Definition at line 40 of file mitkDICOMTagPath.h.

Member Typedef Documentation

◆ ItemSelectionIndex

typedef int mitk::DICOMTagPath::ItemSelectionIndex

Definition at line 43 of file mitkDICOMTagPath.h.

◆ NodeInfoVectorType

typedef std::vector<NodeInfo> mitk::DICOMTagPath::NodeInfoVectorType

Definition at line 88 of file mitkDICOMTagPath.h.

◆ PathIndexType

typedef NodeInfoVectorType::size_type mitk::DICOMTagPath::PathIndexType

Definition at line 89 of file mitkDICOMTagPath.h.

Constructor & Destructor Documentation

◆ DICOMTagPath() [1/4]

mitk::DICOMTagPath::DICOMTagPath ( )

Default constructor, creates an empty path.

◆ DICOMTagPath() [2/4]

mitk::DICOMTagPath::DICOMTagPath ( const DICOMTagPath & path )

Copy constructor.

◆ DICOMTagPath() [3/4]

mitk::DICOMTagPath::DICOMTagPath ( const DICOMTag & tag )

Construct a single-element path from a DICOMTag.

Parameters

[in] tag The DICOM tag to use as the single path node.

◆ DICOMTagPath() [4/4]

mitk::DICOMTagPath::DICOMTagPath	(	unsigned int	group,
		unsigned int	element
	)

explicit

Construct a single-element path from group and element numbers.

Parameters

[in]	group	The DICOM tag group number.
[in]	element	The DICOM tag element number.

◆ ~DICOMTagPath()

virtual mitk::DICOMTagPath::~DICOMTagPath ( )

virtual

Member Function Documentation

◆ AddAnyElement()

DICOMTagPath& mitk::DICOMTagPath::AddAnyElement ( )

Append a wildcard element node (AnyElement) to this path.

Returns: Reference to this path.

◆ AddAnySelection()

DICOMTagPath& mitk::DICOMTagPath::AddAnySelection	(	unsigned int	group,
		unsigned int	element
	)

Append a wildcard selection node (AnySelection) to this path.

Parameters

[in]	group	The DICOM tag group number.
[in]	element	The DICOM tag element number.

Returns: Reference to this path.

◆ AddElement()

DICOMTagPath& mitk::DICOMTagPath::AddElement	(	unsigned int	group,
		unsigned int	element
	)

Append a specific element node to this path.

Parameters

[in]	group	The DICOM tag group number.
[in]	element	The DICOM tag element number.

Returns: Reference to this path.

◆ AddNode()

PathIndexType mitk::DICOMTagPath::AddNode ( const NodeInfo & newNode )

Adds a new node to the end of the path.

Parameters

[in] newNode Reference to the node that should be added.

Returns: Returns the index of the newly added node.

◆ AddSelection()

DICOMTagPath& mitk::DICOMTagPath::AddSelection	(	unsigned int	group,
		unsigned int	element,
		ItemSelectionIndex	index
	)

Append a specific sequence selection node to this path.

Parameters

[in]	group	The DICOM tag group number.
[in]	element	The DICOM tag element number.
[in]	index	The item selection index within the sequence.

Returns: Reference to this path.

◆ DICOMTagPathesMatch()

static bool mitk::DICOMTagPath::DICOMTagPathesMatch	(	const DICOMTagPath &	left,
		const DICOMTagPath &	right
	)

staticprotected

◆ Equals()

bool mitk::DICOMTagPath::Equals ( const DICOMTagPath & path ) const

Checks if to DICOMTagPathes are specify the same node. Hence all wildcards will be processed.
E.G.: "item1/child1/grandChild2" == ".//item1//grandChild2" is true.

Remarks: If you want to check if two paths are "truly" equal and not only equal in terms of pointing to the same node, use the member function Equals()

◆ FromStr()

DICOMTagPath& mitk::DICOMTagPath::FromStr ( const std::string & pathStr )

Parse a string representation and set this path accordingly.

Parameters

[in] pathStr The string to parse.

Returns: Reference to this path after parsing.

See also: ToStr

◆ GetFirstNode() [1/2]

NodeInfo& mitk::DICOMTagPath::GetFirstNode ( )

Function returns the node info of the first path node within the DICOMTagPath.

Precondition: DICOMTagPath must not be empty.

Returns: Info of the first path node. If the path is empty, an InvalidPathNode exception will be thrown.

◆ GetFirstNode() [2/2]

const NodeInfo& mitk::DICOMTagPath::GetFirstNode ( ) const

Function returns the node info of the first path node within the DICOMTagPath.

Precondition: DICOMTagPath must not be empty.

Returns: Info of the first path node. If the path is empty, an InvalidPathNode exception will be thrown.

◆ GetLastNode() [1/2]

NodeInfo& mitk::DICOMTagPath::GetLastNode ( )

Function returns the node info of the last path node within the DICOMTagPath.

Precondition: DICOMTagPath must not be empty.

Returns: Info of the first path node. If the path is empty, an InvalidPathNode exception will be thrown.

◆ GetLastNode() [2/2]

const NodeInfo& mitk::DICOMTagPath::GetLastNode ( ) const

Function returns the node info of the last path node within the DICOMTagPath.

Precondition: DICOMTagPath must not be empty.

Returns: Info of the first path node. If the path is empty, an InvalidPathNode exception will be thrown.

◆ GetNode() [1/2]

NodeInfo& mitk::DICOMTagPath::GetNode ( const PathIndexType & index )

Function returns the node info of a path node specified by the index within the DICOMTagPath.

Precondition: Passed index must not be out of bound.

Parameters

[in] index Index of the node whose info should be retrieved.

Returns: Info of the specified path node. If the index is out of bound an InvalidPathNode exception will be thrown.

◆ GetNode() [2/2]

const NodeInfo& mitk::DICOMTagPath::GetNode ( const PathIndexType & index ) const

Function returns the node info of a path node specified by the index within the DICOMTagPath.

Precondition: Passed index must not be out of bound.

Parameters

[in] index Index of the node whose info should be retrieved.

Returns: Info of the specified path node. If the index is out of bound an InvalidPathNode exception will be thrown.

◆ GetNodes()

const NodeInfoVectorType& mitk::DICOMTagPath::GetNodes ( ) const

Get the complete vector of node infos in this path.

Returns: Const reference to the internal node info vector.

◆ HasItemSelectionWildcardsOnly()

bool mitk::DICOMTagPath::HasItemSelectionWildcardsOnly ( ) const

Returns if the path has any nodes with item selection wild cards ([*]).

◆ IsEmpty()

bool mitk::DICOMTagPath::IsEmpty ( ) const

Returns if the DICOMTagPath is empty.

◆ IsExplicit()

bool mitk::DICOMTagPath::IsExplicit ( ) const

Returns if the path is explicit (has no wildcards).

◆ operator+() [1/2]

DICOMTagPath mitk::DICOMTagPath::operator+ ( const DICOMTagPath & right ) const

Concatenates two DICOM tag paths.

Parameters

[in] right The path to append to this path.

Returns: A new DICOMTagPath containing all nodes from both paths.

◆ operator+() [2/2]

DICOMTagPath mitk::DICOMTagPath::operator+ ( const std::string & pathStr ) const

Concatenates two DICOM tag paths.

Parameters

[in] pathStr The path to append to this path.

Returns: A new DICOMTagPath containing all nodes from both paths.

◆ operator+=() [1/2]

DICOMTagPath& mitk::DICOMTagPath::operator+= ( const DICOMTagPath & right )

Appends another path to this path.

Parameters

[in] right The path to append.

Returns: Reference to this path.

◆ operator+=() [2/2]

DICOMTagPath& mitk::DICOMTagPath::operator+= ( const std::string & pathStr )

Appends a string representation of a path to this path.

Parameters

[in] pathStr String representation of a path to append.

Returns: Reference to this path.

◆ operator<()

bool mitk::DICOMTagPath::operator< ( const DICOMTagPath & right ) const

Operation equals like comparing the ToStr() results with operator <.

◆ operator=()

DICOMTagPath& mitk::DICOMTagPath::operator= ( const DICOMTagPath & path )

◆ operator==()

bool mitk::DICOMTagPath::operator== ( const DICOMTagPath & path ) const

Compares two DICOMTagPaths for real equality. So its a string compare of their string conversion

◆ Reset()

virtual void mitk::DICOMTagPath::Reset ( )

virtual

Clear all nodes from this path, making it empty.

◆ Size()

PathIndexType mitk::DICOMTagPath::Size ( ) const

Number of path nodes the DICOMTagPath contains.

◆ ToStr()

std::string mitk::DICOMTagPath::ToStr ( ) const

Serialize this path to a string representation.

Returns: A string representation of this DICOMTagPath.

See also: FromStr

Member Data Documentation

◆ m_NodeInfos

NodeInfoVectorType mitk::DICOMTagPath::m_NodeInfos

protected

Definition at line 253 of file mitkDICOMTagPath.h.

The documentation for this class was generated from the following file:

mitkDICOMTagPath.h

Classes

Public Types

Public Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ItemSelectionIndex

◆ NodeInfoVectorType

◆ PathIndexType

Constructor & Destructor Documentation

◆ DICOMTagPath() [1/4]

◆ DICOMTagPath() [2/4]

◆ DICOMTagPath() [3/4]

◆ DICOMTagPath() [4/4]

◆ ~DICOMTagPath()

Member Function Documentation

◆ AddAnyElement()

◆ AddAnySelection()

◆ AddElement()

◆ AddNode()

◆ AddSelection()

◆ DICOMTagPathesMatch()

◆ Equals()

◆ FromStr()

◆ GetFirstNode() [1/2]

◆ GetFirstNode() [2/2]

◆ GetLastNode() [1/2]

◆ GetLastNode() [2/2]

◆ GetNode() [1/2]

◆ GetNode() [2/2]

◆ GetNodes()

◆ HasItemSelectionWildcardsOnly()

◆ IsEmpty()

◆ IsExplicit()

◆ operator+() [1/2]

◆ operator+() [2/2]

◆ operator+=() [1/2]

◆ operator+=() [2/2]

◆ operator<()

◆ operator=()

◆ operator==()

◆ Reset()

◆ Size()

◆ ToStr()

Member Data Documentation

◆ m_NodeInfos
