mitk::DICOMGDCMTagCache Class Reference

Tag cache implementation used by the DICOMGDCMTagScanner. More...

#include <mitkDICOMGDCMTagCache.h>

Inheritance diagram for mitk::DICOMGDCMTagCache:

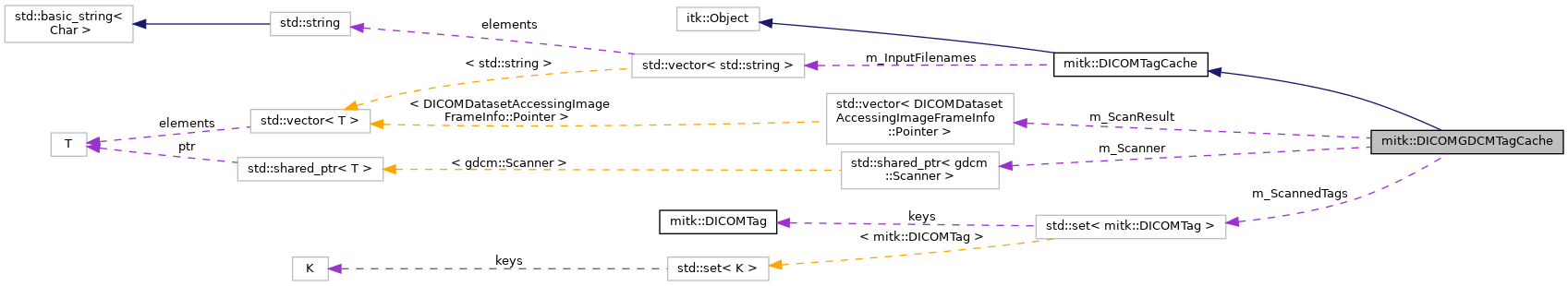

Collaboration diagram for mitk::DICOMGDCMTagCache:

Public Member Functions
	mitkClassMacro (DICOMGDCMTagCache, DICOMTagCache)
Pointer	Clone () const
DICOMDatasetFinding	GetTagValue (DICOMImageFrameInfo *frame, const DICOMTag &tag) const override
	Retrieve a tag value for a specific frame and tag. More...
FindingsListType	GetTagValue (DICOMImageFrameInfo *frame, const DICOMTagPath &path) const override
	Retrieve tag values for a specific frame and tag path. More...
DICOMDatasetAccessingImageFrameList	GetFrameInfoList () const override
	Retrieve the list of frame info objects from the scan result. More...
void	InitCache (const std::set< DICOMTag > &scannedTags, const std::shared_ptr< gdcm::Scanner > &scanner, const StringList &inputFiles)
	Initialize the cache with scan results from a gdcm::Scanner. More...
const gdcm::Scanner &	GetScanner () const
	Get a const reference to the underlying gdcm::Scanner. More...
Public Member Functions inherited from mitk::DICOMTagCache
	mitkClassMacroItkParent (DICOMTagCache, itk::Object)
virtual void	SetInputFiles (const StringList &filenames)
	Define the list of files that were scanned to populate the cache. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	DICOMGDCMTagCache ()
	~DICOMGDCMTagCache () override
Protected Member Functions inherited from mitk::DICOMTagCache
	DICOMTagCache ()
	DICOMTagCache (const DICOMTagCache &)
	~DICOMTagCache () override

Protected Attributes
std::set< DICOMTag >	m_ScannedTags
std::shared_ptr< gdcm::Scanner >	m_Scanner
DICOMDatasetAccessingImageFrameList	m_ScanResult
Protected Attributes inherited from mitk::DICOMTagCache
StringList	m_InputFilenames

Additional Inherited Members
Public Types inherited from mitk::DICOMTagCache
typedef std::list< DICOMDatasetFinding >	FindingsListType
	A list of DICOMDatasetFinding instances. More...

Detailed Description

Tag cache implementation used by the DICOMGDCMTagScanner.

Definition at line 30 of file mitkDICOMGDCMTagCache.h.

Constructor & Destructor Documentation

DICOMGDCMTagCache()

mitk::DICOMGDCMTagCache::DICOMGDCMTagCache ( )

protected

~DICOMGDCMTagCache()

mitk::DICOMGDCMTagCache::~DICOMGDCMTagCache ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::DICOMGDCMTagCache::Clone

(

)

const

GetFrameInfoList()

DICOMDatasetAccessingImageFrameList mitk::DICOMGDCMTagCache::GetFrameInfoList ( ) const

overridevirtual

Retrieve the list of frame info objects from the scan result.

Returns

A list of DICOMDatasetAccessingImageFrameInfo smart pointers.

Implements mitk::DICOMTagCache.

GetScanner()

const gdcm::Scanner& mitk::DICOMGDCMTagCache::GetScanner

(

)

const

Get a const reference to the underlying gdcm::Scanner.

Returns

Const reference to the GDCM scanner.

GetTagValue() [1/2]

DICOMDatasetFinding mitk::DICOMGDCMTagCache::GetTagValue ( DICOMImageFrameInfo *  frame, const DICOMTag &  tag  ) const

overridevirtual

Retrieve a tag value for a specific frame and tag.

Parameters

[in]	frame	The image frame to query.
[in]	tag	The DICOM tag to retrieve.

Returns

A DICOMDatasetFinding with the tag value if found.

Exceptions

std::invalid_argument

if the frame or tag was not part of the scan.

Implements mitk::DICOMTagCache.

GetTagValue() [2/2]

FindingsListType mitk::DICOMGDCMTagCache::GetTagValue ( DICOMImageFrameInfo *  frame, const DICOMTagPath &  path  ) const

overridevirtual

Retrieve tag values for a specific frame and tag path.

Only supports explicit single-element paths (direct tag lookups).

Parameters

[in]	frame	The image frame to query.
[in]	path	The DICOM tag path to retrieve.

Returns

A list of findings matching the given path.

Implements mitk::DICOMTagCache.

InitCache()

void mitk::DICOMGDCMTagCache::InitCache	(	const std::set< DICOMTag > &	scannedTags,
		const std::shared_ptr< gdcm::Scanner > &	scanner,
		const StringList &	inputFiles
	)

Initialize the cache with scan results from a gdcm::Scanner.

Parameters

[in]	scannedTags	The set of tags that were scanned.
[in]	scanner	Shared pointer to the gdcm::Scanner containing the results.
[in]	inputFiles	The list of input file paths that were scanned.

mitkClassMacro()

mitk::DICOMGDCMTagCache::mitkClassMacro	(	DICOMGDCMTagCache	,
		DICOMTagCache
	)

New()

static Pointer mitk::DICOMGDCMTagCache::New ( )

static

Member Data Documentation

m_ScannedTags

std::set<DICOMTag> mitk::DICOMGDCMTagCache::m_ScannedTags

protected

Definition at line 83 of file mitkDICOMGDCMTagCache.h.

m_Scanner

std::shared_ptr<gdcm::Scanner> mitk::DICOMGDCMTagCache::m_Scanner

protected

Definition at line 85 of file mitkDICOMGDCMTagCache.h.

m_ScanResult

DICOMDatasetAccessingImageFrameList mitk::DICOMGDCMTagCache::m_ScanResult

protected

Definition at line 87 of file mitkDICOMGDCMTagCache.h.

---

The documentation for this class was generated from the following file:

• mitkDICOMGDCMTagCache.h
