mitk::DICOMGDCMImageFrameInfo Class Reference

The dataset access implementation for DICOMITKSeriesGDCMReader, based on GDCM. More...

#include <mitkDICOMGDCMImageFrameInfo.h>

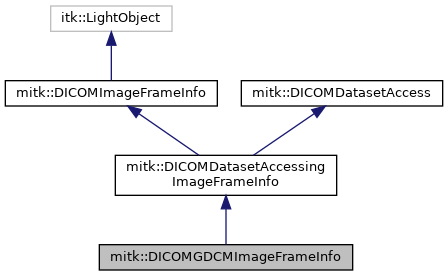

Inheritance diagram for mitk::DICOMGDCMImageFrameInfo:

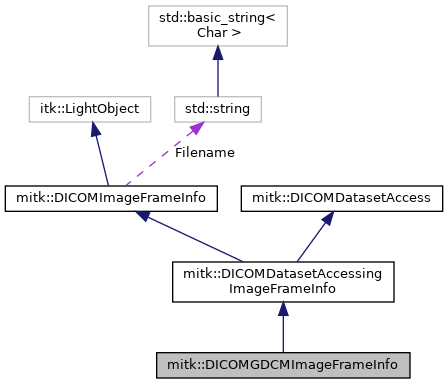

Collaboration diagram for mitk::DICOMGDCMImageFrameInfo:

Public Member Functions
	mitkClassMacro (DICOMGDCMImageFrameInfo, DICOMDatasetAccessingImageFrameInfo)
	mitkNewMacro1Param (DICOMGDCMImageFrameInfo, const std::string &)
	mitkNewMacro2Param (DICOMGDCMImageFrameInfo, const std::string &, unsigned int)
	mitkNewMacro1Param (DICOMGDCMImageFrameInfo, const DICOMImageFrameInfo::Pointer &)
	mitkNewMacro2Param (DICOMGDCMImageFrameInfo, const DICOMImageFrameInfo::Pointer &, gdcm::Scanner::TagToValue const &)
	~DICOMGDCMImageFrameInfo () override
DICOMDatasetFinding	GetTagValueAsString (const DICOMTag &tag) const override
	Retrieve a tag value as a string from the GDCM scanner results. More...
FindingsListType	GetTagValueAsString (const DICOMTagPath &path) const override
	Retrieve tag values as strings for a DICOM tag path from the GDCM scanner. More...
std::string	GetFilenameIfAvailable () const override
	Return the filename of this frame. More...
Public Member Functions inherited from mitk::DICOMDatasetAccessingImageFrameInfo
	mitkClassMacro (DICOMDatasetAccessingImageFrameInfo, DICOMImageFrameInfo)
Public Member Functions inherited from mitk::DICOMImageFrameInfo
	mitkClassMacroItkParent (DICOMImageFrameInfo, itk::LightObject)
	mitkNewMacro1Param (DICOMImageFrameInfo, const std::string &)
	mitkNewMacro2Param (DICOMImageFrameInfo, const std::string &, unsigned int)
bool	operator== (const DICOMImageFrameInfo &other) const
	Equality comparison based on filename and frame number. More...
Public Member Functions inherited from mitk::DICOMDatasetAccess
virtual	~DICOMDatasetAccess ()

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::DICOMImageFrameInfo
static Pointer	New ()

Protected Member Functions
	DICOMGDCMImageFrameInfo (const DICOMImageFrameInfo::Pointer &frameinfo)
	DICOMGDCMImageFrameInfo (const DICOMImageFrameInfo::Pointer &frameinfo, gdcm::Scanner::TagToValue const &tagToValueMapping)
	DICOMGDCMImageFrameInfo (const std::string &filename="", unsigned int frameNo=0)
Protected Member Functions inherited from mitk::DICOMDatasetAccessingImageFrameInfo
	DICOMDatasetAccessingImageFrameInfo (const std::string &filename="", unsigned int frameNo=0)
	~DICOMDatasetAccessingImageFrameInfo () override
Protected Member Functions inherited from mitk::DICOMImageFrameInfo
	DICOMImageFrameInfo (const std::string &filename="", unsigned int frameNo=0)

Protected Attributes
const gdcm::Scanner::TagToValue	m_TagForValue

Additional Inherited Members
Public Types inherited from mitk::DICOMDatasetAccess
typedef std::list< DICOMDatasetFinding >	FindingsListType
	A list of DICOMDatasetFinding instances. More...
Public Attributes inherited from mitk::DICOMImageFrameInfo
const std::string	Filename
	Absolute filename of the DICOM file. More...
const unsigned int	FrameNo
	Frame number within the file, starting with 0. More...

Detailed Description

The dataset access implementation for DICOMITKSeriesGDCMReader, based on GDCM.

This class combines a DICOMImageFrameInfo object with the scanning results from gdcm::Scanner. The scanning results will be used to implement the tag access methods of DICOMDatasetAccess.

Definition at line 30 of file mitkDICOMGDCMImageFrameInfo.h.

Constructor & Destructor Documentation

~DICOMGDCMImageFrameInfo()

mitk::DICOMGDCMImageFrameInfo::~DICOMGDCMImageFrameInfo ( )

override

DICOMGDCMImageFrameInfo() [1/3]

mitk::DICOMGDCMImageFrameInfo::DICOMGDCMImageFrameInfo ( const DICOMImageFrameInfo::Pointer &  frameinfo )

explicitprotected

DICOMGDCMImageFrameInfo() [2/3]

mitk::DICOMGDCMImageFrameInfo::DICOMGDCMImageFrameInfo ( const DICOMImageFrameInfo::Pointer &  frameinfo, gdcm::Scanner::TagToValue const &  tagToValueMapping  )

protected

DICOMGDCMImageFrameInfo() [3/3]

mitk::DICOMGDCMImageFrameInfo::DICOMGDCMImageFrameInfo ( const std::string &  filename = "", unsigned int  frameNo = 0  )

protected

Member Function Documentation

GetFilenameIfAvailable()

std::string mitk::DICOMGDCMImageFrameInfo::GetFilenameIfAvailable ( ) const

overridevirtual

Return the filename of this frame.

Returns

The absolute filename of this DICOM frame.

Implements mitk::DICOMDatasetAccess.

GetTagValueAsString() [1/2]

DICOMDatasetFinding mitk::DICOMGDCMImageFrameInfo::GetTagValueAsString ( const DICOMTag &  tag ) const

overridevirtual

Retrieve a tag value as a string from the GDCM scanner results.

Parameters

[in]

tag

The DICOM tag to query.

Returns

A DICOMDatasetFinding with the value if found.

Implements mitk::DICOMDatasetAccess.

GetTagValueAsString() [2/2]

FindingsListType mitk::DICOMGDCMImageFrameInfo::GetTagValueAsString ( const DICOMTagPath &  path ) const

overridevirtual

Retrieve tag values as strings for a DICOM tag path from the GDCM scanner.

Parameters

[in]

path

The tag path to query.

Returns

A list of findings matching the path.

Implements mitk::DICOMDatasetAccess.

mitkClassMacro()

mitk::DICOMGDCMImageFrameInfo::mitkClassMacro	(	DICOMGDCMImageFrameInfo	,
		DICOMDatasetAccessingImageFrameInfo
	)

mitkNewMacro1Param() [1/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro1Param	(	DICOMGDCMImageFrameInfo	,
		const DICOMImageFrameInfo::Pointer &
	)

mitkNewMacro1Param() [2/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro1Param	(	DICOMGDCMImageFrameInfo	,
		const std::string &
	)

mitkNewMacro2Param() [1/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro2Param	(	DICOMGDCMImageFrameInfo	,
		const DICOMImageFrameInfo::Pointer &	,
		gdcm::Scanner::TagToValue const &
	)

mitkNewMacro2Param() [2/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro2Param	(	DICOMGDCMImageFrameInfo	,
		const std::string &	,
		unsigned int
	)

New()

static Pointer mitk::DICOMGDCMImageFrameInfo::New ( )

static

Member Data Documentation

m_TagForValue

const gdcm::Scanner::TagToValue mitk::DICOMGDCMImageFrameInfo::m_TagForValue

protected

Definition at line 68 of file mitkDICOMGDCMImageFrameInfo.h.

---

The documentation for this class was generated from the following file:

• mitkDICOMGDCMImageFrameInfo.h
