mitk::DICOMDatasetSorter Class Reference

The sorting/splitting building-block of DICOMITKSeriesGDCMReader. More...

#include <mitkDICOMDatasetSorter.h>

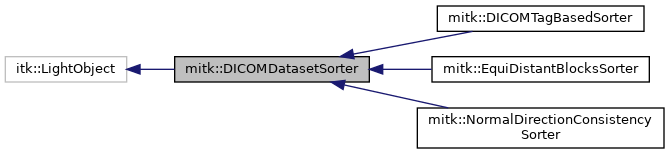

Inheritance diagram for mitk::DICOMDatasetSorter:

Collaboration diagram for mitk::DICOMDatasetSorter:

Public Member Functions
	mitkClassMacroItkParent (DICOMDatasetSorter, itk::LightObject)
virtual DICOMTagList	GetTagsOfInterest ()=0
	Return the tags of interest (to facilitate scanning) More...
void	SetInput (DICOMDatasetList filenames)
	Set the input datasets for sorting. More...
const DICOMDatasetList &	GetInput () const
	Get the input datasets. More...
virtual void	Sort ()=0
	Sort input datasets into one or multiple outputs. More...
unsigned int	GetNumberOfOutputs () const
	Get the number of output groups after sorting. More...
const DICOMDatasetList &	GetOutput (unsigned int index) const
	Get a specific output group (const). More...
DICOMDatasetList &	GetOutput (unsigned int index)
	Get a specific output group (non-const). More...
IOVolumeSplitReason::ConstPointer	GetSplitReason (unsigned int index) const
	Get the split reason for a specific output group. More...
virtual void	PrintConfiguration (std::ostream &os, const std::string &indent="") const =0
	Print configuration details into stream. More...
virtual bool	operator== (const DICOMDatasetSorter &other) const =0
	Equality comparison operator. More...

Protected Member Functions
	DICOMDatasetSorter ()
	~DICOMDatasetSorter () override
	DICOMDatasetSorter (const DICOMDatasetSorter &other)
DICOMDatasetSorter &	operator= (const DICOMDatasetSorter &other)
void	ClearOutputs ()
void	SetNumberOfOutputs (unsigned int numberOfOutputs)
void	SetOutput (unsigned int index, const DICOMDatasetList &output, IOVolumeSplitReason::ConstPointer splitReason=nullptr)

Detailed Description

The sorting/splitting building-block of DICOMITKSeriesGDCMReader.

This class describes the interface of the sorting/splitting process described as part of DICOMITKSeriesGDCMReader::AnalyzeInputFiles() (see Loading strategy).

The procedure is simple:

• take a list of input datasets (DICOMDatasetAccess)
• sort them (to be defined by sub-classes, based on specific tags)
• return the sorting result as outputs (the single input might be distributed into multiple outputs)

The simplest and most generic form of sorting is implemented in sub-class DICOMTagBasedSorter.

Definition at line 41 of file mitkDICOMDatasetSorter.h.

Constructor & Destructor Documentation

DICOMDatasetSorter() [1/2]

mitk::DICOMDatasetSorter::DICOMDatasetSorter ( )

protected

~DICOMDatasetSorter()

mitk::DICOMDatasetSorter::~DICOMDatasetSorter ( )

overrideprotected

DICOMDatasetSorter() [2/2]

mitk::DICOMDatasetSorter::DICOMDatasetSorter ( const DICOMDatasetSorter &  other )

protected

Member Function Documentation

ClearOutputs()

void mitk::DICOMDatasetSorter::ClearOutputs ( )

protected

GetInput()

const DICOMDatasetList& mitk::DICOMDatasetSorter::GetInput

(

)

const

Get the input datasets.

Returns

Const reference to the input dataset list.

GetNumberOfOutputs()

unsigned int mitk::DICOMDatasetSorter::GetNumberOfOutputs

(

)

const

Get the number of output groups after sorting.

Returns

The number of output dataset lists.

GetOutput() [1/2]

DICOMDatasetList& mitk::DICOMDatasetSorter::GetOutput

(

unsigned int

index

)

Get a specific output group (non-const).

Parameters

[in]

index

The index of the output group to retrieve.

Returns

Reference to the output dataset list.

Precondition

index must be less than GetNumberOfOutputs().

GetOutput() [2/2]

const DICOMDatasetList& mitk::DICOMDatasetSorter::GetOutput

(

unsigned int

index

)

const

Get a specific output group (const).

Parameters

[in]

index

The index of the output group to retrieve.

Returns

Const reference to the output dataset list.

Precondition

index must be less than GetNumberOfOutputs().

GetSplitReason()

IOVolumeSplitReason::ConstPointer mitk::DICOMDatasetSorter::GetSplitReason

(

unsigned int

index

)

const

Get the split reason for a specific output group.

Parameters

[in]

index

The index of the output group.

Returns

A const smart pointer to the split reason, or nullptr if not set.

Precondition

index must be less than GetNumberOfOutputs().

GetTagsOfInterest()

virtual DICOMTagList mitk::DICOMDatasetSorter::GetTagsOfInterest ( )

pure virtual

Return the tags of interest (to facilitate scanning)

Implemented in mitk::NormalDirectionConsistencySorter, mitk::EquiDistantBlocksSorter, and mitk::DICOMTagBasedSorter.

mitkClassMacroItkParent()

mitk::DICOMDatasetSorter::mitkClassMacroItkParent	(	DICOMDatasetSorter	,
		itk::LightObject
	)

operator=()

DICOMDatasetSorter& mitk::DICOMDatasetSorter::operator= ( const DICOMDatasetSorter &  other )

protected

operator==()

virtual bool mitk::DICOMDatasetSorter::operator== ( const DICOMDatasetSorter &  other ) const

pure virtual

Equality comparison operator.

Parameters

[in]

other

The sorter to compare with.

Returns

true if the sorters have identical configurations.

Implemented in mitk::NormalDirectionConsistencySorter, mitk::EquiDistantBlocksSorter, and mitk::DICOMTagBasedSorter.

PrintConfiguration()

virtual void mitk::DICOMDatasetSorter::PrintConfiguration ( std::ostream &  os, const std::string &  indent = ""  ) const

pure virtual

Print configuration details into stream.

Parameters

[in,out]	os	The output stream to print to.
[in]	indent	Indentation prefix for each line.

Implemented in mitk::NormalDirectionConsistencySorter, mitk::EquiDistantBlocksSorter, and mitk::DICOMTagBasedSorter.

SetInput()

void mitk::DICOMDatasetSorter::SetInput

(

DICOMDatasetList

filenames

)

Set the input datasets for sorting.

Parameters

[in]

filenames

The list of DICOMDatasetAccess instances to sort.

SetNumberOfOutputs()

void mitk::DICOMDatasetSorter::SetNumberOfOutputs ( unsigned int  numberOfOutputs )

protected

SetOutput()

void mitk::DICOMDatasetSorter::SetOutput ( unsigned int  index, const DICOMDatasetList &  output, IOVolumeSplitReason::ConstPointer  splitReason = nullptr  )

protected

Sort()

virtual void mitk::DICOMDatasetSorter::Sort ( )

pure virtual

Sort input datasets into one or multiple outputs.

Subclasses must implement this method to perform the actual sorting/splitting logic.

Implemented in mitk::NormalDirectionConsistencySorter, mitk::EquiDistantBlocksSorter, and mitk::DICOMTagBasedSorter.

---

The documentation for this class was generated from the following file:

• mitkDICOMDatasetSorter.h
