Template factory class for AIF-based pharmacokinetic models. More...

#include <mitkConcreteAIFBasedModelFactory.h>

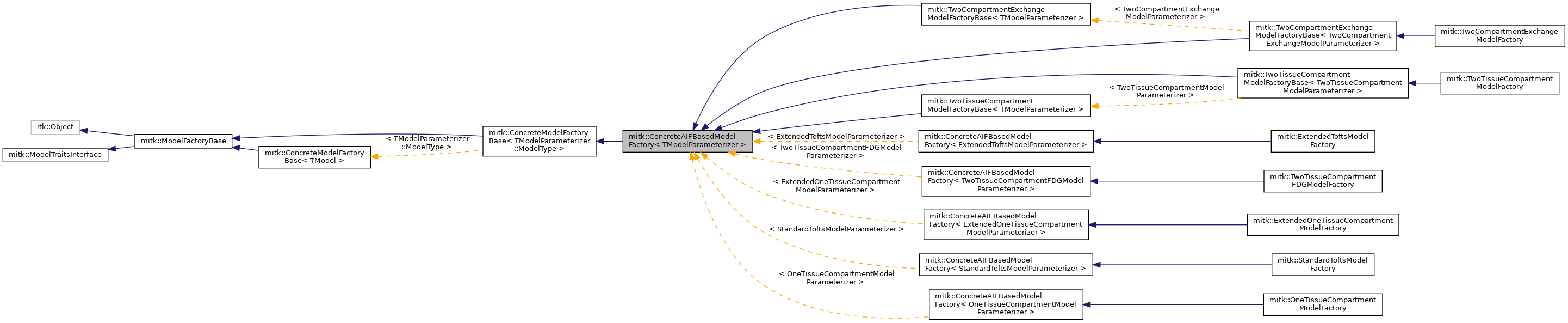

Inheritance diagram for mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >:

[legend]

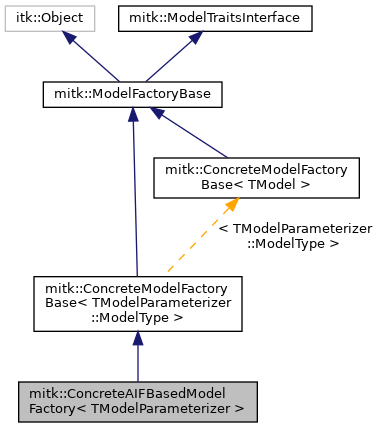

Collaboration diagram for mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >:

[legend]

Public Types
typedef Superclass::ModelType	ModelType

typedef TModelParameterizer	ModelParameterizerType

Public Types inherited from mitk::ConcreteModelFactoryBase< TModelParameterizer::ModelType >
typedef ModelFactoryBase::ModelBaseType	ModelBaseType

typedef ModelFactoryBase::ModelBasePointer	ModelBasePointer

typedef TModelParameterizer::ModelType	ModelType

typedef ModelType::Pointer	ModelPointer

typedef ModelFactoryBase::ParameterNameType	ParameterNameType

typedef ModelFactoryBase::ParameterNamesType	ParameterNamesType

typedef ModelFactoryBase::ParametersSizeType	ParametersSizeType

typedef ModelFactoryBase::ParamterScaleMapType	ParamterScaleMapType

typedef ModelFactoryBase::ParamterUnitMapType	ParamterUnitMapType

typedef ModelFactoryBase::DerivedParameterNamesType	DerivedParameterNamesType

typedef ModelFactoryBase::DerivedParametersSizeType	DerivedParametersSizeType

typedef ModelFactoryBase::DerivedParamterScaleMapType	DerivedParamterScaleMapType

typedef ModelFactoryBase::DerivedParamterUnitMapType	DerivedParamterUnitMapType

typedef ModelFactoryBase::FunctionStringType	FunctionStringType

typedef ModelFactoryBase::ModellClassIDType	ModellClassIDType

Public Types inherited from mitk::ModelFactoryBase
typedef ModelBase	ModelBaseType

typedef ModelBaseType::Pointer	ModelBasePointer

typedef ModelTraitsInterface::ParameterNameType	ParameterNameType

typedef ModelTraitsInterface::ParameterNamesType	ParameterNamesType

typedef ModelTraitsInterface::ParametersSizeType	ParametersSizeType

typedef ModelTraitsInterface::ParamterScaleMapType	ParamterScaleMapType

typedef ModelTraitsInterface::ParamterUnitMapType	ParamterUnitMapType

typedef ModelTraitsInterface::FunctionStringType	FunctionStringType

typedef ModelTraitsInterface::ModellClassIDType	ModellClassIDType

typedef ModelTraitsInterface::DerivedParameterNamesType	DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParametersSizeType	DerivedParametersSizeType

typedef ModelTraitsInterface::DerivedParamterScaleMapType	DerivedParamterScaleMapType

typedef ModelTraitsInterface::DerivedParamterUnitMapType	DerivedParamterUnitMapType

Public Types inherited from mitk::ModelTraitsInterface
typedef itk::Array< double >	ModelResultType
	Type representing the model output signal as an array of doubles. More...

using	ParameterValueType = double
	Type of a single parameter value. More...

typedef itk::Array< ParameterValueType >	ParametersType
	Type representing a vector of parameter values. More...

typedef std::string	ParameterNameType
	Type used for parameter names. More...

typedef std::vector< ParameterNameType >	ParameterNamesType
	Type for a list of parameter names. More...

typedef ParametersType::SizeValueType	ParametersSizeType
	Type for the count of parameters. More...

typedef ParameterNamesType	DerivedParameterNamesType
	Type for a list of derived parameter names. More...

typedef ParametersSizeType	DerivedParametersSizeType
	Type for the count of derived parameters. More...

typedef std::map< ParameterNameType, double >	ParamterScaleMapType
	Map type associating parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	ParamterUnitMapType
	Map type associating parameter names to their unit strings. More...

typedef std::map< ParameterNameType, double >	DerivedParamterScaleMapType
	Map type associating derived parameter names to their scaling factors. More...

typedef std::map< ParameterNameType, std::string >	DerivedParamterUnitMapType
	Map type associating derived parameter names to their unit strings. More...

typedef std::string	FunctionStringType
	Type for the function string representation of the model. More...

typedef std::string	ModellClassIDType
	Type for the unique class identifier of the model. More...

Public Member Functions
	mitkClassMacro (ConcreteAIFBasedModelFactory, ConcreteModelFactoryBase< typename TModelParameterizer::ModelType >)

Public Member Functions inherited from mitk::ConcreteModelFactoryBase< TModelParameterizer::ModelType >
	mitkClassMacro (ConcreteModelFactoryBase, ModelFactoryBase)

ModelBasePointer	CreateModel () const override
	Creates and returns a new instance of the model. More...

ConstraintCheckerBase::Pointer	CreateDefaultConstraints () const override
	Creates default constraints for the model fitting process. More...

ParameterNamesType	GetParameterNames () const override
	Returns the names of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

ParametersSizeType	GetNumberOfParameters () const override
	Returns the number of parameters that must be defined when using the model to compute the signal (GetSignal()). More...

ParamterScaleMapType	GetParameterScales () const override
	Returns the scaling factors for all model parameters. More...

ParamterUnitMapType	GetParameterUnits () const override
	Returns the unit strings for all model parameters. More...

ParameterNamesType	GetDerivedParameterNames () const override
	Returns the names of derived parameters that can be computed by the model. More...

ParametersSizeType	GetNumberOfDerivedParameters () const override
	Returns the number of derived parameters that can be computed by the model. More...

DerivedParamterScaleMapType	GetDerivedParameterScales () const override
	Returns the scaling factors for all derived parameters. More...

DerivedParamterUnitMapType	GetDerivedParameterUnits () const override
	Returns the unit strings for all derived parameters. More...

std::string	GetModelDisplayName () const override
	Returns the human-readable display name of the model. More...

std::string	GetModelType () const override
	Returns the type/category string of the model (e.g. "Linear", "Pharmacokinetic"). More...

FunctionStringType	GetFunctionString () const override
	Returns a parsable function string representing the model equation. More...

ModellClassIDType	GetClassID () const override
	Returns the unique class identifier for this model type. More...

std::string	GetXName () const override
	Returns the name of the independent variable used by the model (e.g. "x"). More...

std::string	GetXAxisName () const override
	Returns the display name of the x-axis (e.g. "Time"). More...

std::string	GetXAxisUnit () const override
	Returns the unit of the x-axis (e.g. "s", "ms"). More...

std::string	GetYAxisName () const override
	Returns the display name of the y-axis (e.g. "Signal Intensity"). More...

std::string	GetYAxisUnit () const override
	Returns the unit of the y-axis. More...

Public Member Functions inherited from mitk::ModelFactoryBase
	mitkClassMacroItkParent (ModelFactoryBase, itk::Object)

ModelParameterizerBase::Pointer	CreateParameterizer (const modelFit::ModelFitInfo *fit) const
	Creates a model parameterizer configured according to the given model fit info. More...

virtual ParametersType	GetDefaultInitialParameterization () const =0
	Returns the default initial parameterization defined by the model developer. More...

Protected Member Functions
ModelParameterizerBase::Pointer	DoCreateParameterizer (const modelFit::ModelFitInfo *fit) const override

	ConcreteAIFBasedModelFactory ()

	~ConcreteAIFBasedModelFactory () override

Protected Member Functions inherited from mitk::ConcreteModelFactoryBase< TModelParameterizer::ModelType >
	ConcreteModelFactoryBase ()

	~ConcreteModelFactoryBase () override

Protected Member Functions inherited from mitk::ModelFactoryBase
	ModelFactoryBase ()

	~ModelFactoryBase () override

Protected Member Functions inherited from mitk::ModelTraitsInterface
	ModelTraitsInterface ()

virtual	~ModelTraitsInterface ()

Additional Inherited Members
Static Public Member Functions inherited from mitk::ConcreteModelFactoryBase< TModelParameterizer::ModelType >
static ModelPointer	CreateConcreteModel ()

Protected Attributes inherited from mitk::ConcreteModelFactoryBase< TModelParameterizer::ModelType >
ModelPointer	m_Reference

Detailed Description

template<class TModelParameterizer>
class mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >

Template factory class for AIF-based pharmacokinetic models.

This factory creates model parameterizer instances for AIF-based models, restoring the AIF values and AIF time grid from a persisted ModelFitInfo object. It serves as the concrete factory for any model whose parameterizer derives from AIFBasedModelParameterizerBase.

Template Parameters

TModelParameterizer The concrete parameterizer type for the AIF-based model.

See also: ConcreteModelFactoryBase, AIFBasedModelParameterizerBase

Definition at line 33 of file mitkConcreteAIFBasedModelFactory.h.

Member Typedef Documentation

◆ ModelParameterizerType

template<class TModelParameterizer >

typedef TModelParameterizer mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >::ModelParameterizerType

Definition at line 41 of file mitkConcreteAIFBasedModelFactory.h.

◆ ModelType

template<class TModelParameterizer >

typedef Superclass::ModelType mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >::ModelType

Definition at line 40 of file mitkConcreteAIFBasedModelFactory.h.

Constructor & Destructor Documentation

◆ ConcreteAIFBasedModelFactory()

template<class TModelParameterizer >

mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >::ConcreteAIFBasedModelFactory ( )

inlineprotected

Definition at line 66 of file mitkConcreteAIFBasedModelFactory.h.

◆ ~ConcreteAIFBasedModelFactory()

template<class TModelParameterizer >

mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >::~ConcreteAIFBasedModelFactory ( )

inlineoverrideprotected

Definition at line 70 of file mitkConcreteAIFBasedModelFactory.h.

Member Function Documentation

◆ DoCreateParameterizer()

template<class TModelParameterizer >

ModelParameterizerBase::Pointer mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >::DoCreateParameterizer ( const modelFit::ModelFitInfo * fit ) const

inlineoverrideprotectedvirtual

Implements mitk::ModelFactoryBase.

Definition at line 44 of file mitkConcreteAIFBasedModelFactory.h.

References mitk::convertParameterToArray(), mitk::modelFit::StaticParameterMap::Get(), and mitk::modelFit::ModelFitInfo::staticParamMap.

◆ mitkClassMacro()

template<class TModelParameterizer >

mitk::ConcreteAIFBasedModelFactory< TModelParameterizer >::mitkClassMacro	(	ConcreteAIFBasedModelFactory< TModelParameterizer >	,
		ConcreteModelFactoryBase< typename TModelParameterizer::ModelType >
	)

The documentation for this class was generated from the following file:

mitkConcreteAIFBasedModelFactory.h
