Operation that holds everything necessary for an operation on a cell. More...

#include <mitkCellOperation.h>

Inheritance diagram for mitk::CellOperation:

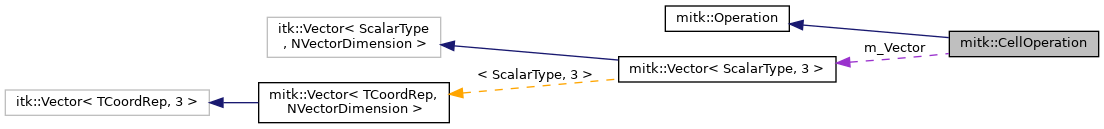

Collaboration diagram for mitk::CellOperation:

[legend]

Public Member Functions
	mitkClassMacro (CellOperation, Operation)

	CellOperation (OperationType operationType, int cellId, Vector3D vector)
	Construct a CellOperation with a displacement vector. More...

	CellOperation (OperationType operationType, int cellId)
	Construct a CellOperation without a displacement vector. More...

	~CellOperation () override

int	GetCellId ()
	Get the cell identifier. More...

Vector3D	GetVector ()
	Get the displacement vector. More...

Public Member Functions inherited from mitk::Operation
	mitkClassMacroNoParent (Operation) virtual bool IsValid() const
	Check whether this operation is still valid and can be executed. More...

virtual	~Operation ()=default
	Virtual destructor. More...

OperationType	GetOperationType ()
	Get the type identifier of this operation. More...

Protected Attributes
int	m_CellId

Vector3D	m_Vector

Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType
	The type identifier for this operation. More...

Additional Inherited Members
Protected Member Functions inherited from mitk::Operation
	Operation (OperationType operationType)
	Construct an operation with the given type. More...

	Operation (const Operation &)=default

	Operation (Operation &&)=default

Operation &	operator= (const Operation &)=default

Operation &	operator= (Operation &&)=default

Detailed Description

Operation that holds everything necessary for an operation on a cell.

Stores the operation type, cell identifier, and an optional displacement vector for undo/redo support.

See also: Operation, LineOperation

Definition at line 32 of file mitkCellOperation.h.

Constructor & Destructor Documentation

◆ CellOperation() [1/2]

mitk::CellOperation::CellOperation	(	OperationType	operationType,
		int	cellId,
		Vector3D	vector
	)

Construct a CellOperation with a displacement vector.

Parameters

[in]	operationType	The type of operation (e.g. move, add).
[in]	cellId	The identifier of the cell to operate on.
[in]	vector	The displacement or direction vector.

◆ CellOperation() [2/2]

mitk::CellOperation::CellOperation	(	OperationType	operationType,
		int	cellId
	)

Construct a CellOperation without a displacement vector.

Parameters

[in]	operationType	The type of operation.
[in]	cellId	The identifier of the cell to operate on.

◆ ~CellOperation()

mitk::CellOperation::~CellOperation ( )

inlineoverride

Definition at line 54 of file mitkCellOperation.h.

Member Function Documentation

◆ GetCellId()

int mitk::CellOperation::GetCellId ( )

inline

Get the cell identifier.

Returns: The cell ID.

Definition at line 60 of file mitkCellOperation.h.

◆ GetVector()

Vector3D mitk::CellOperation::GetVector ( )

inline

Get the displacement vector.

Returns: The vector associated with this operation.

Definition at line 66 of file mitkCellOperation.h.

◆ mitkClassMacro()

mitk::CellOperation::mitkClassMacro	(	CellOperation	,
		Operation
	)

Member Data Documentation

◆ m_CellId

int mitk::CellOperation::m_CellId

protected

Definition at line 68 of file mitkCellOperation.h.

◆ m_Vector

Vector3D mitk::CellOperation::m_Vector
