mitk::AreaUnderTheCurveDescriptionParameter Class Reference

Curve description parameter that computes the Area Under the Curve (AUC). More...

#include <mitkAreaUnderTheCurveDescriptionParameter.h>

Inheritance diagram for mitk::AreaUnderTheCurveDescriptionParameter:

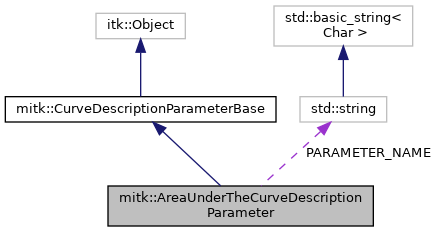

Collaboration diagram for mitk::AreaUnderTheCurveDescriptionParameter:

Public Types
typedef mitk::AreaUnderTheCurveDescriptionParameter	Self
typedef CurveDescriptionParameterBase	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
Public Types inherited from mitk::CurveDescriptionParameterBase
typedef CurveDescriptionParameterBase	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::Array< double >	CurveType
	Array type for curve values. More...
typedef itk::Array< double >	CurveGridType
	Array type for the curve time grid. More...
typedef double	CurveDescriptionParameterResultType
	Scalar result type for a single description parameter value. More...
typedef std::string	CurveDescriptionParameterNameType
	String type for description parameter names. More...
typedef std::vector< CurveDescriptionParameterResultType >	DescriptionParameterResultsType
	Vector of computed description parameter results. More...
typedef std::vector< CurveDescriptionParameterNameType >	DescriptionParameterNamesType
	Vector of description parameter names. More...

Public Member Functions
Pointer	Clone () const
DescriptionParameterNamesType	GetDescriptionParameterName () const override
	Returns the name of the computed description parameter ("AreaUnderCurve"). More...
Public Member Functions inherited from mitk::CurveDescriptionParameterBase
virtual const char *	GetClassName () const
DescriptionParameterResultsType	GetCurveDescriptionParameter (const CurveType &curve, const CurveGridType &grid) const
	Computes and returns the description parameter values for the given curve. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	AreaUnderTheCurveDescriptionParameter ()
	~AreaUnderTheCurveDescriptionParameter () override
DescriptionParameterResultsType	ComputeCurveDescriptionParameter (const CurveType &curve, const CurveGridType &grid) const override
Protected Member Functions inherited from mitk::CurveDescriptionParameterBase
	CurveDescriptionParameterBase ()
	~CurveDescriptionParameterBase () override

Static Protected Attributes
static const std::string	PARAMETER_NAME

Detailed Description

Curve description parameter that computes the Area Under the Curve (AUC).

The AUC is computed by numerical integration using the trapezoidal rule over the absolute values of the curve, i.e. AUC = integral( |C(t)| dt ).

See also

AreaUnderFirstMomentDescriptionParameter, MeanResidenceTimeDescriptionParameter, CurveDescriptionParameterBase

Definition at line 29 of file mitkAreaUnderTheCurveDescriptionParameter.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer< const Self > mitk::AreaUnderTheCurveDescriptionParameter::ConstPointer

Definition at line 35 of file mitkAreaUnderTheCurveDescriptionParameter.h.

Pointer

typedef itk::SmartPointer< Self > mitk::AreaUnderTheCurveDescriptionParameter::Pointer

Definition at line 34 of file mitkAreaUnderTheCurveDescriptionParameter.h.

Self

typedef mitk::AreaUnderTheCurveDescriptionParameter mitk::AreaUnderTheCurveDescriptionParameter::Self

Definition at line 32 of file mitkAreaUnderTheCurveDescriptionParameter.h.

Superclass

typedef CurveDescriptionParameterBase mitk::AreaUnderTheCurveDescriptionParameter::Superclass

Definition at line 33 of file mitkAreaUnderTheCurveDescriptionParameter.h.

Constructor & Destructor Documentation

AreaUnderTheCurveDescriptionParameter()

mitk::AreaUnderTheCurveDescriptionParameter::AreaUnderTheCurveDescriptionParameter ( )

protected

~AreaUnderTheCurveDescriptionParameter()

mitk::AreaUnderTheCurveDescriptionParameter::~AreaUnderTheCurveDescriptionParameter ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::AreaUnderTheCurveDescriptionParameter::Clone

(

)

const

ComputeCurveDescriptionParameter()

DescriptionParameterResultsType mitk::AreaUnderTheCurveDescriptionParameter::ComputeCurveDescriptionParameter ( const CurveType &  curve, const CurveGridType &  grid  ) const

overrideprotectedvirtual

Slot to implement the computation of the descriptor values.

Implements mitk::CurveDescriptionParameterBase.

GetDescriptionParameterName()

DescriptionParameterNamesType mitk::AreaUnderTheCurveDescriptionParameter::GetDescriptionParameterName ( ) const

overridevirtual

Returns the name of the computed description parameter ("AreaUnderCurve").

Returns

Vector containing the single parameter name.

Implements mitk::CurveDescriptionParameterBase.

New()

static Pointer mitk::AreaUnderTheCurveDescriptionParameter::New ( )

static

Member Data Documentation

PARAMETER_NAME

const std::string mitk::AreaUnderTheCurveDescriptionParameter::PARAMETER_NAME

staticprotected

Definition at line 45 of file mitkAreaUnderTheCurveDescriptionParameter.h.

---

The documentation for this class was generated from the following file:

• mitkAreaUnderTheCurveDescriptionParameter.h
