QmitkSynchronizedNodeSelectionWidget Class Reference

Node selection widget with renderer-specific functionality and synchronization support. More...

#include <QmitkSynchronizedNodeSelectionWidget.h>

Inheritance diagram for QmitkSynchronizedNodeSelectionWidget:

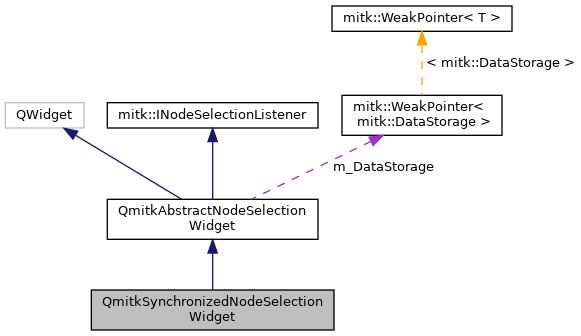

Collaboration diagram for QmitkSynchronizedNodeSelectionWidget:

Public Types
using	NodeList = QmitkAbstractNodeSelectionWidget::NodeList
using	GroupSyncIndexType = int
	Type alias for the synchronization group index. More...
Public Types inherited from QmitkAbstractNodeSelectionWidget
using	NodeList = QList< mitk::DataNode::Pointer >
using	ConstNodeStdVector = std::vector< mitk::DataNode::ConstPointer >

Public Slots
void	SetSelection (const NodeList &newSelection)
void	SetNodeVisibility (mitk::DataNode::Pointer node, const bool visibility)
Public Slots inherited from QmitkAbstractNodeSelectionWidget
void	SetSelectOnlyVisibleNodes (bool selectOnlyVisibleNodes)
	Change the selection modus of the item view's selection model. More...
void	SetCurrentSelection (NodeList selectedNodes)
	Transform a list of data nodes (a selection) into a model selection and set this as a new selection of the selection model of the private member item view. More...
void	SetInvalidInfo (QString info)
void	SetEmptyInfo (QString info)
void	SetPopUpTitel (QString info)
void	SetPopUpHint (QString info)
void	SetSelectionIsOptional (bool isOptional)

Signals
void	SelectionModeChanged (bool selectAll)
void	DeregisterSynchronization ()
void	NodeVisibilityChanged (mitk::DataNode::Pointer node, const bool visibility)
void	SyncGroupIndexChanged (GroupSyncIndexType index)
	Emitted when the synchronization group index actually changes. More...
Signals inherited from QmitkAbstractNodeSelectionWidget
void	CurrentSelectionChanged (NodeList nodes)
	A signal that will be emitted if the selected node has changed. More...

Public Member Functions
	QmitkSynchronizedNodeSelectionWidget (QWidget *parent)
	~QmitkSynchronizedNodeSelectionWidget ()
void	SetBaseRenderer (mitk::BaseRenderer *baseRenderer)
	Sets the base renderer that this widget controls. More...
QmitkRenderWindowDataNodeTableModel *	GetStorageModel () const
	Returns the internal data node table model. More...
void	SetSelectAll (bool selectAll)
	Sets whether all nodes should be selected. More...
bool	GetSelectAll () const
	Returns whether the "select all" mode is active. More...
void	SelectAll ()
	Selects all nodes from the data storage. More...
void	SetSyncGroup (const GroupSyncIndexType index)
	Sets the synchronization group for this widget. More...
GroupSyncIndexType	GetSyncGroup () const
	Returns the current synchronization group index. More...
Public Member Functions inherited from QmitkAbstractNodeSelectionWidget
	QmitkAbstractNodeSelectionWidget (QWidget *parent=nullptr)
virtual	~QmitkAbstractNodeSelectionWidget () override
void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage that will be used / monitored by widget. More...
void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
const mitk::NodePredicateBase *	GetNodePredicate () const
QString	GetInvalidInfo () const
QString	GetEmptyInfo () const
QString	GetPopUpTitel () const
QString	GetPopUpHint () const
bool	GetSelectionIsOptional () const
bool	GetSelectOnlyVisibleNodes () const
NodeList	GetSelectedNodes () const
ConstNodeStdVector	GetSelectedNodesStdVector () const
void	OnSelectionReceived (const std::string &context, const std::vector< mitk::DataNode::Pointer > &selection) override
	Callback method for received selections. More...

Protected Member Functions
void	SetUpConnections ()
void	Initialize ()
void	UpdateInfo () override
void	OnDataStorageChanged () override
void	OnNodePredicateChanged () override
void	ReviseSelectionChanged (const NodeList &oldInternalSelection, NodeList &newInternalSelection) override
void	OnInternalSelectionChanged () override
void	OnNodeAddedToStorage (const mitk::DataNode *node) override
void	OnNodeModified (const itk::Object *caller, const itk::EventObject &event) override
Protected Member Functions inherited from QmitkAbstractNodeSelectionWidget
virtual void	OnNodeRemovedFromStorage (const mitk::DataNode *node)
void	HandleChangeOfInternalSelection (NodeList newInternalSelection)
NodeList	CompileEmitSelection () const
virtual bool	AllowEmissionOfSelection (const NodeList &emissionCandidates) const
void	EmitSelection (const NodeList &emissionCandidates)
void	SetCurrentInternalSelection (NodeList selectedNodes)
const NodeList &	GetCurrentInternalSelection () const
const NodeList &	GetCurrentExternalSelection () const

Additional Inherited Members
Protected Slots inherited from QmitkAbstractNodeSelectionWidget
void	RemoveNodeFromInternalSelection (const mitk::DataNode *node)
Protected Attributes inherited from QmitkAbstractNodeSelectionWidget
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage
mitk::NodePredicateBase::ConstPointer	m_NodePredicate
QString	m_InvalidInfo
QString	m_EmptyInfo
QString	m_PopUpTitel
QString	m_PopUpHint
bool	m_IsOptional
bool	m_SelectOnlyVisibleNodes

Detailed Description

Node selection widget with renderer-specific functionality and synchronization support.

The QmitkSynchronizedNodeSelectionWidget implements QmitkAbstractNodeSelectionWidget by providing a table view, using a QmitkRenderWindowDataNodeTableModel and extending it with base renderer-specific functionality.

Given a base renderer, the selection widget is able to display and access render window specific properties of the selected nodes. It can be connected with other QmitkSynchronizedNodeSelectionWidgets to synchronize their state. The widget can be used to decide if all data nodes of the data storage should be selected or only an individually selected set of nodes, defined by a QmitkNodeSelectionDialog. If individual nodes are selected / removed from the selection, the widget can inform other QmitkSynchronizedNodeSelectionWidget instances about the current selection, if desired. Additionally the widget allows to reinitialize the corresponding base renderer with a specific data node geometry.

Definition at line 48 of file QmitkSynchronizedNodeSelectionWidget.h.

Member Typedef Documentation

GroupSyncIndexType

using QmitkSynchronizedNodeSelectionWidget::GroupSyncIndexType = int

Type alias for the synchronization group index.

Definition at line 78 of file QmitkSynchronizedNodeSelectionWidget.h.

NodeList

using QmitkSynchronizedNodeSelectionWidget::NodeList = QmitkAbstractNodeSelectionWidget::NodeList

Definition at line 57 of file QmitkSynchronizedNodeSelectionWidget.h.

Constructor & Destructor Documentation

QmitkSynchronizedNodeSelectionWidget()

QmitkSynchronizedNodeSelectionWidget::QmitkSynchronizedNodeSelectionWidget

(

QWidget *

parent

)

~QmitkSynchronizedNodeSelectionWidget()

QmitkSynchronizedNodeSelectionWidget::~QmitkSynchronizedNodeSelectionWidget

(

)

Member Function Documentation

DeregisterSynchronization

void QmitkSynchronizedNodeSelectionWidget::DeregisterSynchronization ( )

signal

GetSelectAll()

bool QmitkSynchronizedNodeSelectionWidget::GetSelectAll

(

)

const

Returns whether the "select all" mode is active.

GetStorageModel()

QmitkRenderWindowDataNodeTableModel* QmitkSynchronizedNodeSelectionWidget::GetStorageModel

(

)

const

Returns the internal data node table model.

GetSyncGroup()

GroupSyncIndexType QmitkSynchronizedNodeSelectionWidget::GetSyncGroup

(

)

const

Returns the current synchronization group index.

Initialize()

void QmitkSynchronizedNodeSelectionWidget::Initialize ( )

protected

NodeVisibilityChanged

void QmitkSynchronizedNodeSelectionWidget::NodeVisibilityChanged ( mitk::DataNode::Pointer  node, const bool  visibility  )

signal

OnDataStorageChanged()

void QmitkSynchronizedNodeSelectionWidget::OnDataStorageChanged ( )

overrideprotectedvirtual

Method is called if the data storage has changed. The selection will be automatically be reset afterwards. The default implementation does nothing.

Reimplemented from QmitkAbstractNodeSelectionWidget.

OnInternalSelectionChanged()

void QmitkSynchronizedNodeSelectionWidget::OnInternalSelectionChanged ( )

overrideprotectedvirtual

This member function will called when ever a new internal selection has been determined. This can be used to update the state of internal widgets. The default implementation does nothing.

Reimplemented from QmitkAbstractNodeSelectionWidget.

OnNodeAddedToStorage()

void QmitkSynchronizedNodeSelectionWidget::OnNodeAddedToStorage ( const mitk::DataNode *  node )

overrideprotectedvirtual

Method is called when a node is added to the storage. Default implementation does nothing. Derived widgets can override the method if they want to react on new nodes in the storage.

Reimplemented from QmitkAbstractNodeSelectionWidget.

OnNodeModified()

void QmitkSynchronizedNodeSelectionWidget::OnNodeModified ( const itk::Object *  caller, const itk::EventObject &  event  )

overrideprotectedvirtual

Method is called when a node is modified. The modified node is passed as 'caller' variable. Default implementation handles changes that are related to the node predicate:

• If the node does not fit the node predicate anymore, it will be removed.
• If the node was part of the external selection and now fits the node predicate, a new selection is compiled and emitted. Derived widgets can override the method if they want to react on modified nodes.

Reimplemented from QmitkAbstractNodeSelectionWidget.

OnNodePredicateChanged()

void QmitkSynchronizedNodeSelectionWidget::OnNodePredicateChanged ( )

overrideprotectedvirtual

Method is called if the predicate has changed, before the selection will be updated according to the new predicate. The default implementation does nothing.

Remarks

If you are only interested to know when the selection has changed, overwrite OnInternalSelectionChange().

Reimplemented from QmitkAbstractNodeSelectionWidget.

ReviseSelectionChanged()

void QmitkSynchronizedNodeSelectionWidget::ReviseSelectionChanged ( const NodeList &  oldInternalSelection, NodeList &  newInternalSelection  )

overrideprotectedvirtual

This member function is called if the internal selection is about to be changed by the base implementation. This is the slot where derived classes can revise and change the internal selection before widget updates, signal emissions and other things are triggered. Default implementation does nothing, thus it keeps the passed internal selection as compiled by the base implementation.

Reimplemented from QmitkAbstractNodeSelectionWidget.

SelectAll()

void QmitkSynchronizedNodeSelectionWidget::SelectAll

(

)

Selects all nodes from the data storage.

SelectionModeChanged

void QmitkSynchronizedNodeSelectionWidget::SelectionModeChanged ( bool  selectAll )

signal

SetBaseRenderer()

void QmitkSynchronizedNodeSelectionWidget::SetBaseRenderer

(

mitk::BaseRenderer *

baseRenderer

)

Sets the base renderer that this widget controls.

Parameters

[in]

baseRenderer

Pointer to the base renderer.

SetNodeVisibility

void QmitkSynchronizedNodeSelectionWidget::SetNodeVisibility ( mitk::DataNode::Pointer  node, const bool  visibility  )

slot

SetSelectAll()

void QmitkSynchronizedNodeSelectionWidget::SetSelectAll

(

bool

selectAll

)

Sets whether all nodes should be selected.

Parameters

[in]

selectAll

If true, selects all nodes from the data storage.

SetSelection

void QmitkSynchronizedNodeSelectionWidget::SetSelection ( const NodeList &  newSelection )

slot

SetSyncGroup()

void QmitkSynchronizedNodeSelectionWidget::SetSyncGroup

(

const GroupSyncIndexType

index

)

Sets the synchronization group for this widget.

Parameters

[in]

index

The synchronization group index.

SetUpConnections()

void QmitkSynchronizedNodeSelectionWidget::SetUpConnections ( )

protected

SyncGroupIndexChanged

void QmitkSynchronizedNodeSelectionWidget::SyncGroupIndexChanged ( GroupSyncIndexType  index )

signal

Emitted when the synchronization group index actually changes.

Listeners (typically the owning utility widget) use this to keep view-side state – e.g. a group-selector combobox – in sync with the widget's authoritative 'm_SyncGroupIndex'. Not emitted when 'SetSyncGroup' is called with the value the widget already holds.

UpdateInfo()

void QmitkSynchronizedNodeSelectionWidget::UpdateInfo ( )

overrideprotectedvirtual

Method is called if the display of the selected nodes should be updated (e.g. because the selection changed).

Implements QmitkAbstractNodeSelectionWidget.

---

The documentation for this class was generated from the following file:

• QmitkSynchronizedNodeSelectionWidget.h
