QmitkStandardViews Class Reference

Widget displaying a clickable image for selecting standard anatomical view directions. More...

#include <QmitkStandardViews.h>

Inheritance diagram for QmitkStandardViews:

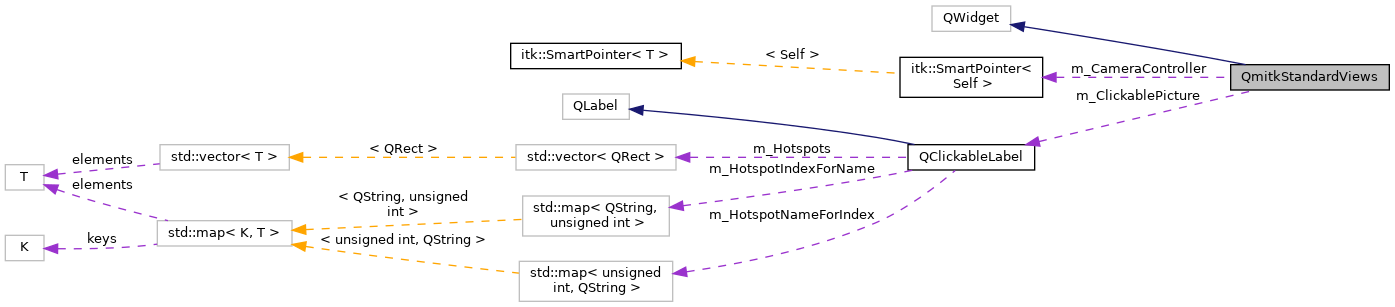

Collaboration diagram for QmitkStandardViews:

Signals
void	StandardViewDefined (mitk::CameraController::StandardView view)
	Emitted when a standard view hotspot is clicked. More...

Public Member Functions
	QmitkStandardViews (QWidget *parent=nullptr, Qt::WindowFlags f={})
	Construct the standard views widget. More...
	~QmitkStandardViews () override
	Destructor. More...
void	SetCameraController (mitk::CameraController *controller)
	Set the camera controller to apply standard views to. More...
void	SetCameraControllerFromRenderWindow (vtkRenderWindow *window)
	Set the camera controller by looking it up from a render window. More...

Protected Slots
void	hotspotClicked (const QString &s)

Protected Attributes
QClickableLabel *	m_ClickablePicture
mitk::CameraController::Pointer	m_CameraController

Detailed Description

Widget displaying a clickable image for selecting standard anatomical view directions.

Shows a small picture with labeled hotspots (Left, Right, Top, Bottom, Front, Back). Clicking a hotspot sets the corresponding standard view on the assigned mitk::CameraController and emits the StandardViewDefined signal.

See also

mitk::CameraController, QClickableLabel

Definition at line 34 of file QmitkStandardViews.h.

Constructor & Destructor Documentation

QmitkStandardViews()

QmitkStandardViews::QmitkStandardViews	(	QWidget *	parent = nullptr,
		Qt::WindowFlags	f = {}
	)

Construct the standard views widget.

Parameters

[in]	parent	The parent widget.
[in]	f	Window flags.

~QmitkStandardViews()

QmitkStandardViews::~QmitkStandardViews ( )

override

Destructor.

Member Function Documentation

hotspotClicked

void QmitkStandardViews::hotspotClicked ( const QString &  s )

protectedslot

SetCameraController()

void QmitkStandardViews::SetCameraController

(

mitk::CameraController *

controller

)

Set the camera controller to apply standard views to.

Parameters

[in]

controller

The mitk::CameraController instance.

SetCameraControllerFromRenderWindow()

void QmitkStandardViews::SetCameraControllerFromRenderWindow

(

vtkRenderWindow *

window

)

Set the camera controller by looking it up from a render window.

Parameters

[in]

window

The vtkRenderWindow whose camera controller to use.

StandardViewDefined

void QmitkStandardViews::StandardViewDefined ( mitk::CameraController::StandardView  view )

signal

Emitted when a standard view hotspot is clicked.

Parameters

[in]

view

The selected standard view direction.

Member Data Documentation

m_CameraController

mitk::CameraController::Pointer QmitkStandardViews::m_CameraController

protected

Definition at line 75 of file QmitkStandardViews.h.

m_ClickablePicture

QClickableLabel* QmitkStandardViews::m_ClickablePicture

protected

Definition at line 73 of file QmitkStandardViews.h.

---

The documentation for this class was generated from the following file:

• QmitkStandardViews.h
