QClickableLabel Class Reference

A QLabel with named rectangular hotspots that emit signals when clicked. More...

#include <qclickablelabel.h>

Inheritance diagram for QClickableLabel:

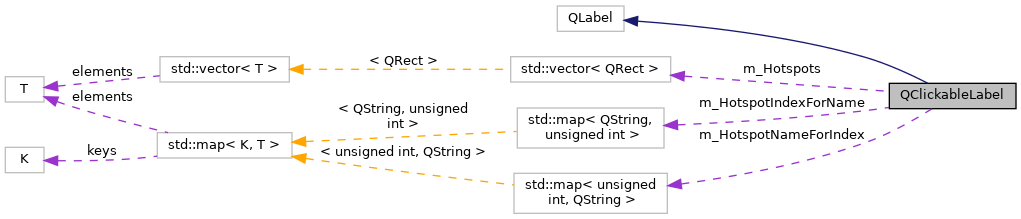

Collaboration diagram for QClickableLabel:

Signals
void	mousePressed (const QString &hotspotName)
	Emitted on mouse press within a hotspot (by name). More...
void	mousePressed (unsigned int hotspotIndex)
	Emitted on mouse press within a hotspot (by index). More...
void	mouseReleased (const QString &hotspotName)
	Emitted on mouse release within a hotspot (by name). More...
void	mouseReleased (unsigned int hotspotIndex)
	Emitted on mouse release within a hotspot (by index). More...

Public Member Functions
	QClickableLabel (QWidget *parent, Qt::WindowFlags f={})
	Construct a clickable label. More...
	QClickableLabel (const QString &text, QWidget *parent, Qt::WindowFlags f={})
	Construct a clickable label with initial text. More...
	~QClickableLabel () override
	Destructor. More...
void	AddHotspot (const QString &name, const QRect position)
	Add a named hotspot at the given rectangle position. More...
void	RemoveHotspot (const QString &name)
	Remove a hotspot by name. More...
void	RemoveHotspot (unsigned int hotspotIndex)
	Remove a hotspot by index. More...
void	RemoveAllHotspots ()
	Remove all hotspots. More...

Protected Types
typedef std::vector< QRect >	RectVectorType
typedef std::map< QString, unsigned int >	NameToIndexMapType
typedef std::map< unsigned int, QString >	IndexToNameMapType

Protected Member Functions
void	mousePressEvent (QMouseEvent *e) override
void	mouseReleaseEvent (QMouseEvent *e) override
unsigned int	matchingRect (const QPoint &p)
	returns index == m_Hotspots.size() if nothing is hit More...

Protected Attributes
RectVectorType	m_Hotspots
NameToIndexMapType	m_HotspotIndexForName
IndexToNameMapType	m_HotspotNameForIndex

Detailed Description

A QLabel with named rectangular hotspots that emit signals when clicked.

Useful for overlaying interactive regions on a pixmap. Each hotspot is defined by a name and a QRect. When the user clicks within a hotspot, signals are emitted with both the hotspot name and index.

Note

Stretched images should be avoided because hotspot positions are not adjusted.

See also

QmitkStandardViews

Definition at line 35 of file qclickablelabel.h.

Member Typedef Documentation

IndexToNameMapType

typedef std::map<unsigned int, QString> QClickableLabel::IndexToNameMapType

protected

Definition at line 116 of file qclickablelabel.h.

NameToIndexMapType

typedef std::map<QString, unsigned int> QClickableLabel::NameToIndexMapType

protected

Definition at line 115 of file qclickablelabel.h.

RectVectorType

typedef std::vector<QRect> QClickableLabel::RectVectorType

protected

Definition at line 112 of file qclickablelabel.h.

Constructor & Destructor Documentation

QClickableLabel() [1/2]

QClickableLabel::QClickableLabel	(	QWidget *	parent,
		Qt::WindowFlags	f = {}
	)

Construct a clickable label.

Parameters

[in]	parent	The parent widget.
[in]	f	Window flags.

QClickableLabel() [2/2]

QClickableLabel::QClickableLabel	(	const QString &	text,
		QWidget *	parent,
		Qt::WindowFlags	f = {}
	)

Construct a clickable label with initial text.

Parameters

[in]	text	The label text.
[in]	parent	The parent widget.
[in]	f	Window flags.

~QClickableLabel()

QClickableLabel::~QClickableLabel ( )

override

Destructor.

Member Function Documentation

AddHotspot()

void QClickableLabel::AddHotspot	(	const QString &	name,
		const QRect	position
	)

Add a named hotspot at the given rectangle position.

Parameters

[in]	name	The hotspot name (used in signals).
[in]	position	The rectangular region of the hotspot.

matchingRect()

unsigned int QClickableLabel::matchingRect ( const QPoint &  p )

protected

returns index == m_Hotspots.size() if nothing is hit

mousePressed [1/2]

void QClickableLabel::mousePressed ( const QString &  hotspotName )

signal

Emitted on mouse press within a hotspot (by name).

Parameters

[in]

hotspotName

The name of the pressed hotspot.

mousePressed [2/2]

void QClickableLabel::mousePressed ( unsigned int  hotspotIndex )

signal

Emitted on mouse press within a hotspot (by index).

Parameters

[in]

hotspotIndex

The index of the pressed hotspot.

mousePressEvent()

void QClickableLabel::mousePressEvent ( QMouseEvent *  e )

overrideprotected

mouseReleased [1/2]

void QClickableLabel::mouseReleased ( const QString &  hotspotName )

signal

Emitted on mouse release within a hotspot (by name).

Parameters

[in]

hotspotName

The name of the released hotspot.

mouseReleased [2/2]

void QClickableLabel::mouseReleased ( unsigned int  hotspotIndex )

signal

Emitted on mouse release within a hotspot (by index).

Parameters

[in]

hotspotIndex

The index of the released hotspot.

mouseReleaseEvent()

void QClickableLabel::mouseReleaseEvent ( QMouseEvent *  e )

overrideprotected

RemoveAllHotspots()

void QClickableLabel::RemoveAllHotspots

(

)

Remove all hotspots.

RemoveHotspot() [1/2]

void QClickableLabel::RemoveHotspot

(

const QString &

name

)

Remove a hotspot by name.

Parameters

[in]

name

The name of the hotspot to remove.

RemoveHotspot() [2/2]

void QClickableLabel::RemoveHotspot

(

unsigned int

hotspotIndex

)

Remove a hotspot by index.

Parameters

[in]

hotspotIndex

The index of the hotspot to remove.

Member Data Documentation

m_HotspotIndexForName

NameToIndexMapType QClickableLabel::m_HotspotIndexForName

protected

Definition at line 117 of file qclickablelabel.h.

m_HotspotNameForIndex

IndexToNameMapType QClickableLabel::m_HotspotNameForIndex

protected

Definition at line 118 of file qclickablelabel.h.

m_Hotspots

RectVectorType QClickableLabel::m_Hotspots

protected

Definition at line 113 of file qclickablelabel.h.

---

The documentation for this class was generated from the following file:

• qclickablelabel.h
