Overlay displaying a scale bar in a render window. More...

#include <QmitkScalarBarOverlay.h>

Inheritance diagram for QmitkScalarBarOverlay:

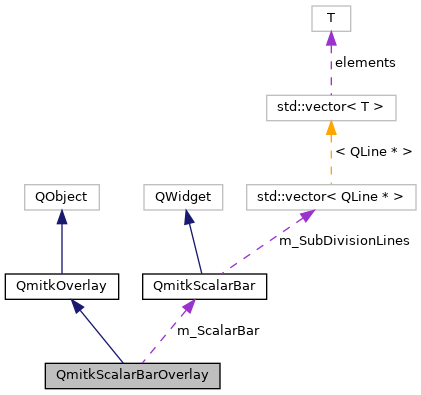

Collaboration diagram for QmitkScalarBarOverlay:

[legend]

Public Member Functions
	QmitkScalarBarOverlay (const char *id)
	Constructor. Creates the internal QmitkScalarBar widget. More...

	~QmitkScalarBarOverlay () override
	Destructor. Removes the property observer. More...

void	GenerateData (mitk::PropertyList::Pointer pl) override
	Configures the scalar bar overlay from the given PropertyList. More...

QSize	GetNeededSize () override
	Returns the current size of the scalar bar widget. More...

Public Member Functions inherited from QmitkOverlay
	QmitkOverlay (const char *id)
	Constructor. More...

	~QmitkOverlay () override
	Destructor. Deletes the internal widget unless it was set externally. More...

virtual void	SetPosition (DisplayPosition pos)
	Sets the display position of this overlay. More...

virtual DisplayPosition	GetPosition ()
	Returns the current display position. More...

virtual void	SetLayer (unsigned int layer)
	Sets the stacking layer of this overlay. More...

virtual unsigned int	GetLayer ()
	Returns the current stacking layer. More...

virtual QWidget *	GetWidget ()
	Returns the internal QWidget representing this overlay. More...

Protected Member Functions
void	GetProperties (mitk::PropertyList::Pointer pl)
	Reads visual properties (color) from the PropertyList and applies them. More...

void	SetupCallback (mitk::BaseProperty::Pointer prop)
	Sets up an ITK observer on the given property to auto-update the scale factor. More...

void	SetScaleFactor ()
	Reads the scale factor property and applies it to the scalar bar. More...

Protected Member Functions inherited from QmitkOverlay
void	AddDropShadow (QWidget *widget)
	Adds a drop shadow graphics effect to the given widget. More...

Protected Attributes
QmitkScalarBar *	m_ScalarBar
	The internal QmitkScalarBar widget. More...

mitk::BaseProperty::Pointer	m_ObservedProperty
	The observed property for automatic updates. More...

mitk::PropertyList::Pointer	m_PropertyList
	Cached PropertyList for property lookups. More...

unsigned long	m_ObserverTag
	ITK observer tag for the property modification callback. More...

Protected Attributes inherited from QmitkOverlay
const char *	m_Id
	ID of the overlay, used as property key for lookups. More...

DisplayPosition	m_Position
	Current display position of the overlay. More...

unsigned int	m_Layer
	Stacking layer of the overlay. More...

QWidget *	m_Widget
	Internal QWidget representing the overlay content. More...

bool	m_WidgetIsCustom
	Flag indicating whether the widget was set externally (custom overlay). More...

Additional Inherited Members
Public Types inherited from QmitkOverlay
enum	DisplayPosition { top_Left , top_Center , top_Right , middle_Left , middle_Right , bottom_Left , bottom_Center , bottom_Right }
	Enumeration of all possible display positions in a render window. More...

Detailed Description

Overlay displaying a scale bar in a render window.

This overlay wraps a QmitkScalarBar widget and configures it based on properties from a mitk::PropertyList. The scale factor is read from the property identified by the overlay's ID (as a float property), and the color is read from the "overlay.color" property.

The overlay registers an observer on the scale property so that the bar updates automatically when the property value changes.

See also: QmitkScalarBar; QmitkOverlay; QmitkTextOverlay

Definition at line 41 of file QmitkScalarBarOverlay.h.

Constructor & Destructor Documentation

◆ QmitkScalarBarOverlay()

QmitkScalarBarOverlay::QmitkScalarBarOverlay ( const char * id )

Constructor. Creates the internal QmitkScalarBar widget.

Parameters

[in] id String identifier used to look up the scale factor property.

◆ ~QmitkScalarBarOverlay()

QmitkScalarBarOverlay::~QmitkScalarBarOverlay ( )

override

Destructor. Removes the property observer.

Member Function Documentation

◆ GenerateData()

void QmitkScalarBarOverlay::GenerateData ( mitk::PropertyList::Pointer pl )

overridevirtual

Configures the scalar bar overlay from the given PropertyList.

Reads overlay-specific properties (color, scale factor) and sets up an observer for automatic updates when the scale property changes.

Parameters

[in] pl The PropertyList containing the configuration properties.

Reimplemented from QmitkOverlay.

◆ GetNeededSize()

QSize QmitkScalarBarOverlay::GetNeededSize ( )

overridevirtual

Returns the current size of the scalar bar widget.

Returns: The QSize of the internal widget.

Implements QmitkOverlay.

◆ GetProperties()

void QmitkScalarBarOverlay::GetProperties ( mitk::PropertyList::Pointer pl )

protected

Reads visual properties (color) from the PropertyList and applies them.

Reads the "overlay.color" property and configures the pen of the internal QmitkScalarBar accordingly. Falls back to a default color if the property is missing.

Parameters

[in] pl The PropertyList to read properties from.

◆ SetScaleFactor()

void QmitkScalarBarOverlay::SetScaleFactor ( )

protected

Reads the scale factor property and applies it to the scalar bar.

The scale factor is read from the property identified by m_Id. Falls back to a default value of 2 if the property is not found.

◆ SetupCallback()

void QmitkScalarBarOverlay::SetupCallback ( mitk::BaseProperty::Pointer prop )

protected

Sets up an ITK observer on the given property to auto-update the scale factor.

Parameters

[in] prop The property to observe for modifications.

Member Data Documentation

◆ m_ObservedProperty

mitk::BaseProperty::Pointer QmitkScalarBarOverlay::m_ObservedProperty

protected

The observed property for automatic updates.

Definition at line 100 of file QmitkScalarBarOverlay.h.

◆ m_ObserverTag

unsigned long QmitkScalarBarOverlay::m_ObserverTag

protected

ITK observer tag for the property modification callback.

Definition at line 106 of file QmitkScalarBarOverlay.h.

◆ m_PropertyList

mitk::PropertyList::Pointer QmitkScalarBarOverlay::m_PropertyList

protected

Cached PropertyList for property lookups.

Definition at line 103 of file QmitkScalarBarOverlay.h.

◆ m_ScalarBar

QmitkScalarBar* QmitkScalarBarOverlay::m_ScalarBar

protected

The internal QmitkScalarBar widget.

Definition at line 97 of file QmitkScalarBarOverlay.h.

The documentation for this class was generated from the following file:

QmitkScalarBarOverlay.h
