QmitkScalarBar Class Reference

A widget that draws a scale bar with subdivision lines for spatial reference. More...

#include <QmitkScalarBar.h>

Inheritance diagram for QmitkScalarBar:

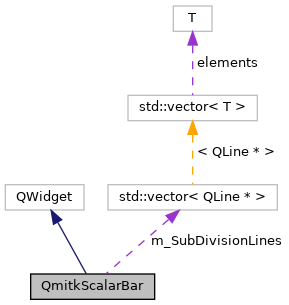

Collaboration diagram for QmitkScalarBar:

Public Types
enum	alignment { vertical , horizontal }
	Orientation of the scalar bar. More...

Public Member Functions
	QmitkScalarBar (QWidget *parent=nullptr)
	Constructor. More...
	~QmitkScalarBar () override
	Destructor. More...
virtual void	SetScaleFactor (double scale)
	Sets the scale factor (mm per pixel) and resizes the bar accordingly. More...
virtual void	SetAlignment (alignment align)
	Sets the orientation of the scalar bar. More...
void	SetPen (const QPen &pen)
	Sets the pen used to draw the scalar bar lines. More...
void	SetNumberOfSubdivisions (unsigned int subs)
	Sets the number of subdivision tick marks. More...
unsigned int	GetNumberOfSubdivisions ()
	Returns the current number of subdivision tick marks. More...

Protected Member Functions
void	paintEvent (QPaintEvent *event) override
void	SetupGeometry (alignment align)
void	CleanUpLines ()

Protected Attributes
alignment	m_Alignment
double	m_ScaleFactor
QLine *	m_MainLine
std::vector< QLine * >	m_SubDivisionLines
QPen	m_Pen
unsigned int	m_NumberOfSubDivisions

Detailed Description

A widget that draws a scale bar with subdivision lines for spatial reference.

The scalar bar can be oriented either vertically or horizontally. It automatically adapts its number of subdivisions and size based on the parent widget dimensions and the given scale factor (mm-per-pixel). The bar is drawn using a configurable QPen.

See also

QmitkScalarBarOverlay

Definition at line 32 of file QmitkScalarBar.h.

Member Enumeration Documentation

alignment

enum QmitkScalarBar::alignment

Orientation of the scalar bar.

Enumerator
vertical	Vertical orientation (default)
horizontal	Horizontal orientation.

Definition at line 39 of file QmitkScalarBar.h.

Constructor & Destructor Documentation

QmitkScalarBar()

QmitkScalarBar::QmitkScalarBar

(

QWidget *

parent = nullptr

)

Constructor.

Parameters

[in]

parent

Optional parent widget.

~QmitkScalarBar()

QmitkScalarBar::~QmitkScalarBar ( )

override

Destructor.

Member Function Documentation

CleanUpLines()

void QmitkScalarBar::CleanUpLines ( )

protected

GetNumberOfSubdivisions()

unsigned int QmitkScalarBar::GetNumberOfSubdivisions

(

)

Returns the current number of subdivision tick marks.

Returns

The number of subdivisions.

paintEvent()

void QmitkScalarBar::paintEvent ( QPaintEvent *  event )

overrideprotected

SetAlignment()

virtual void QmitkScalarBar::SetAlignment ( alignment  align )

virtual

Sets the orientation of the scalar bar.

Parameters

[in]

align

The desired alignment (vertical or horizontal).

SetNumberOfSubdivisions()

void QmitkScalarBar::SetNumberOfSubdivisions

(

unsigned int

subs

)

Sets the number of subdivision tick marks.

Parameters

[in]

subs

The number of subdivisions.

SetPen()

void QmitkScalarBar::SetPen

(

const QPen &

pen

)

Sets the pen used to draw the scalar bar lines.

Parameters

[in]

pen

The QPen to use for rendering.

SetScaleFactor()

virtual void QmitkScalarBar::SetScaleFactor ( double  scale )

virtual

Sets the scale factor (mm per pixel) and resizes the bar accordingly.

The method dynamically adjusts the number of subdivisions and the widget size to fit within a reasonable proportion of the parent widget.

Parameters

[in]

scale

The scale factor in mm per pixel.

SetupGeometry()

void QmitkScalarBar::SetupGeometry ( alignment  align )

protected

Member Data Documentation

m_Alignment

alignment QmitkScalarBar::m_Alignment

protected

Definition at line 96 of file QmitkScalarBar.h.

m_MainLine

QLine* QmitkScalarBar::m_MainLine

protected

Definition at line 100 of file QmitkScalarBar.h.

m_NumberOfSubDivisions

unsigned int QmitkScalarBar::m_NumberOfSubDivisions

protected

Definition at line 106 of file QmitkScalarBar.h.

m_Pen

QPen QmitkScalarBar::m_Pen

protected

Definition at line 104 of file QmitkScalarBar.h.

m_ScaleFactor

double QmitkScalarBar::m_ScaleFactor

protected

Definition at line 98 of file QmitkScalarBar.h.

m_SubDivisionLines

std::vector<QLine *> QmitkScalarBar::m_SubDivisionLines

protected

Definition at line 102 of file QmitkScalarBar.h.

---

The documentation for this class was generated from the following file:

• QmitkScalarBar.h
