controller that manages the positioning and stacking of QmitkOverlays More...

#include <QmitkOverlayController.h>

Inheritance diagram for QmitkOverlayController:

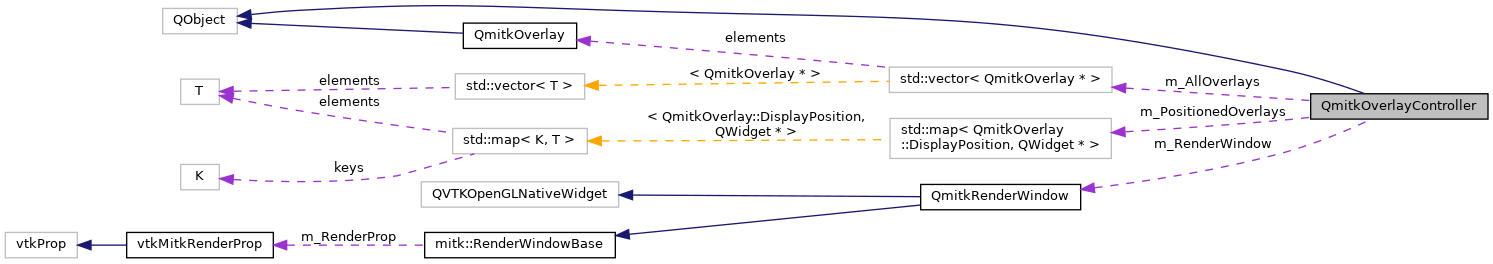

Collaboration diagram for QmitkOverlayController:

[legend]

Public Slots
void	AdjustAllOverlayPosition ()
	Repositions all overlay container widgets to match the current render window geometry. More...

void	AdjustOverlayPosition (QmitkOverlay::DisplayPosition displayPosition)
	Repositions the overlay container widget at the specified display position. More...

void	UpdateAllOverlays ()
	Updates the data of all managed overlays by calling their GenerateData() methods. More...

void	UpdateOverlayData (QmitkOverlay *overlay)
	Updates the data of a single overlay and readjusts its position. More...

Public Member Functions
	QmitkOverlayController (QmitkRenderWindow rw, mitk::PropertyList pl=nullptr)
	Constructor. More...

	~QmitkOverlayController () override
	Destructor. More...

void	AddOverlay (QmitkOverlay *overlay)
	Adds an overlay to the managed render window. More...

void	RemoveOverlay (QmitkOverlay *overlay)
	Removes a specific overlay from the render window. More...

void	RemoveAllOverlays ()
	Removes all overlays from the render window. More...

void	SetOverlayVisibility (bool visible)
	Sets the visibility of all overlay container widgets and their contents. More...

void	SetPropertyList (mitk::PropertyList *pl)
	Sets the render-window-specific PropertyList. More...

Protected Types
typedef std::map< QmitkOverlay::DisplayPosition, QWidget * >	OverlayPositionMap

typedef std::vector< QmitkOverlay * >	OverlayVector

Protected Member Functions
void	InitializeOverlayLayout ()
	setting up the widgets that will hold all overlays More...

virtual void	AlignOverlays ()
	re-aligning the overlays - not implemented yet More...

void	InitializeWidget (QmitkOverlay::DisplayPosition pos)
	initializes one QWidget - internally used by InitializeOverlayLayout() More...

void	RestackOverlays (QmitkOverlay::DisplayPosition pos)

QSize	GetMinimumSizeForWidget (QmitkOverlay::DisplayPosition displayPosition)

Protected Attributes
OverlayVector	m_AllOverlays
	all QmitkOverlays that are currently added More...

OverlayPositionMap	m_PositionedOverlays
	all possible positions and the QWidgets representing the corresponding QmitkOverlays More...

QmitkRenderWindow *	m_RenderWindow
	RenderWindow that all Overlays will be added to. More...

mitk::PropertyList::Pointer	m_PropertyList
	PropertyList for RenderWindow-specific properties. More...

Detailed Description

controller that manages the positioning and stacking of QmitkOverlays

This controller manages all QmitkOverlays of one QmitkRenderWindow.

When constructed, it creates one QWidget for each possible display-position and sets the appropriate attributes and layouts.

It is possible to add new Overlays using AddOverlay( QmitkOverlay ). This overlay will be added to the correct Widget according to its destined position (stored in QmitkOverlay). If this widget already holds an overlay, the layer-property is taken into account. If no layer has been set, the overlay will be appended at the end.

It is possible to set the visibility of all overlays at a time using SetOverlayVisibility(bool).

RenderWindow specific properties can be set using the internal mitk::PropertyList. This propertyList and the 'default' propertyList of the RenderingManager will be concatenated before the overlay is set up. If one property exists in both propertyLists, the one in the QmitkOverlayController will be used!

See also: QmitkOverlay; QmitkRenderWindow

Definition at line 52 of file QmitkOverlayController.h.

Member Typedef Documentation

◆ OverlayPositionMap

typedef std::map<QmitkOverlay::DisplayPosition, QWidget *> QmitkOverlayController::OverlayPositionMap

protected

Definition at line 161 of file QmitkOverlayController.h.

◆ OverlayVector

typedef std::vector<QmitkOverlay *> QmitkOverlayController::OverlayVector

protected

Definition at line 162 of file QmitkOverlayController.h.

Constructor & Destructor Documentation

◆ QmitkOverlayController()

QmitkOverlayController::QmitkOverlayController	(	QmitkRenderWindow *	rw,
		mitk::PropertyList *	pl = `nullptr`
	)

Constructor.

Initializes overlay container widgets for all eight display positions and connects to the render window's moved() signal for automatic repositioning.

Parameters

[in]	rw	The QmitkRenderWindow that overlays will be displayed on. Must not be nullptr.
[in]	pl	Optional PropertyList with render-window-specific properties.

◆ ~QmitkOverlayController()

QmitkOverlayController::~QmitkOverlayController ( )

override

Destructor.

Member Function Documentation

◆ AddOverlay()

void QmitkOverlayController::AddOverlay ( QmitkOverlay * overlay )

Adds an overlay to the managed render window.

The overlay is placed in the container widget corresponding to its display position. Its GenerateData() method is called with the concatenated property list, and the layout is restacked and repositioned.

Parameters

[in] overlay The overlay to add. Ignored if nullptr.

◆ AdjustAllOverlayPosition

void QmitkOverlayController::AdjustAllOverlayPosition ( )

slot

Repositions all overlay container widgets to match the current render window geometry.

Called automatically when the render window is moved.

◆ AdjustOverlayPosition

void QmitkOverlayController::AdjustOverlayPosition ( QmitkOverlay::DisplayPosition displayPosition )

slot

Repositions the overlay container widget at the specified display position.

Parameters

[in] displayPosition The display position whose container widget should be repositioned.

◆ AlignOverlays()

virtual void QmitkOverlayController::AlignOverlays ( )

protectedvirtual

re-aligning the overlays - not implemented yet

◆ GetMinimumSizeForWidget()

QSize QmitkOverlayController::GetMinimumSizeForWidget ( QmitkOverlay::DisplayPosition displayPosition )

protected

◆ InitializeOverlayLayout()

void QmitkOverlayController::InitializeOverlayLayout ( )

protected

setting up the widgets that will hold all overlays

This method sets up the 8 QWidgets that will later hold all QmitkOverlays. This includes the correct setting of layouts, alignments and the widget attributes necessary to achieve a translucent background and correct rendering on all platforms.

◆ InitializeWidget()

void QmitkOverlayController::InitializeWidget ( QmitkOverlay::DisplayPosition pos )

protected

initializes one QWidget - internally used by InitializeOverlayLayout()

◆ RemoveAllOverlays()

void QmitkOverlayController::RemoveAllOverlays ( )

Removes all overlays from the render window.

All overlay widgets are unparented, hidden, and scheduled for deletion.

◆ RemoveOverlay()

void QmitkOverlayController::RemoveOverlay ( QmitkOverlay * overlay )

Removes a specific overlay from the render window.

The overlay's widget is unparented and hidden, and the overlay is scheduled for deletion.

Parameters

[in] overlay The overlay to remove. Ignored if nullptr.

◆ RestackOverlays()

void QmitkOverlayController::RestackOverlays ( QmitkOverlay::DisplayPosition pos )

protected

◆ SetOverlayVisibility()

void QmitkOverlayController::SetOverlayVisibility ( bool visible )

Sets the visibility of all overlay container widgets and their contents.

Parameters

[in] visible If true, all overlays are shown; if false, all are hidden.

◆ SetPropertyList()

void QmitkOverlayController::SetPropertyList ( mitk::PropertyList * pl )

Sets the render-window-specific PropertyList.

Parameters

[in] pl The new PropertyList.

◆ UpdateAllOverlays

void QmitkOverlayController::UpdateAllOverlays ( )

slot

Updates the data of all managed overlays by calling their GenerateData() methods.

◆ UpdateOverlayData

void QmitkOverlayController::UpdateOverlayData ( QmitkOverlay * overlay )

slot

Updates the data of a single overlay and readjusts its position.

Parameters

[in] overlay The overlay to update. Ignored if nullptr.

Member Data Documentation

◆ m_AllOverlays

OverlayVector QmitkOverlayController::m_AllOverlays

protected

all QmitkOverlays that are currently added

Definition at line 167 of file QmitkOverlayController.h.

◆ m_PositionedOverlays

OverlayPositionMap QmitkOverlayController::m_PositionedOverlays

protected

all possible positions and the QWidgets representing the corresponding QmitkOverlays

Definition at line 172 of file QmitkOverlayController.h.

◆ m_PropertyList

mitk::PropertyList::Pointer QmitkOverlayController::m_PropertyList

protected

PropertyList for RenderWindow-specific properties.

Definition at line 182 of file QmitkOverlayController.h.

◆ m_RenderWindow

QmitkRenderWindow* QmitkOverlayController::m_RenderWindow

protected

RenderWindow that all Overlays will be added to.

Definition at line 177 of file QmitkOverlayController.h.

The documentation for this class was generated from the following file:

QmitkOverlayController.h
