Tree model that represents mitk::ImageStatisticsContainer data in the Qt model/view framework. More...

#include <QmitkImageStatisticsTreeModel.h>

Inheritance diagram for QmitkImageStatisticsTreeModel:

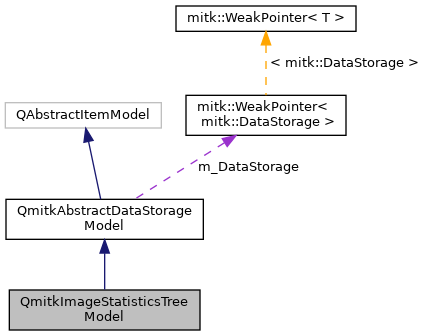

Collaboration diagram for QmitkImageStatisticsTreeModel:

[legend]

Signals
void	dataAvailable ()
	Emitted when new statistics data becomes available in the model. More...

void	modelChanged ()
	Emitted when the model rebuild is finished (usually shortly after dataAvailable()). More...

Public Member Functions
	QmitkImageStatisticsTreeModel (QObject *parent=nullptr)
	Constructs the tree model. More...

	~QmitkImageStatisticsTreeModel () override
	Destructor. Disconnects from the data storage. More...

void	SetImageNodes (const std::vector< mitk::DataNode::ConstPointer > &nodes)
	Sets the image nodes whose statistics should be displayed. More...

void	SetMaskNodes (const std::vector< mitk::DataNode::ConstPointer > &nodes)
	Sets the mask nodes whose statistics should be displayed. More...

void	Clear ()
	Clears all image nodes, mask nodes, statistics, and resets the model. More...

void	SetIgnoreZeroValueVoxel (bool _arg)
	Sets whether zero-valued voxels should be ignored when selecting statistics. More...

bool	GetIgnoreZeroValueVoxel () const
	Returns whether zero-valued voxels are currently being ignored. More...

void	SetHistogramNBins (unsigned int nbins)
	Sets the number of histogram bins used to select matching statistics. More...

unsigned int	GetHistogramNBins () const
	Returns the current number of histogram bins. More...

Qt::ItemFlags	flags (const QModelIndex &index) const override
	Returns the item flags for the given model index. More...

QVariant	data (const QModelIndex &index, int role) const override
	Returns the data for the given index and role. More...

QVariant	headerData (int section, Qt::Orientation orientation, int role) const override
	Returns the header data for the given section and orientation. More...

int	rowCount (const QModelIndex &parent=QModelIndex()) const override
	Returns the number of child rows under the given parent. More...

int	columnCount (const QModelIndex &parent=QModelIndex()) const override
	Returns the number of columns (statistic names count + 1). More...

QModelIndex	index (int row, int column, const QModelIndex &parent=QModelIndex()) const override
	Returns the model index for the specified row, column, and parent. More...

QModelIndex	parent (const QModelIndex &child) const override
	Returns the parent model index of the given child. More...

Public Member Functions inherited from QmitkAbstractDataStorageModel
	~QmitkAbstractDataStorageModel () override

void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage and registers node event listeners. More...

mitk::DataStorage::Pointer	GetDataStorage () const
	Returns a locked pointer to the current data storage. More...

void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
	Sets the node predicate and triggers a model update. More...

const mitk::NodePredicateBase *	GetNodePredicate () const
	Returns the currently set node predicate. More...

Protected Member Functions
void	DataStorageChanged () override

void	NodePredicateChanged () override

void	NodeAdded (const mitk::DataNode *node) override

void	NodeChanged (const mitk::DataNode *node) override

void	NodeRemoved (const mitk::DataNode *node) override

Protected Member Functions inherited from QmitkAbstractDataStorageModel
	QmitkAbstractDataStorageModel (QObject *parent=nullptr)

	QmitkAbstractDataStorageModel (mitk::DataStorage dataStorage, QObject parent=nullptr)

Additional Inherited Members
Protected Attributes inherited from QmitkAbstractDataStorageModel
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_NodePredicate

Detailed Description

Tree model that represents mitk::ImageStatisticsContainer data in the Qt model/view framework.

This model queries the data storage for ImageStatisticsContainer objects matching the configured image nodes, mask nodes, histogram bin count, and zero-voxel ignore flag. The results are presented in a hierarchical tree structure:

Level 1: Image
Level 2: Mask (if present)
Level 3: Label instances (if the mask has multiple labels)
Level 4: Time steps (if more than one exists)

See also: QmitkAbstractDataStorageModel; mitk::ImageStatisticsContainer; QmitkImageStatisticsWidget

Definition at line 42 of file QmitkImageStatisticsTreeModel.h.

Constructor & Destructor Documentation

◆ QmitkImageStatisticsTreeModel()

QmitkImageStatisticsTreeModel::QmitkImageStatisticsTreeModel ( QObject * parent = nullptr )

Constructs the tree model.

Parameters

[in] parent Optional parent QObject.

◆ ~QmitkImageStatisticsTreeModel()

QmitkImageStatisticsTreeModel::~QmitkImageStatisticsTreeModel ( )

override

Destructor. Disconnects from the data storage.

Member Function Documentation

◆ Clear()

void QmitkImageStatisticsTreeModel::Clear ( )

Clears all image nodes, mask nodes, statistics, and resets the model.

◆ columnCount()

int QmitkImageStatisticsTreeModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

override

Returns the number of columns (statistic names count + 1).

Parameters

[in] parent The parent model index (unused).

Returns: The number of columns.

◆ data()

QVariant QmitkImageStatisticsTreeModel::data	(	const QModelIndex &	index,
		int	role
	)		const

override

Returns the data for the given index and role.

Supports Qt::DisplayRole for statistics values and Qt::DecorationRole for label color icons and WIP hourglass indicators in the first column.

Parameters

[in]	index	The model index to query.
[in]	role	The data role (e.g. Qt::DisplayRole, Qt::DecorationRole).

Returns: The data as QVariant, or an invalid QVariant if not applicable.

◆ dataAvailable

void QmitkImageStatisticsTreeModel::dataAvailable ( )

signal

Emitted when new statistics data becomes available in the model.

◆ DataStorageChanged()

void QmitkImageStatisticsTreeModel::DataStorageChanged ( )

overrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

◆ flags()

Qt::ItemFlags QmitkImageStatisticsTreeModel::flags ( const QModelIndex & index ) const

override

Returns the item flags for the given model index.

Parameters

[in] index The model index to query.

Returns: The Qt item flags for the index.

◆ GetHistogramNBins()

unsigned int QmitkImageStatisticsTreeModel::GetHistogramNBins ( ) const

Returns the current number of histogram bins.

Returns: The number of histogram bins.

◆ GetIgnoreZeroValueVoxel()

bool QmitkImageStatisticsTreeModel::GetIgnoreZeroValueVoxel ( ) const

Returns whether zero-valued voxels are currently being ignored.

Returns: True if zero-valued voxels are ignored; false otherwise.

◆ headerData()

QVariant QmitkImageStatisticsTreeModel::headerData	(	int	section,
		Qt::Orientation	orientation,
		int	role
	)		const

override

Returns the header data for the given section and orientation.

The first column header is dynamically generated based on whether masks and multiple time steps are present. Subsequent columns show statistic names.

Parameters

[in]	section	The column index.
[in]	orientation	The header orientation (only Qt::Horizontal is supported).
[in]	role	The data role (only Qt::DisplayRole is supported).

Returns: The header text as QVariant.

◆ index()

QModelIndex QmitkImageStatisticsTreeModel::index	(	int	row,
		int	column,
		const QModelIndex &	parent = `QModelIndex()`
	)		const

override

Returns the model index for the specified row, column, and parent.

Parameters

[in]	row	The row number.
[in]	column	The column number.
[in]	parent	The parent model index.

Returns: The model index for the child, or an invalid index if it does not exist.

◆ modelChanged

void QmitkImageStatisticsTreeModel::modelChanged ( )

signal

Emitted when the model rebuild is finished (usually shortly after dataAvailable()).

◆ NodeAdded()

void QmitkImageStatisticsTreeModel::NodeAdded ( const mitk::DataNode * node )

overrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

◆ NodeChanged()

void QmitkImageStatisticsTreeModel::NodeChanged ( const mitk::DataNode * node )

overrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

◆ NodePredicateChanged()

void QmitkImageStatisticsTreeModel::NodePredicateChanged ( )

overrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

◆ NodeRemoved()

void QmitkImageStatisticsTreeModel::NodeRemoved ( const mitk::DataNode * node )

overrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

◆ parent()

QModelIndex QmitkImageStatisticsTreeModel::parent ( const QModelIndex & child ) const

override

Returns the parent model index of the given child.

Parameters

[in] child The child model index.

Returns: The parent model index, or an invalid index if the child is at the root level.

◆ rowCount()

int QmitkImageStatisticsTreeModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

override

Returns the number of child rows under the given parent.

Parameters

[in] parent The parent model index. Invalid index refers to the root.

Returns: The number of child rows.

◆ SetHistogramNBins()

void QmitkImageStatisticsTreeModel::SetHistogramNBins ( unsigned int nbins )

Sets the number of histogram bins used to select matching statistics.

Triggers a model reset and rebuild if the value changes.

Parameters

[in] nbins The number of histogram bins.

◆ SetIgnoreZeroValueVoxel()

void QmitkImageStatisticsTreeModel::SetIgnoreZeroValueVoxel ( bool _arg )

Sets whether zero-valued voxels should be ignored when selecting statistics.

Triggers a model reset and rebuild if the value changes.

Parameters

[in] _arg True to ignore zero-valued voxels; false to include them.

◆ SetImageNodes()

void QmitkImageStatisticsTreeModel::SetImageNodes ( const std::vector< mitk::DataNode::ConstPointer > & nodes )

Sets the image nodes whose statistics should be displayed.

Internally resolves each image's time steps for the hierarchical model. Triggers a model reset and rebuild.

Parameters

[in] nodes Vector of image data nodes.

◆ SetMaskNodes()

void QmitkImageStatisticsTreeModel::SetMaskNodes ( const std::vector< mitk::DataNode::ConstPointer > & nodes )

Sets the mask nodes whose statistics should be displayed.

Handles the special case where a single-timestep mask is applied to a multi-timestep image. Triggers a model reset and rebuild.

Parameters

[in] nodes Vector of mask data nodes.

The documentation for this class was generated from the following file:

QmitkImageStatisticsTreeModel.h
