Editable color swatch for a mitk::ColorProperty. More...

#include <QmitkColorPropertyEditor.h>

Inheritance diagram for QmitkColorPropertyEditor:

[legend]

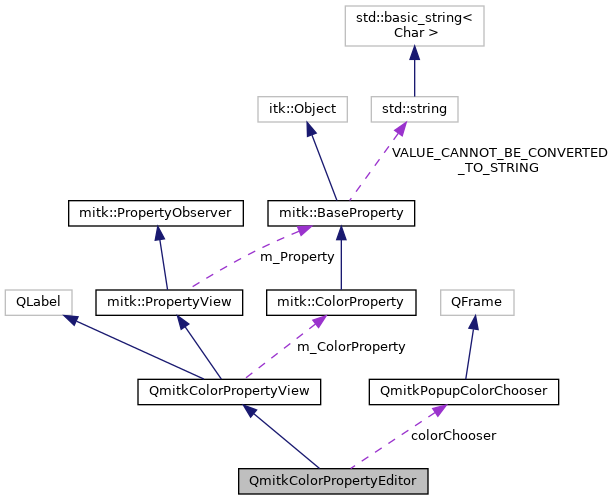

Collaboration diagram for QmitkColorPropertyEditor:

[legend]

Public Member Functions
	QmitkColorPropertyEditor (const mitk::ColorProperty property, QWidget parent)
	Construct an editor for the given color property. More...

	~QmitkColorPropertyEditor () override
	Destructor. Decrements the shared color chooser reference count. More...

Public Member Functions inherited from QmitkColorPropertyView
	QmitkColorPropertyView (const mitk::ColorProperty property, QWidget parent)
	Construct a color view for the given property. More...

	~QmitkColorPropertyView () override
	Destructor. More...

Public Member Functions inherited from mitk::PropertyView
	PropertyView (const mitk::BaseProperty *property)
	Constructor. Begins observing the given property. More...

	~PropertyView () override
	Destructor. Removes the ITK observer from the property. More...

void	OnModified (const itk::EventObject &e)
	Callback for itk::ModifiedEvent on the observed property. More...

void	OnDelete (const itk::EventObject &e)
	Callback for itk::DeleteEvent on the observed property. More...

Public Member Functions inherited from mitk::PropertyObserver
	PropertyObserver ()
	Constructor. More...

virtual	~PropertyObserver ()
	Virtual destructor. More...

Protected Slots
void	onColorSelected (QColor)

Protected Member Functions
void	mousePressEvent (QMouseEvent *) override

void	mouseReleaseEvent (QMouseEvent *) override

Protected Member Functions inherited from QmitkColorPropertyView
void	PropertyChanged () override
	Called when the observed property value has changed. More...

void	PropertyRemoved () override
	Called when the observed property is about to be deleted. More...

void	DisplayColor ()

Protected Member Functions inherited from mitk::PropertyObserver
void	BeginModifyProperty ()
	Marks the beginning of a self-initiated property modification. More...

void	EndModifyProperty ()
	Marks the end of a self-initiated property modification. More...

Static Protected Attributes
static QmitkPopupColorChooser *	colorChooser

static int	colorChooserRefCount

Additional Inherited Members
Protected Attributes inherited from QmitkColorPropertyView
const mitk::ColorProperty *	m_ColorProperty

QPalette	m_WidgetPalette

Protected Attributes inherited from mitk::PropertyView
const mitk::BaseProperty *	m_Property
	The observed property (read-only). More...

Protected Attributes inherited from mitk::PropertyObserver
unsigned long	m_ModifiedTag
	ITK observer tag for the ModifiedEvent. More...

unsigned long	m_DeleteTag
	ITK observer tag for the DeleteEvent. More...

bool	m_SelfCall
	Guard flag to prevent re-entrant notification. More...

Detailed Description

Editable color swatch for a mitk::ColorProperty.

Extends QmitkColorPropertyView with editing capability. On mouse press, a QmitkPopupColorChooser appears allowing the user to pick a new color. The selected color is written back to the associated mitk::ColorProperty and a rendering update is requested.

A shared static QmitkPopupColorChooser instance is used across all editors.

See also: QmitkColorPropertyView, QmitkPopupColorChooser

Definition at line 113 of file QmitkColorPropertyEditor.h.

Constructor & Destructor Documentation

◆ QmitkColorPropertyEditor()

QmitkColorPropertyEditor::QmitkColorPropertyEditor	(	const mitk::ColorProperty *	property,
		QWidget *	parent
	)

Construct an editor for the given color property.

Parameters

[in]	property	The mitk::ColorProperty to edit.
[in]	parent	The parent widget.

◆ ~QmitkColorPropertyEditor()

QmitkColorPropertyEditor::~QmitkColorPropertyEditor ( )

override

Destructor. Decrements the shared color chooser reference count.

Member Function Documentation

◆ mousePressEvent()

void QmitkColorPropertyEditor::mousePressEvent ( QMouseEvent * )

overrideprotected

◆ mouseReleaseEvent()

void QmitkColorPropertyEditor::mouseReleaseEvent ( QMouseEvent * )

overrideprotected

◆ onColorSelected

void QmitkColorPropertyEditor::onColorSelected ( QColor )

protectedslot

Member Data Documentation

◆ colorChooser

QmitkPopupColorChooser* QmitkColorPropertyEditor::colorChooser

staticprotected

Definition at line 132 of file QmitkColorPropertyEditor.h.

◆ colorChooserRefCount

int QmitkColorPropertyEditor::colorChooserRefCount

staticprotected

Definition at line 133 of file QmitkColorPropertyEditor.h.

The documentation for this class was generated from the following file:

QmitkColorPropertyEditor.h
