The VtkAnnotation2D class is the basis for all VTK based Annotation which create a vtkActor2D element that will be drawn on the renderer. More...

#include <mitkVtkAnnotation2D.h>

Inheritance diagram for mitk::VtkAnnotation2D:

[legend]

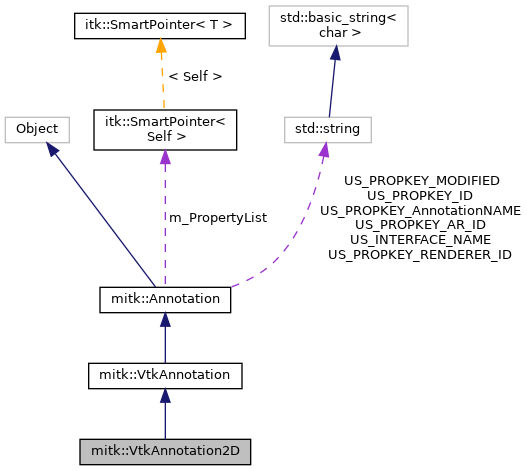

Collaboration diagram for mitk::VtkAnnotation2D:

[legend]

Public Member Functions
	mitkClassMacro (VtkAnnotation2D, VtkAnnotation)

Annotation::Bounds	GetBoundsOnDisplay (BaseRenderer *renderer) const override
	Returns position and size of the Annotation on the display. More...

void	SetBoundsOnDisplay (BaseRenderer *renderer, const Bounds &bounds) override
	Sets position and size of the Annotation on the display. More...

void	SetPosition2D (const Point2D &position2D)

Point2D	GetPosition2D () const

void	SetOffsetVector (const Point2D &OffsetVector)

Point2D	GetOffsetVector () const

Public Member Functions inherited from mitk::VtkAnnotation
	mitkClassMacro (VtkAnnotation, Annotation)

void	Update (BaseRenderer *renderer) override
	Applies all properties and should be called before the rendering procedure. More...

void	AddToBaseRenderer (BaseRenderer *renderer) override
	Adds the Annotation to the specified renderer. Update Annotation should be called soon in order to apply all properties. More...

void	AddToRenderer (BaseRenderer renderer, vtkRenderer vtkrenderer) override
	Adds the Annotation to the specified renderer. Update Annotation should be called soon in order to apply all properties. More...

void	RemoveFromRenderer (BaseRenderer renderer, vtkRenderer vtkrenderer) override
	Removes the Annotation from the specified renderer. It is not visible anymore then. More...

void	RemoveFromBaseRenderer (BaseRenderer *renderer) override
	Removes the Annotation from the specified renderer. It is not visible anymore then. More...

void	Paint (BaseRenderer *renderer)
	Paints the Annotation. More...

Public Member Functions inherited from mitk::Annotation
void	SetProperty (const std::string &propertyKey, const BaseProperty::Pointer &property)
	Set the property (instance of BaseProperty) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-value. More...

void	ReplaceProperty (const std::string &propertyKey, const BaseProperty::Pointer &property)
	Replace the property (instance of BaseProperty) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-reference. More...

void	AddProperty (const std::string &propertyKey, const BaseProperty::Pointer &property, bool overwrite=false)
	Add the property (instance of BaseProperty) if it does not exist (or always if overwrite is true) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-value. More...

void	ConcatenatePropertyList (PropertyList *pList, bool replace=false)
	Add values from another PropertyList. More...

mitk::BaseProperty *	GetProperty (const std::string &propertyKey) const
	Get the property (instance of BaseProperty) with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList. More...

template<typename T >
bool	GetProperty (itk::SmartPointer< T > &property, const std::string &propertyKey) const
	Get the property of type T with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList. More...

template<typename T >
bool	GetProperty (T *&property, const std::string &propertyKey) const
	Get the property of type T with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList. More...

template<typename T >
bool	GetPropertyValue (const std::string &propertyKey, T &value) const
	Convenience access method for GenericProperty<T> properties (T being the type of the second parameter) More...

bool	GetBoolProperty (const std::string &propertyKey, bool &boolValue) const
	Convenience access method for bool properties (instances of BoolProperty) More...

bool	GetIntProperty (const std::string &propertyKey, int &intValue) const
	Convenience access method for int properties (instances of IntProperty) More...

bool	GetFloatProperty (const std::string &propertyKey, float &floatValue) const
	Convenience access method for float properties (instances of FloatProperty) More...

bool	GetDoubleProperty (const std::string &propertyKey, double &doubleValue) const
	Convenience access method for double properties (instances of DoubleProperty) More...

bool	GetStringProperty (const std::string &propertyKey, std::string &string) const
	Convenience access method for string properties (instances of StringProperty) More...

void	SetIntProperty (const std::string &propertyKey, int intValue)
	Convenience method for setting int properties (instances of IntProperty) More...

void	SetBoolProperty (const std::string &propertyKey, bool boolValue)
	Convenience method for setting int properties (instances of IntProperty) More...

void	SetFloatProperty (const std::string &propertyKey, float floatValue)
	Convenience method for setting int properties (instances of IntProperty) More...

void	SetDoubleProperty (const std::string &propertyKey, double doubleValue)
	Convenience method for setting int properties (instances of IntProperty) More...

void	SetStringProperty (const std::string &propertyKey, const std::string &string)
	Convenience method for setting int properties (instances of IntProperty) More...

bool	IsOn (const std::string &propertyKey, bool defaultIsOn=true) const
	Convenience access method for boolean properties (instances of BoolProperty). Return value is the value of the property. If the property is not found, the value of defaultIsOn is returned. More...

bool	GetName (std::string &nodeName, const std::string &propertyKey="name") const
	Convenience access method for accessing the name of an object (instance of StringProperty with property-key "name") More...

virtual std::string	GetName () const
	Extra convenience access method for accessing the name of an object (instance of StringProperty with property-key "name"). More...

virtual void	SetName (const std::string &name)
	Extra convenience access method to set the name of an object. More...

bool	GetColor (float rgb[], const std::string &propertyKey="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

void	SetColor (const mitk::Color &color, const std::string &propertyKey="color")
	Convenience method for setting color properties (instances of ColorProperty) More...

void	SetColor (float red, float green, float blue, const std::string &propertyKey="color")
	Convenience method for setting color properties (instances of ColorProperty) More...

void	SetColor (const float rgb[], const std::string &propertyKey="color")
	Convenience method for setting color properties (instances of ColorProperty) More...

bool	GetOpacity (float &opacity, const std::string &propertyKey="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

void	SetOpacity (float opacity, const std::string &propertyKey="opacity")
	Convenience method for setting opacity properties (instances of FloatProperty) More...

void	SetText (std::string text)

std::string	GetText () const

void	SetFontSize (int fontSize)

int	GetFontSize () const

bool	GetVisibility (bool &visible, const std::string &propertyKey="visible") const
	Convenience access method for visibility properties (instances of BoolProperty with property-key "visible") More...

bool	IsVisible (const std::string &propertyKey="visible", bool defaultIsOn=true) const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

void	SetVisibility (bool visible, const std::string &propertyKey="visible")
	Convenience method for setting visibility properties (instances of BoolProperty) More...

void	SetForceInForeground (bool forceForeground)

bool	IsForceInForeground () const

PropertyList *	GetPropertyList () const

std::string	GetMicroserviceID ()
	Returns the id that this device is registered with. The id will only be valid, if the Annotation has been registered using RegisterAsMicroservice(). More...

virtual void	RegisterAsMicroservice (us::ServiceProperties props)
	Registers this object as a Microservice, making it available to every module and/or plugin. To unregister, call UnregisterMicroservice(). More...

virtual void	UnRegisterMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. More...

void	AnnotationModified ()

virtual std::vector< std::string >	GetClassHierarchy () const

virtual const char *	GetClassName () const

Protected Member Functions
vtkProp *	GetVtkProp (BaseRenderer *renderer) const override
	This method is implemented by the specific VTKAnnotation in order to create the element as a vtkProp. More...

void	UpdateVtkAnnotation (BaseRenderer *renderer) override

virtual void	UpdateVtkAnnotation2D (BaseRenderer *renderer)=0

virtual vtkActor2D *	GetVtkActor2D (BaseRenderer *renderer) const =0

	VtkAnnotation2D ()
	explicit constructor which disallows implicit conversions More...

	~VtkAnnotation2D () override
	virtual destructor in order to derive from this class More...

Protected Member Functions inherited from mitk::VtkAnnotation
	VtkAnnotation ()
	explicit constructor which disallows implicit conversions More...

	~VtkAnnotation () override
	virtual destructor in order to derive from this class More...

Protected Member Functions inherited from mitk::Annotation
	Annotation ()
	explicit constructor which disallows implicit conversions More...

	~Annotation () override
	virtual destructor in order to derive from this class More...

void	SetUSProperty (const std::string &propertyKey, us::Any value)

Additional Inherited Members
Public Types inherited from mitk::Annotation
typedef Annotation	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Member Functions inherited from mitk::Annotation
static const char *	GetStaticNameOfClass ()

Static Public Attributes inherited from mitk::Annotation
static const std::string	US_INTERFACE_NAME
	These Constants are used in conjunction with Microservices. More...

static const std::string	US_PROPKEY_AnnotationNAME

static const std::string	US_PROPKEY_ID

static const std::string	US_PROPKEY_MODIFIED

static const std::string	US_PROPKEY_RENDERER_ID

static const std::string	US_PROPKEY_AR_ID

Protected Attributes inherited from mitk::Annotation
PropertyList::Pointer	m_PropertyList
	BaseRenderer-independent PropertyList. More...

itk::TimeStamp	m_DataReferenceChangedTime
	Timestamp of the last change of m_Data. More...
