#include <mitkUSImageLoggingFilter.h>

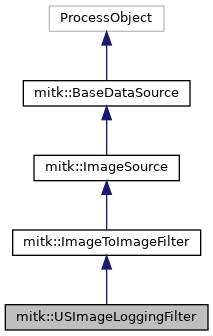

Inheritance diagram for mitk::USImageLoggingFilter:

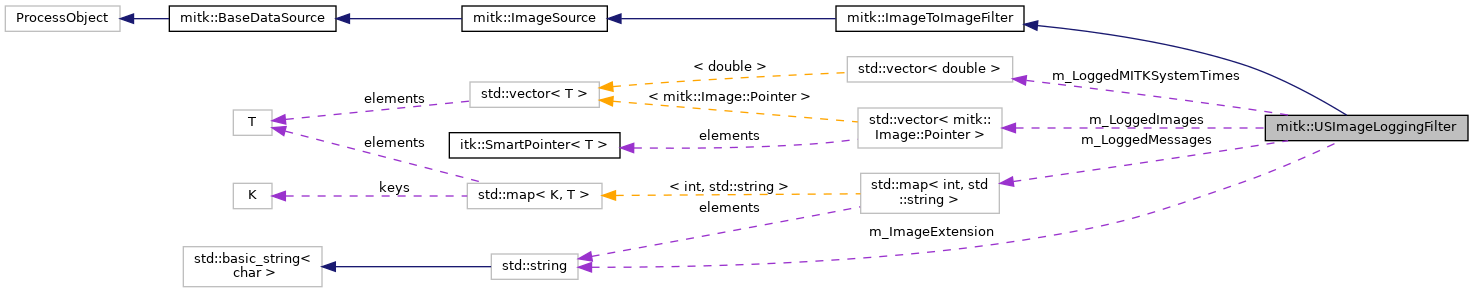

Collaboration diagram for mitk::USImageLoggingFilter:

[legend]

Public Member Functions
	mitkClassMacro (USImageLoggingFilter, mitk::ImageToImageFilter)

void	GenerateData () override

void	AddMessageToCurrentImage (std::string message)

void	SaveImages (std::string path, std::vector< std::string > &imageFilenames, std::string &csvFileName)

void	SaveImages (std::string path)

bool	SetImageFilesExtension (std::string extension)

Public Member Functions inherited from mitk::ImageToImageFilter
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)

virtual void	SetInput (unsigned int, const InputImageType *image)

InputImageType *	GetInput (void)

InputImageType *	GetInput (unsigned int idx)

const InputImageType *	GetInput (void) const

const InputImageType *	GetInput (unsigned int idx) const

Public Member Functions inherited from mitk::ImageSource
Pointer	Clone () const

OutputType *	GetOutput ()
	Get the output data of this image source object. More...

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Make a DataObject of the correct type to used as the specified output. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()

virtual const vtkImageData *	GetVtkImageData () const

Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageToImageFilter
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageSource
static const char *	GetStaticNameOfClass ()

static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Types
typedef std::vector< mitk::Image::Pointer >	ImageCollection

Protected Member Functions
	USImageLoggingFilter ()

	~USImageLoggingFilter () override

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	GenerateInputRequestedRegion () override

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()

	~BaseDataSource () override

Protected Attributes
mitk::RealTimeClock::Pointer	m_SystemTimeClock
	system time clock for system time tag More...

ImageCollection	m_LoggedImages
	An image collection for every input. The string identifies the input. More...

std::map< int, std::string >	m_LoggedMessages
	(Optional) messages for every logged image More...

std::vector< double >	m_LoggedMITKSystemTimes
	Logged system times for every logged image. More...

std::string	m_ImageExtension
	stores the image extension, default is ".nrrd" More...

Additional Inherited Members
Public Types inherited from mitk::ImageToImageFilter
typedef ImageToImageFilter	Self

typedef ImageSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::OutputImageRegionType	OutputImageRegionType

typedef mitk::Image	InputImageType

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef ImageSource	Self

typedef BaseDataSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self

typedef itk::ProcessObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef BaseData	OutputType

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Static Protected Member Functions inherited from mitk::ImageSource
static ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

An object of this class is a filter which saves/logs a clone of the current image whenever Update() is called. Additionally a timestamp of this image is saved. Optionally you can add messages. All data (images, timestamps and messages) is written to the harddisc when the method SaveImages(...) is called.

Caution: only supports logging of one input at the moment, multiple inputs are ignored!

Definition at line 32 of file mitkUSImageLoggingFilter.h.

Member Typedef Documentation

◆ ImageCollection

typedef std::vector<mitk::Image::Pointer> mitk::USImageLoggingFilter::ImageCollection

protected

Definition at line 79 of file mitkUSImageLoggingFilter.h.

Constructor & Destructor Documentation

◆ USImageLoggingFilter()

mitk::USImageLoggingFilter::USImageLoggingFilter ( )

protected

Definition at line 24 of file mitkUSImageLoggingFilter.cpp.

◆ ~USImageLoggingFilter()

mitk::USImageLoggingFilter::~USImageLoggingFilter ( )

overrideprotected

Definition at line 29 of file mitkUSImageLoggingFilter.cpp.

Member Function Documentation

◆ AddMessageToCurrentImage()

void mitk::USImageLoggingFilter::AddMessageToCurrentImage ( std::string message )

Adds a message to the current (last logged) image. This message is internally stored and written to the harddisc when SaveImages(...) is called.

Parameters

message The string which contains the message which is logged to the current image

Definition at line 80 of file mitkUSImageLoggingFilter.cpp.

References m_LoggedImages, and m_LoggedMessages.

◆ GenerateData()

void mitk::USImageLoggingFilter::GenerateData ( )

override

This method is internally called by the Update() mechanism of the pipeline. Don't call it directly.

Definition at line 33 of file mitkUSImageLoggingFilter.cpp.

References mitk::ImageToImageFilter::GetInput(), mitk::ImageSource::GetOutput(), m_LoggedImages, m_LoggedMITKSystemTimes, m_SystemTimeClock, and MITK_WARN.

◆ mitkClassMacro()

mitk::USImageLoggingFilter::mitkClassMacro	(	USImageLoggingFilter	,
		mitk::ImageToImageFilter
	)

◆ New()

static Pointer mitk::USImageLoggingFilter::New ( )

static

◆ SaveImages() [1/2]

void mitk::USImageLoggingFilter::SaveImages	(	std::string	path,
		std::vector< std::string > &	imageFilenames,
		std::string &	csvFileName
	)

Saves all logged data to the given path. Every image is written to a separate image file. Additionaly a csv file containing a list of all images together with timestamps and messages is saved. For one call of this method all files will start with a unique number to avoid overwrite of old files.

Parameters

[in]	path	Should contain a valid path were all logging data will be stored.
[out]	imageFilenames	Returns a list of all images filenames which were stored to the harddisc.
[out]	csvFileName	Returns the filename of the csv list with the timestamps and the messages.

Exceptions

mitk::Exception Throws an exception if there is a problem during writing the images. E.g., if the path is not valid / not writable.

Definition at line 92 of file mitkUSImageLoggingFilter.cpp.

References mitk::UIDGenerator::GetUID(), m_ImageExtension, m_LoggedImages, m_LoggedMessages, m_LoggedMITKSystemTimes, mitkThrow, and mitk::IOUtil::Save().

Referenced by SaveImages().

◆ SaveImages() [2/2]

void mitk::USImageLoggingFilter::SaveImages ( std::string path )

Saves all logged data to the given path. Every image is written to a separate image file. Additionaly a csv file containing a list of all images together with timestamps and messages is saved. For one call of this method all files will start with a unique number to avoid overwrite of old files.

Parameters

[in] path Should contain a valid path were all logging data will be stored.

Exceptions

mitk::Exception Throws an exception if there is a problem during writing the images. E.g., if the path is not valid / not writable.

Definition at line 85 of file mitkUSImageLoggingFilter.cpp.

References SaveImages().

◆ SetImageFilesExtension()

bool mitk::USImageLoggingFilter::SetImageFilesExtension ( std::string extension )

Sets the extension of the output images which alse defines the file type. E.g., ".nrrd" or ".jpg". ".nrrd" is default.

Returns: Returns true if the file extension was successfully set which means it is supported. False if not.

Definition at line 142 of file mitkUSImageLoggingFilter.cpp.

References mitk::IOMimeTypes::CATEGORY_IMAGES(), mitk::CoreServices::GetMimeTypeProvider(), and m_ImageExtension.

Member Data Documentation

◆ m_ImageExtension

std::string mitk::USImageLoggingFilter::m_ImageExtension

protected

stores the image extension, default is ".nrrd"

Definition at line 86 of file mitkUSImageLoggingFilter.h.

Referenced by SaveImages(), and SetImageFilesExtension().

◆ m_LoggedImages

ImageCollection mitk::USImageLoggingFilter::m_LoggedImages

protected

An image collection for every input. The string identifies the input.

Definition at line 83 of file mitkUSImageLoggingFilter.h.

Referenced by AddMessageToCurrentImage(), GenerateData(), and SaveImages().

◆ m_LoggedMessages

std::map<int, std::string> mitk::USImageLoggingFilter::m_LoggedMessages

protected

(Optional) messages for every logged image

Definition at line 84 of file mitkUSImageLoggingFilter.h.

Referenced by AddMessageToCurrentImage(), and SaveImages().

◆ m_LoggedMITKSystemTimes

std::vector<double> mitk::USImageLoggingFilter::m_LoggedMITKSystemTimes

protected

Logged system times for every logged image.

Definition at line 85 of file mitkUSImageLoggingFilter.h.

Referenced by GenerateData(), and SaveImages().

◆ m_SystemTimeClock

mitk::RealTimeClock::Pointer mitk::USImageLoggingFilter::m_SystemTimeClock

protected

system time clock for system time tag

Definition at line 80 of file mitkUSImageLoggingFilter.h.

Referenced by GenerateData().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ImageCollection

Constructor & Destructor Documentation

◆ USImageLoggingFilter()

◆ ~USImageLoggingFilter()

Member Function Documentation

◆ AddMessageToCurrentImage()

◆ GenerateData()

◆ mitkClassMacro()

◆ New()

◆ SaveImages() [1/2]

◆ SaveImages() [2/2]

◆ SetImageFilesExtension()

Member Data Documentation

◆ m_ImageExtension

◆ m_LoggedImages

◆ m_LoggedMessages

◆ m_LoggedMITKSystemTimes

◆ m_SystemTimeClock
