This filter projects a needle's path onto a plane. More...

#include <mitkNeedleProjectionFilter.h>

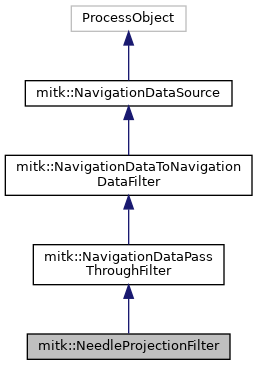

Inheritance diagram for mitk::NeedleProjectionFilter:

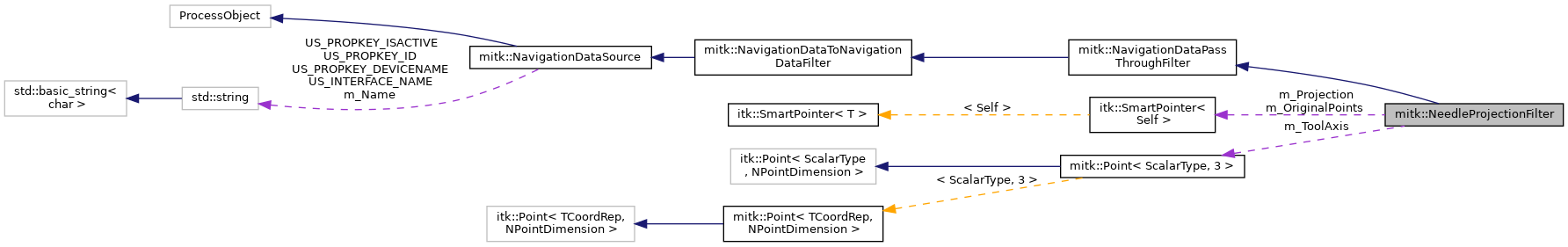

Collaboration diagram for mitk::NeedleProjectionFilter:

[legend]

Public Member Functions
	mitkClassMacro (NeedleProjectionFilter, NavigationDataPassThroughFilter)

virtual void	SelectInput (int i)

virtual mitk::AffineTransform3D::Pointer	GetTargetPlane ()

virtual void	SetTargetPlane (mitk::AffineTransform3D::Pointer _arg)

virtual mitk::PointSet::Pointer	GetProjection ()

void	SetToolAxisForFilter (mitk::Point3D point)

void	ShowToolAxis (bool enabled)

Public Member Functions inherited from mitk::NavigationDataPassThroughFilter
	mitkClassMacro (NavigationDataPassThroughFilter, NavigationDataToNavigationDataFilter)

Public Member Functions inherited from mitk::NavigationDataToNavigationDataFilter
	mitkClassMacro (NavigationDataToNavigationDataFilter, NavigationDataSource)

virtual void	SetInput (const NavigationData *nd)
	Set the input of this filter. More...

virtual void	SetInput (unsigned int idx, const NavigationData *nd)
	Set input with id idx of this filter. More...

const NavigationData *	GetInput (void) const
	Get the input of this filter. More...

const NavigationData *	GetInput (unsigned int idx) const
	Get the input with id idx of this filter. More...

const NavigationData *	GetInput (std::string navDataName) const
	Get the input with name navDataName of this filter. More...

DataObjectPointerArraySizeType	GetInputIndex (std::string navDataName)
	return the index of the input with name navDataName, throw std::invalid_argument exception if that name was not found More...

virtual void	ConnectTo (mitk::NavigationDataSource *UpstreamFilter)
	Connects the input of this filter to the outputs of the given NavigationDataSource. More...

Public Member Functions inherited from mitk::NavigationDataSource
	mitkClassMacroItkParent (NavigationDataSource, itk::ProcessObject)

virtual std::string	GetName ()

virtual void	SetName (std::string _arg)
	Sets the human readable name of this source. There is also a default name, but you can use this method if you need to define it on your own. More...

NavigationData *	GetOutput (void)
	return the output (output with id 0) of the filter More...

NavigationData *	GetOutput (DataObjectPointerArraySizeType idx)
	return the output with id idx of the filter More...

NavigationData *	GetOutput (const std::string &navDataName)
	return the output with name navDataName of the filter More...

NavigationTool::Pointer	GetToolMetaData (DataObjectPointerArraySizeType idx)

NavigationTool::Pointer	GetToolMetaData (const std::string &navDataName)

virtual mitk::NavigationToolStorage::Pointer	GetToolMetaDataCollection ()

virtual void	SetToolMetaDataCollection (mitk::NavigationToolStorage::Pointer _arg)

DataObjectPointerArraySizeType	GetOutputIndex (std::string navDataName)
	return the index of the output with name navDataName, -1 if no output with that name was found More...

virtual void	RegisterAsMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. To unregister, call UnregisterMicroservice(). More...

virtual void	UnRegisterMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. More...

std::string	GetMicroserviceID ()
	Returns the id that this device is registered with. The id will only be valid, if the NavigationDataSource has been registered using RegisterAsMicroservice(). More...

virtual void	GraftNthOutput (unsigned int idx, itk::DataObject *graft)
	Graft the specified DataObject onto this ProcessObject's output. More...

virtual void	GraftOutput (itk::DataObject *graft)
	Graft the specified DataObject onto this ProcessObject's output. More...

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual void	SetParameters (const mitk::PropertyList *)
	Set all filter parameters as the PropertyList p. More...

virtual mitk::PropertyList::ConstPointer	GetParameters () const
	Get all filter parameters as a PropertyList. More...

virtual void	Freeze ()

virtual void	UnFreeze ()

virtual bool	GetIsFrozen ()

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::NavigationDataPassThroughFilter
static Pointer	New ()

Protected Member Functions
	NeedleProjectionFilter ()

	~NeedleProjectionFilter () override

void	GenerateData () override

void	InitializeOriginalPoints (mitk::Point3D toolAxis, bool showToolAxis)

mitk::AffineTransform3D::Pointer	NavigationDataToTransform (const mitk::NavigationData *nd)
	Creates an Affine Transformation from a Navigation Data Object. More...

mitk::Geometry3D::Pointer	TransformToGeometry (mitk::AffineTransform3D::Pointer transform)
	Creates an Geometry 3D Object from an AffineTransformation. More...

Protected Member Functions inherited from mitk::NavigationDataPassThroughFilter
	NavigationDataPassThroughFilter ()

	~NavigationDataPassThroughFilter () override

void	GenerateData () override
	Passes navigation data from all inputs to all outputs. If a subclass wants to implement its own version of the GenerateData() method it should call this method inside its implementation. More...

Protected Member Functions inherited from mitk::NavigationDataToNavigationDataFilter
	NavigationDataToNavigationDataFilter ()

	~NavigationDataToNavigationDataFilter () override

void	CreateOutputsForAllInputs ()
	Create an output for each input. More...

Protected Member Functions inherited from mitk::NavigationDataSource
	NavigationDataSource ()

	~NavigationDataSource () override

Protected Attributes
mitk::AffineTransform3D::Pointer	m_TargetPlane

mitk::PointSet::Pointer	m_Projection

mitk::PointSet::Pointer	m_OriginalPoints

bool	m_ShowToolAxis

mitk::Point3D	m_ToolAxis

int	m_SelectedInput

Protected Attributes inherited from mitk::NavigationDataSource
std::string	m_Name

bool	m_IsFrozen

NavigationToolStorage::Pointer	m_ToolMetaDataCollection

Additional Inherited Members
Static Public Attributes inherited from mitk::NavigationDataSource
static const std::string	US_INTERFACE_NAME
	These Constants are used in conjunction with Microservices. More...

static const std::string	US_PROPKEY_DEVICENAME

static const std::string	US_PROPKEY_ID

static const std::string	US_PROPKEY_ISACTIVE

Detailed Description

This filter projects a needle's path onto a plane.

To use it, hook it up to a NavigationDataStream, select an input and set an AffineTransform 3D that represents the target plane. You can then call GetProjection to retrieve a pointset that represents the projected path. You may change the PointSet's properties, these changes will not be overwritten. If no Input is selected, the target Pointset will not update If no Target Plane is selected, The projection line will always be 40 cm long Any points you add to the pointSet will be overwritten during the next Update. The point with index zero is the Tip of the Needle. The Point with index one is the projection onto the plane.

Projection will happen onto an extension of the plane as well - the filter does not regard boundaries This Filter currently only supports projection of one needle. Extension to multiple needles / planes should be easy.

Definition at line 43 of file mitkNeedleProjectionFilter.h.

Constructor & Destructor Documentation

◆ NeedleProjectionFilter()

mitk::NeedleProjectionFilter::NeedleProjectionFilter ( )

protected

Definition at line 20 of file mitkNeedleProjectionFilter.cpp.

References mitk::FillVector3D(), InitializeOriginalPoints(), m_OriginalPoints, m_ShowToolAxis, m_ToolAxis, and MITK_DEBUG.

◆ ~NeedleProjectionFilter()

mitk::NeedleProjectionFilter::~NeedleProjectionFilter ( )

overrideprotected

Definition at line 81 of file mitkNeedleProjectionFilter.cpp.

Member Function Documentation

◆ GenerateData()

void mitk::NeedleProjectionFilter::GenerateData ( )

overrideprotected

Definition at line 92 of file mitkNeedleProjectionFilter.cpp.

References mitk::NavigationDataPassThroughFilter::GenerateData(), mitk::NavigationDataToNavigationDataFilter::GetInput(), m_OriginalPoints, m_Projection, m_SelectedInput, m_ShowToolAxis, m_TargetPlane, MITK_INFO, NavigationDataToTransform(), mitk::PlaneGeometry::New(), and TransformToGeometry().

◆ GetProjection()

virtual mitk::PointSet::Pointer mitk::NeedleProjectionFilter::GetProjection ( )

virtual

◆ GetTargetPlane()

virtual mitk::AffineTransform3D::Pointer mitk::NeedleProjectionFilter::GetTargetPlane ( )

virtual

◆ InitializeOriginalPoints()

void mitk::NeedleProjectionFilter::InitializeOriginalPoints	(	mitk::Point3D	toolAxis,
		bool	showToolAxis
	)

protected

Internal method for initialization of the projection / tool axis representation by the point set m_OriginalPoints.

Definition at line 39 of file mitkNeedleProjectionFilter.cpp.

References m_OriginalPoints, and mitk::PointSet::New().

Referenced by NeedleProjectionFilter(), SetToolAxisForFilter(), and ShowToolAxis().

◆ mitkClassMacro()

mitk::NeedleProjectionFilter::mitkClassMacro	(	NeedleProjectionFilter	,
		NavigationDataPassThroughFilter
	)

◆ NavigationDataToTransform()

mitk::AffineTransform3D::Pointer mitk::NeedleProjectionFilter::NavigationDataToTransform ( const mitk::NavigationData * nd )

protected

Creates an Affine Transformation from a Navigation Data Object.

Definition at line 155 of file mitkNeedleProjectionFilter.cpp.

References mitk::NavigationData::GetOrientation(), mitk::NavigationData::GetPosition(), and mitk::TransferMatrix().

Referenced by GenerateData().

◆ New()

static Pointer mitk::NeedleProjectionFilter::New ( )

static

◆ SelectInput()

void mitk::NeedleProjectionFilter::SelectInput ( int i )

virtual

Definition at line 85 of file mitkNeedleProjectionFilter.cpp.

References m_SelectedInput, and mitkThrow.

◆ SetTargetPlane()

virtual void mitk::NeedleProjectionFilter::SetTargetPlane ( mitk::AffineTransform3D::Pointer _arg )

virtual

◆ SetToolAxisForFilter()

void mitk::NeedleProjectionFilter::SetToolAxisForFilter ( mitk::Point3D point )

Sets the tool axis for this filter. The default tool axis is along the z-axis in tool coordinates.

Definition at line 72 of file mitkNeedleProjectionFilter.cpp.

References InitializeOriginalPoints(), m_OriginalPoints, m_ShowToolAxis, m_ToolAxis, and MITK_DEBUG.

◆ ShowToolAxis()

void mitk::NeedleProjectionFilter::ShowToolAxis ( bool enabled )

Sets whether the tool axis should be visualized. This is required if no surface is available. If disabled only the projection and not the axis is shown. It's disabled by default.

Definition at line 66 of file mitkNeedleProjectionFilter.cpp.

References InitializeOriginalPoints(), m_ShowToolAxis, and m_ToolAxis.
