Converts pixel data to surface data by using a threshold The mitkImageToSurfaceFilter is used to create a new surface out of an mitk image. The filter uses a threshold to define the surface. It is based on the vtkMarchingCube algorithm. By default a vtkPolyData surface based on an input threshold for the input image will be created. Optional it is possible to reduce the number of triangles/polygones [SetDecimate(mitk::ImageToSurfaceFilter::DecimatePro) and SetTargetReduction (float _arg)] or smooth the surface-data [SetSmooth(true), SetSmoothIteration(int smoothIteration) and SetSmoothRelaxation(float smoothRelaxation)]. More...

#include <mitkImageToSurfaceFilter.h>

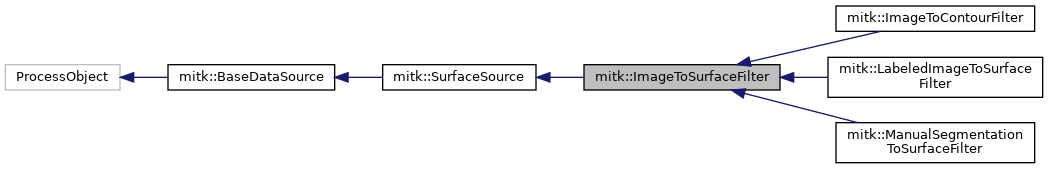

Inheritance diagram for mitk::ImageToSurfaceFilter:

[legend]

Collaboration diagram for mitk::ImageToSurfaceFilter:

[legend]

Public Types
enum	DecimationType { NoDecimation, DecimatePro, QuadricDecimation }

typedef ImageToSurfaceFilter	Self

typedef SurfaceSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::SurfaceSource
typedef SurfaceSource	Self

typedef BaseDataSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Surface	OutputType

Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self

typedef itk::ProcessObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef BaseData	OutputType

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

void	GenerateData () override

void	GenerateOutputInformation () override

const mitk::Image *	GetInput (void)

virtual void	SetInput (const mitk::Image *image)

void	SetSmoothIteration (int smoothIteration)

void	SetSmoothRelaxation (float smoothRelaxation)

virtual void	SetThreshold (ScalarType _arg)

virtual ScalarType	GetThreshold () const

virtual void	SetSmooth (bool _arg)

virtual void	SmoothOn ()

virtual void	SmoothOff ()

virtual bool	GetSmooth () const

virtual DecimationType	GetDecimate () const

virtual void	SetDecimate (DecimationType _arg)

virtual void	SetTargetReduction (float _arg)

virtual float	GetTargetReduction () const

template<class T1 , class T2 , class T3 >
void	mitkVtkLinearTransformPoint (T1 matrix[4][4], T2 in[3], T3 out[3])

Public Member Functions inherited from mitk::SurfaceSource
Pointer	Clone () const

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::SurfaceSource
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	ImageToSurfaceFilter ()

	~ImageToSurfaceFilter () override

void	CreateSurface (int time, vtkImageData vtkimage, mitk::Surface surface, const ScalarType threshold)

Protected Member Functions inherited from mitk::SurfaceSource
	SurfaceSource ()

	~SurfaceSource () override

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()

	~BaseDataSource () override

Protected Attributes
bool	m_Smooth

DecimationType	m_Decimate

ScalarType	m_Threshold

float	m_TargetReduction

int	m_SmoothIteration

float	m_SmoothRelaxation

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Converts pixel data to surface data by using a threshold The mitkImageToSurfaceFilter is used to create a new surface out of an mitk image. The filter uses a threshold to define the surface. It is based on the vtkMarchingCube algorithm. By default a vtkPolyData surface based on an input threshold for the input image will be created. Optional it is possible to reduce the number of triangles/polygones [SetDecimate(mitk::ImageToSurfaceFilter::DecimatePro) and SetTargetReduction (float _arg)] or smooth the surface-data [SetSmooth(true), SetSmoothIteration(int smoothIteration) and SetSmoothRelaxation(float smoothRelaxation)].

The resulting vtk-surface has the same size as the input image. The surface can be generally smoothed by vtkDecimatePro reduce complexity of triangles and vtkSmoothPolyDataFilter to relax the mesh. Both are enabled by default and connected in the common way of pipelining in ITK. It's also possible to create time sliced surfaces.

Definition at line 50 of file mitkImageToSurfaceFilter.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::ImageToSurfaceFilter::ConstPointer

Definition at line 66 of file mitkImageToSurfaceFilter.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::ImageToSurfaceFilter::Pointer

Definition at line 66 of file mitkImageToSurfaceFilter.h.

◆ Self

typedef ImageToSurfaceFilter mitk::ImageToSurfaceFilter::Self

Definition at line 66 of file mitkImageToSurfaceFilter.h.

◆ Superclass

typedef SurfaceSource mitk::ImageToSurfaceFilter::Superclass

Definition at line 66 of file mitkImageToSurfaceFilter.h.

Member Enumeration Documentation

◆ DecimationType

enum mitk::ImageToSurfaceFilter::DecimationType

Enumerator
NoDecimation
DecimatePro
QuadricDecimation

Definition at line 59 of file mitkImageToSurfaceFilter.h.

Constructor & Destructor Documentation

◆ ImageToSurfaceFilter()

mitk::ImageToSurfaceFilter::ImageToSurfaceFilter ( )

protected

Definition at line 29 of file mitkImageToSurfaceFilter.cpp.

◆ ~ImageToSurfaceFilter()

mitk::ImageToSurfaceFilter::~ImageToSurfaceFilter ( )

overrideprotected

Destructor

Definition at line 39 of file mitkImageToSurfaceFilter.cpp.

Member Function Documentation

◆ Clone()

Pointer mitk::ImageToSurfaceFilter::Clone ( ) const

◆ CreateSurface()

void mitk::ImageToSurfaceFilter::CreateSurface	(	int	time,
		vtkImageData *	vtkimage,
		mitk::Surface *	surface,
		const ScalarType	threshold
	)

protected

With the given threshold vtkMarchingCube creates the surface. By default nothing a vtkPolyData surface based on a threshold of the input image will be created. Optional it is possible to reduce the number of triangles/polygones [SetDecimate(mitk::ImageToSurfaceFilter::DecimatePro) and SetTargetReduction (float _arg)] or smooth the data [SetSmooth(true), SetSmoothIteration(int smoothIteration) and SetSmoothRelaxation(float smoothRelaxation)].

Parameters

time	selected slice or "0" for single
*vtkimage	input image
*surface	output
threshold	can be different from SetThreshold()

Definition at line 43 of file mitkImageToSurfaceFilter.cpp.

References DecimatePro, mitk::BaseData::GetGeometry(), GetInput(), mitk::ProgressBar::GetInstance(), mitk::BaseGeometry::GetSpacing(), mitk::BaseGeometry::GetVtkTransform(), m_Decimate, m_Smooth, m_SmoothIteration, m_SmoothRelaxation, m_TargetReduction, mitkVtkLinearTransformPoint(), mitk::ProgressBar::Progress(), QuadricDecimation, and mitk::Surface::SetVtkPolyData().

Referenced by mitk::ManualSegmentationToSurfaceFilter::GenerateData(), and GenerateData().

◆ GenerateData()

void mitk::ImageToSurfaceFilter::GenerateData ( )

override

For each image time slice a surface will be created. This method is called by Update().

Definition at line 165 of file mitkImageToSurfaceFilter.cpp.

References mitk::ProgressBar::AddStepsToDo(), CreateSurface(), GetInput(), mitk::ProgressBar::GetInstance(), mitk::SurfaceSource::GetOutput(), image, m_Threshold, mitkThrow, and mitk::ProgressBar::Progress().

◆ GenerateOutputInformation()

void mitk::ImageToSurfaceFilter::GenerateOutputInformation ( )

override

Initializes the output information ( i.e. the geometry information ) of the output of the filter

Definition at line 217 of file mitkImageToSurfaceFilter.cpp.

References GetInput(), and mitk::SurfaceSource::GetOutput().

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::ImageToSurfaceFilter::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::SurfaceSource.

Definition at line 66 of file mitkImageToSurfaceFilter.h.

◆ GetClassName()

virtual const char* mitk::ImageToSurfaceFilter::GetClassName ( ) const

virtual

Reimplemented from mitk::SurfaceSource.

◆ GetDecimate()

virtual DecimationType mitk::ImageToSurfaceFilter::GetDecimate ( ) const

virtual

Get the state of decimation mode to reduce triangle in the surface represantation. Modes can only be NoDecimation or DecimatePro (till vtk 4.x also Decimate)

◆ GetInput()

const mitk::Image * mitk::ImageToSurfaceFilter::GetInput ( void )

Returns a const reference to the input image (e.g. the original input image that ist used to create the surface)

Definition at line 207 of file mitkImageToSurfaceFilter.cpp.

Referenced by mitk::LabeledImageToSurfaceFilter::CreateSurface(), CreateSurface(), mitk::ManualSegmentationToSurfaceFilter::GenerateData(), GenerateData(), mitk::ImageToContourFilter::GenerateData(), mitk::LabeledImageToSurfaceFilter::GenerateData(), GenerateOutputInformation(), mitk::LabeledImageToSurfaceFilter::GenerateOutputInformation(), mitk::LabeledImageToSurfaceFilter::GetAvailableLabels(), and mitk::LabeledImageToSurfaceFilter::GetVolumeForLabel().

◆ GetSmooth()

virtual bool mitk::ImageToSurfaceFilter::GetSmooth ( ) const

virtual

◆ GetStaticNameOfClass()

static const char* mitk::ImageToSurfaceFilter::GetStaticNameOfClass ( )

inlinestatic

Definition at line 66 of file mitkImageToSurfaceFilter.h.

◆ GetTargetReduction()

virtual float mitk::ImageToSurfaceFilter::GetTargetReduction ( ) const

virtual

Returns the reduction factor for the VtkDecimatePro Decimation Filter as a float value

◆ GetThreshold()

virtual ScalarType mitk::ImageToSurfaceFilter::GetThreshold ( ) const

virtual

Get Threshold from vtkMarchingCube. Threshold can be manipulated by inherited classes.

◆ mitkVtkLinearTransformPoint()

template<class T1 , class T2 , class T3 >

void mitk::ImageToSurfaceFilter::mitkVtkLinearTransformPoint	(	T1	matrix[4][4],
		T2	in[3],
		T3	out[3]
	)

inline

Transforms a point by a 4x4 matrix

Definition at line 179 of file mitkImageToSurfaceFilter.h.

Referenced by mitk::LabeledImageToSurfaceFilter::CreateSurface(), and CreateSurface().

◆ New()

static Pointer mitk::ImageToSurfaceFilter::New ( )

static

Referenced by CompareSurfacePointPositions(), mitk::SurfaceBasedInterpolationController::Interpolate(), mitk::SurfaceInterpolationController::Interpolate(), and mitk::ShowSegmentationAsSmoothedSurface::ThreadedUpdateFunction().

◆ SetDecimate()

virtual void mitk::ImageToSurfaceFilter::SetDecimate ( DecimationType _arg )

virtual

Enable the decimation filter to reduce the number of triangles in the mesh and produce a good approximation to the original image. The filter has support for vtk-5 and earlier versions. More detailed information check the vtkDecimatePro and vtkDecimate.

◆ SetInput()

void mitk::ImageToSurfaceFilter::SetInput ( const mitk::Image * image )

virtual

Definition at line 201 of file mitkImageToSurfaceFilter.cpp.

◆ SetSmooth()

virtual void mitk::ImageToSurfaceFilter::SetSmooth ( bool _arg )

virtual

Enables vtkSmoothPolyDataFilter. With Laplacian smoothing this filter will relax the surface. You can control the Filter by manipulating the number of iterations and the relaxing factor.

◆ SetSmoothIteration()

void mitk::ImageToSurfaceFilter::SetSmoothIteration ( int smoothIteration )

Set the number of iterations that is used to smooth the surface. Used is the vtkSmoothPolydataFilter that uses the laplacian filter. The higher the number of iterations that stronger the smooth-result

Parameters

smoothIteration As smoothIteration default in that case 50 was choosen. The VTK documentation recommends small relaxation factors and large numbers of iterations.

Definition at line 191 of file mitkImageToSurfaceFilter.cpp.

References m_SmoothIteration.

◆ SetSmoothRelaxation()

void mitk::ImageToSurfaceFilter::SetSmoothRelaxation ( float smoothRelaxation )

Set number of relaxation. Specify the relaxation factor for Laplacian smoothing. The VTK documentation recommends small relaxation factors and large numbers of iterations.

Parameters

smoothRelaxation As smoothRelaxation default in that case 0.1 was choosen. The VTK documentation recommends small relaxation factors and large numbers of iterations.

Definition at line 196 of file mitkImageToSurfaceFilter.cpp.

References m_SmoothRelaxation.

◆ SetTargetReduction()

virtual void mitk::ImageToSurfaceFilter::SetTargetReduction ( float _arg )

virtual

Set desired TargetReduction of triangles in the range from 0.0 to 1.0. The destroyed triangles are in relation with the size of data. For example 0.9 will reduce the data set to 10%.

Parameters

Set	a TargetReduction float-value from 0.0 to 1.0

◆ SetThreshold()

virtual void mitk::ImageToSurfaceFilter::SetThreshold ( ScalarType _arg )

virtual

Threshold that is used to create the surface. All pixel in the input image that are higher than that value will be considered in the surface. The threshold referees to vtkMarchingCube. Default value is 1. See also SetThreshold (ScalarType _arg)

◆ SmoothOff()

virtual void mitk::ImageToSurfaceFilter::SmoothOff ( )

virtual

◆ SmoothOn()

virtual void mitk::ImageToSurfaceFilter::SmoothOn ( )

virtual

Member Data Documentation

◆ m_Decimate

DecimationType mitk::ImageToSurfaceFilter::m_Decimate

protected

Decimation mode, default mode is "NoDecimation". See also SetDecimate (DecimationType _arg)

Definition at line 221 of file mitkImageToSurfaceFilter.h.

Referenced by mitk::LabeledImageToSurfaceFilter::CreateSurface(), and CreateSurface().

◆ m_Smooth

bool mitk::ImageToSurfaceFilter::m_Smooth

protected

Flag whether the created surface shall be smoothed or not (default is "false"). SetSmooth (bool _arg)

Definition at line 216 of file mitkImageToSurfaceFilter.h.

Referenced by mitk::LabeledImageToSurfaceFilter::CreateSurface(), and CreateSurface().

◆ m_SmoothIteration

int mitk::ImageToSurfaceFilter::m_SmoothIteration

protected

The Iteration value for the Smooth Filter of the created surface. See also SetSmoothIteration (int smoothIteration)

Definition at line 238 of file mitkImageToSurfaceFilter.h.

Referenced by mitk::LabeledImageToSurfaceFilter::CreateSurface(), CreateSurface(), and SetSmoothIteration().

◆ m_SmoothRelaxation

float mitk::ImageToSurfaceFilter::m_SmoothRelaxation

protected

The Relaxation value for the Smooth Filter of the created surface. See also SetSmoothRelaxation (float smoothRelaxation)

Definition at line 244 of file mitkImageToSurfaceFilter.h.

Referenced by mitk::LabeledImageToSurfaceFilter::CreateSurface(), CreateSurface(), and SetSmoothRelaxation().

◆ m_TargetReduction

float mitk::ImageToSurfaceFilter::m_TargetReduction

protected

The Reduction factor of the Decimation Filter for the created surface. See also SetTargetReduction (float _arg)

Definition at line 232 of file mitkImageToSurfaceFilter.h.

Referenced by mitk::LabeledImageToSurfaceFilter::CreateSurface(), and CreateSurface().

◆ m_Threshold

ScalarType mitk::ImageToSurfaceFilter::m_Threshold

protected

Threshold that is used to create the surface. All pixel in the input image that are higher than that value will be considered in the surface. Default value is 1. See also SetThreshold (ScalarType _arg)

Definition at line 227 of file mitkImageToSurfaceFilter.h.

Referenced by mitk::ManualSegmentationToSurfaceFilter::GenerateData(), and GenerateData().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ Pointer

◆ Self

◆ Superclass

Member Enumeration Documentation

◆ DecimationType

Constructor & Destructor Documentation

◆ ImageToSurfaceFilter()

◆ ~ImageToSurfaceFilter()

Member Function Documentation

◆ Clone()

◆ CreateSurface()

◆ GenerateData()

◆ GenerateOutputInformation()

◆ GetClassHierarchy()

◆ GetClassName()

◆ GetDecimate()

◆ GetInput()

◆ GetSmooth()

◆ GetStaticNameOfClass()

◆ GetTargetReduction()

◆ GetThreshold()

◆ mitkVtkLinearTransformPoint()

◆ New()

◆ SetDecimate()

◆ SetInput()

◆ SetSmooth()

◆ SetSmoothIteration()

◆ SetSmoothRelaxation()

◆ SetTargetReduction()

◆ SetThreshold()

◆ SmoothOff()

◆ SmoothOn()

Member Data Documentation

◆ m_Decimate

◆ m_Smooth

◆ m_SmoothIteration

◆ m_SmoothRelaxation

◆ m_TargetReduction

◆ m_Threshold
