mitk::ImageToLiveWireContourFilter Class Reference

#include <mitkImageToLiveWireContourFilter.h>

Inheritance diagram for mitk::ImageToLiveWireContourFilter:

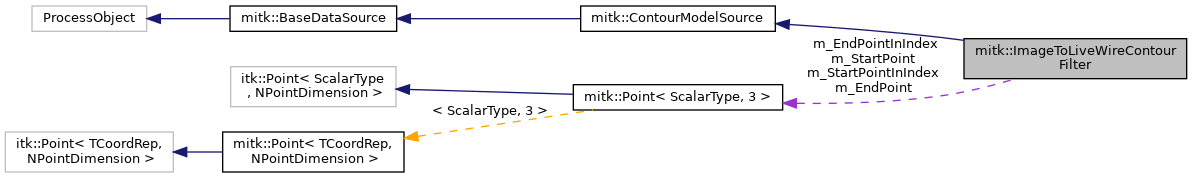

Collaboration diagram for mitk::ImageToLiveWireContourFilter:

Public Types
typedef ContourModel	OutputType
typedef OutputType::Pointer	OutputTypePointer
typedef mitk::Image	InputType
Public Types inherited from mitk::ContourModelSource
typedef ContourModel	OutputType
typedef OutputType::Pointer	OutputTypePointer
Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef BaseData	OutputType
typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Public Member Functions
	mitkClassMacro (ImageToLiveWireContourFilter, ContourModelSource)
Pointer	Clone () const
virtual void	SetStartPoint (mitk::Point3D _arg)
virtual mitk::Point3D	GetStartPoint ()
virtual void	SetEndPoint (mitk::Point3D _arg)
virtual mitk::Point3D	GetEndPoint ()
virtual void	SetInput (const InputType *input)
virtual void	SetInput (unsigned int idx, const InputType *input)
const InputType *	GetInput (void)
const InputType *	GetInput (unsigned int idx)
Public Member Functions inherited from mitk::ContourModelSource
	mitkClassMacro (ContourModelSource, BaseDataSource)
Pointer	Clone () const
mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
Public Member Functions inherited from mitk::BaseDataSource
virtual std::vector< std::string >	GetClassHierarchy () const
virtual const char *	GetClassName () const
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...
virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...
bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::ContourModelSource
static Pointer	New ()
Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	ImageToLiveWireContourFilter ()
	~ImageToLiveWireContourFilter () override
void	GenerateData () override
void	GenerateOutputInformation () override
Protected Member Functions inherited from mitk::ContourModelSource
	ContourModelSource ()
	~ContourModelSource () override
Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	~BaseDataSource () override

Protected Attributes
mitk::Point3D	m_StartPoint
mitk::Point3D	m_EndPoint
mitk::Point3D	m_StartPointInIndex
mitk::Point3D	m_EndPointInIndex

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Definition at line 34 of file mitkImageToLiveWireContourFilter.h.

Member Typedef Documentation

InputType

typedef mitk::Image mitk::ImageToLiveWireContourFilter::InputType

Definition at line 43 of file mitkImageToLiveWireContourFilter.h.

OutputType

typedef ContourModel mitk::ImageToLiveWireContourFilter::OutputType

Definition at line 39 of file mitkImageToLiveWireContourFilter.h.

OutputTypePointer

typedef OutputType::Pointer mitk::ImageToLiveWireContourFilter::OutputTypePointer

Definition at line 42 of file mitkImageToLiveWireContourFilter.h.

Constructor & Destructor Documentation

ImageToLiveWireContourFilter()

mitk::ImageToLiveWireContourFilter::ImageToLiveWireContourFilter ( )

protected

Definition at line 19 of file mitkImageToLiveWireContourFilter.cpp.

References mitk::ContourModelSource::MakeOutput().

~ImageToLiveWireContourFilter()

mitk::ImageToLiveWireContourFilter::~ImageToLiveWireContourFilter ( )

overrideprotected

Definition at line 27 of file mitkImageToLiveWireContourFilter.cpp.

Member Function Documentation

Clone()

Pointer mitk::ImageToLiveWireContourFilter::Clone

(

)

const

GenerateData()

void mitk::ImageToLiveWireContourFilter::GenerateData ( )

overrideprotected

Definition at line 64 of file mitkImageToLiveWireContourFilter.cpp.

References AccessFixedDimensionByItk, GetInput(), m_EndPoint, m_EndPointInIndex, m_StartPoint, m_StartPointInIndex, and MITK_ERROR.

GenerateOutputInformation()

void mitk::ImageToLiveWireContourFilter::GenerateOutputInformation ( )

inlineoverrideprotected

Definition at line 67 of file mitkImageToLiveWireContourFilter.h.

GetEndPoint()

virtual mitk::Point3D mitk::ImageToLiveWireContourFilter::GetEndPoint ( )

virtual

GetInput() [1/2]

const mitk::ImageToLiveWireContourFilter::InputType * mitk::ImageToLiveWireContourFilter::GetInput

(

void

)

Definition at line 50 of file mitkImageToLiveWireContourFilter.cpp.

Referenced by GenerateData().

GetInput() [2/2]

const mitk::ImageToLiveWireContourFilter::InputType * mitk::ImageToLiveWireContourFilter::GetInput

(

unsigned int

idx

)

Definition at line 57 of file mitkImageToLiveWireContourFilter.cpp.

GetStartPoint()

virtual mitk::Point3D mitk::ImageToLiveWireContourFilter::GetStartPoint ( )

virtual

mitkClassMacro()

mitk::ImageToLiveWireContourFilter::mitkClassMacro	(	ImageToLiveWireContourFilter	,
		ContourModelSource
	)

New()

static Pointer mitk::ImageToLiveWireContourFilter::New ( )

static

SetEndPoint()

virtual void mitk::ImageToLiveWireContourFilter::SetEndPoint ( mitk::Point3D  _arg )

virtual

SetInput() [1/2]

void mitk::ImageToLiveWireContourFilter::SetInput ( const InputType *  input )

virtual

Definition at line 31 of file mitkImageToLiveWireContourFilter.cpp.

SetInput() [2/2]

void mitk::ImageToLiveWireContourFilter::SetInput ( unsigned int  idx, const InputType *  input  )

virtual

Definition at line 36 of file mitkImageToLiveWireContourFilter.cpp.

SetStartPoint()

virtual void mitk::ImageToLiveWireContourFilter::SetStartPoint ( mitk::Point3D  _arg )

virtual

Member Data Documentation

m_EndPoint

mitk::Point3D mitk::ImageToLiveWireContourFilter::m_EndPoint

protected

Definition at line 70 of file mitkImageToLiveWireContourFilter.h.

Referenced by GenerateData().

m_EndPointInIndex

mitk::Point3D mitk::ImageToLiveWireContourFilter::m_EndPointInIndex

protected

Definition at line 73 of file mitkImageToLiveWireContourFilter.h.

Referenced by GenerateData().

m_StartPoint

mitk::Point3D mitk::ImageToLiveWireContourFilter::m_StartPoint

protected

Definition at line 67 of file mitkImageToLiveWireContourFilter.h.

Referenced by GenerateData().

m_StartPointInIndex

mitk::Point3D mitk::ImageToLiveWireContourFilter::m_StartPointInIndex

protected

Definition at line 72 of file mitkImageToLiveWireContourFilter.h.

Referenced by GenerateData().

---

The documentation for this class was generated from the following files:

• mitkImageToLiveWireContourFilter.h
• mitkImageToLiveWireContourFilter.cpp
