mitk::ImageBasedParameterizationDelegate Class Reference

#include <mitkImageBasedParameterizationDelegate.h>

Inheritance diagram for mitk::ImageBasedParameterizationDelegate:

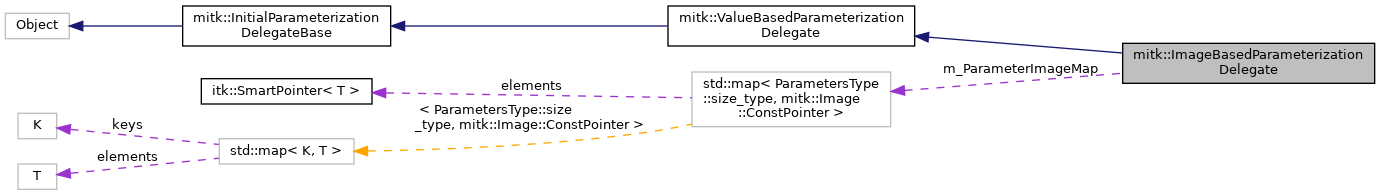

Collaboration diagram for mitk::ImageBasedParameterizationDelegate:

Public Types
typedef ImageBasedParameterizationDelegate	Self
typedef ValueBasedParameterizationDelegate	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::ModelBaseType	ModelBaseType
typedef Superclass::ParametersType	ParametersType
typedef Superclass::IndexType	IndexType
Public Types inherited from mitk::ValueBasedParameterizationDelegate
typedef ValueBasedParameterizationDelegate	Self
typedef InitialParameterizationDelegateBase	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::ModelBaseType	ModelBaseType
typedef Superclass::ParametersType	ParametersType
typedef Superclass::IndexType	IndexType
Public Types inherited from mitk::InitialParameterizationDelegateBase
typedef InitialParameterizationDelegateBase	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef ModelBase	ModelBaseType
typedef ModelBaseType::ParametersType	ParametersType
typedef ::itk::Index< 3 >	IndexType

Public Member Functions
Pointer	Clone () const
virtual const char *	GetClassName () const
ParametersType	GetInitialParameterization () const override
ParametersType	GetInitialParameterization (const IndexType &currentPosition) const override
void	AddInitialParameterImage (const mitk::Image *image, ParametersType::size_type paramIndex)
Public Member Functions inherited from mitk::ValueBasedParameterizationDelegate
Pointer	Clone () const
void	SetInitialParameterization (ParametersType params)
ParametersType	GetInitialParameterization () const override
ParametersType	GetInitialParameterization (const IndexType &currentPosition) const override

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::ValueBasedParameterizationDelegate
static Pointer	New ()

Protected Types
typedef std::map< ParametersType::size_type, mitk::Image::ConstPointer >	ImageMapType

Protected Member Functions
	ImageBasedParameterizationDelegate ()
	~ImageBasedParameterizationDelegate () override
Protected Member Functions inherited from mitk::ValueBasedParameterizationDelegate
	ValueBasedParameterizationDelegate ()
	~ValueBasedParameterizationDelegate () override
Protected Member Functions inherited from mitk::InitialParameterizationDelegateBase
	InitialParameterizationDelegateBase ()
	~InitialParameterizationDelegateBase () override

Protected Attributes
ImageMapType	m_ParameterImageMap
Protected Attributes inherited from mitk::ValueBasedParameterizationDelegate
ParametersType	m_Parameterization

Detailed Description

Definition at line 28 of file mitkImageBasedParameterizationDelegate.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer< const Self > mitk::ImageBasedParameterizationDelegate::ConstPointer

Definition at line 35 of file mitkImageBasedParameterizationDelegate.h.

ImageMapType

typedef std::map<ParametersType::size_type, mitk::Image::ConstPointer> mitk::ImageBasedParameterizationDelegate::ImageMapType

protected

Definition at line 66 of file mitkImageBasedParameterizationDelegate.h.

IndexType

typedef Superclass::IndexType mitk::ImageBasedParameterizationDelegate::IndexType

Definition at line 47 of file mitkImageBasedParameterizationDelegate.h.

ModelBaseType

typedef Superclass::ModelBaseType mitk::ImageBasedParameterizationDelegate::ModelBaseType

Definition at line 41 of file mitkImageBasedParameterizationDelegate.h.

ParametersType

typedef Superclass::ParametersType mitk::ImageBasedParameterizationDelegate::ParametersType

Definition at line 45 of file mitkImageBasedParameterizationDelegate.h.

Pointer

typedef itk::SmartPointer< Self > mitk::ImageBasedParameterizationDelegate::Pointer

Definition at line 34 of file mitkImageBasedParameterizationDelegate.h.

Self

typedef ImageBasedParameterizationDelegate mitk::ImageBasedParameterizationDelegate::Self

Definition at line 32 of file mitkImageBasedParameterizationDelegate.h.

Superclass

typedef ValueBasedParameterizationDelegate mitk::ImageBasedParameterizationDelegate::Superclass

Definition at line 33 of file mitkImageBasedParameterizationDelegate.h.

Constructor & Destructor Documentation

ImageBasedParameterizationDelegate()

mitk::ImageBasedParameterizationDelegate::ImageBasedParameterizationDelegate ( )

protected

Definition at line 18 of file mitkImageBasedParameterizationDelegate.cpp.

~ImageBasedParameterizationDelegate()

mitk::ImageBasedParameterizationDelegate::~ImageBasedParameterizationDelegate ( )

overrideprotected

Definition at line 22 of file mitkImageBasedParameterizationDelegate.cpp.

Member Function Documentation

AddInitialParameterImage()

void mitk::ImageBasedParameterizationDelegate::AddInitialParameterImage	(	const mitk::Image *	image,
		ParametersType::size_type	paramIndex
	)

Adds an image as a source for the initial value of a parameter.

Parameters

image	Pointer to the image that is the value source.
paramIndex	Indicates which parameter is defined by the source image. It equals the position in the return vector of GetInitialParameterization().

Remarks

setting an image for an index overwrites the value for this index set by SetInitialParameterization.

Precondition

paramIndex must be in bound of the initial parametrization vector.

image must be a valid instance

Definition at line 55 of file mitkImageBasedParameterizationDelegate.cpp.

References m_ParameterImageMap, mitk::ValueBasedParameterizationDelegate::m_Parameterization, and mitkThrow.

Clone()

Pointer mitk::ImageBasedParameterizationDelegate::Clone

(

)

const

GetClassName()

virtual const char* mitk::ImageBasedParameterizationDelegate::GetClassName ( ) const

virtual

Reimplemented from mitk::ValueBasedParameterizationDelegate.

GetInitialParameterization() [1/2]

mitk::ImageBasedParameterizationDelegate::ParametersType mitk::ImageBasedParameterizationDelegate::GetInitialParameterization ( ) const

overridevirtual

Returns the parameterization (e.g. initial parametrization for fitting) that should be used. If no ParameterizationDelegate is set (see SetInitialParameterizationDelegate()) it will just return the result of GetInitialParameterization().

Implements mitk::InitialParameterizationDelegateBase.

Definition at line 26 of file mitkImageBasedParameterizationDelegate.cpp.

GetInitialParameterization() [2/2]

mitk::ImageBasedParameterizationDelegate::ParametersType mitk::ImageBasedParameterizationDelegate::GetInitialParameterization ( const IndexType &  currentPosition ) const

override

Definition at line 39 of file mitkImageBasedParameterizationDelegate.cpp.

References AccessPixel(), m_ParameterImageMap, mitk::ValueBasedParameterizationDelegate::m_Parameterization, and mitkPixelTypeMultiplex3.

New()

static Pointer mitk::ImageBasedParameterizationDelegate::New ( )

static

Method for creation through the object factory.

Referenced by QmitkInitialValuesModel::getInitialParametrizationDelegate().

Member Data Documentation

m_ParameterImageMap

ImageMapType mitk::ImageBasedParameterizationDelegate::m_ParameterImageMap

protected

Definition at line 67 of file mitkImageBasedParameterizationDelegate.h.

Referenced by AddInitialParameterImage(), and GetInitialParameterization().

---

The documentation for this class was generated from the following files:

• mitkImageBasedParameterizationDelegate.h
• mitkImageBasedParameterizationDelegate.cpp
