GUI widget for handling mitk::PointSet. More...

#include <QmitkPointListView.h>

Inheritance diagram for QmitkPointListView:

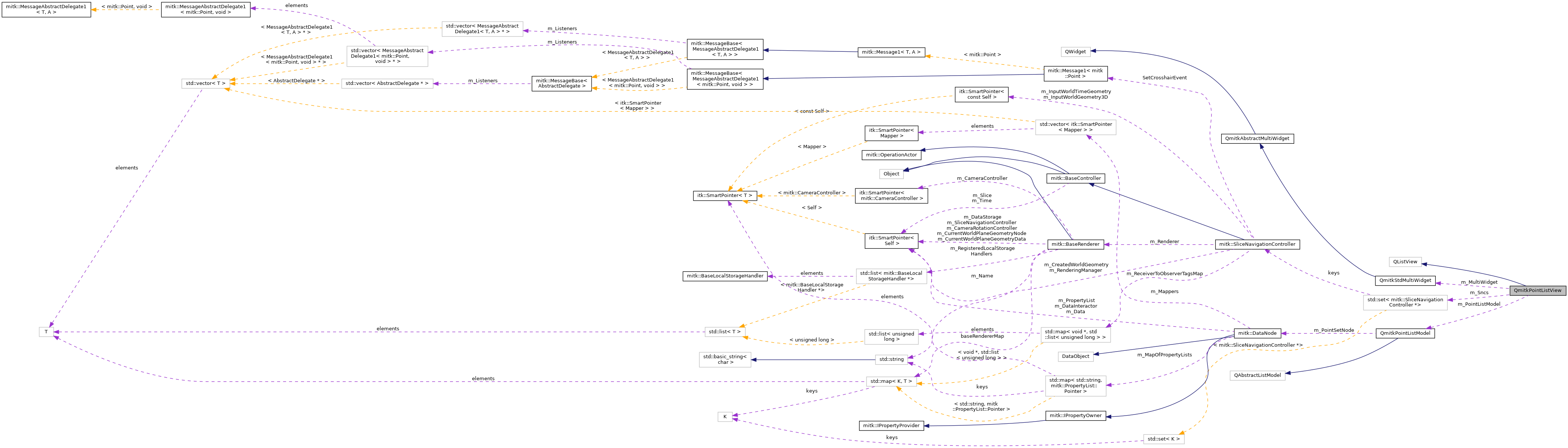

Collaboration diagram for QmitkPointListView:

[legend]

Signals
void	SignalPointSelectionChanged ()
	this signal is emmitted, if the selection of a point in the pointset is changed More...

void	SignalTimeStepChanged (int)

Public Member Functions
	QmitkPointListView (QWidget *parent=nullptr)

	~QmitkPointListView () override

void	SetPointSetNode (mitk::DataNode *pointSetNode)
	assign a point set for observation More...

const mitk::PointSet *	GetPointSet () const
	which point set to work on More...

void	SetMultiWidget (QmitkStdMultiWidget *multiWidget)
	If Multiwidget is set, the crosshair is automatically centering to the selected point As an alternative, if you dont have a multiwidget, you can call SetSnc1, SetSnc2, SetSnc3 to set the SliceNavigationControllers directly to enable the focussing feature. More...

QmitkStdMultiWidget *	GetMultiWidget () const
	return the QmitkStdMultiWidget that is used for updating render window crosshair More...

void	AddSliceNavigationController (mitk::SliceNavigationController *snc)
	Add a mitk::SliceNavigationController instance. More...

void	RemoveSliceNavigationController (mitk::SliceNavigationController *snc)
	Remove a mitk::SliceNavigationController instance. More...

Protected Slots
void	OnPointDoubleClicked (const QModelIndex &index)
	Filtering double click event for editing point coordinates via a dialog. More...

void	OnPointSetSelectionChanged ()
	called when the point set data structure changes More...

void	OnListViewSelectionChanged (const QItemSelection &selected, const QItemSelection &deselected)
	called when the selection of the view widget changes More...

void	ctxMenu (const QPoint &pos)
	open ContextMenu More...

void	SetFading (bool onOff)
	Turn TimeStep Fading On/Off. More...

void	ClearPointList ()
	Delete all points in the list. More...

void	ClearPointListTS ()
	delete all points in the list in the current timestep More...

Protected Member Functions
void	keyPressEvent (QKeyEvent *e) override
	react to F2, F3 and DEL keys More...

void	wheelEvent (QWheelEvent *event) override
	change timestep of the current pointset by mouse wheel More...

Protected Attributes
std::set< mitk::SliceNavigationController * >	m_Sncs

QmitkPointListModel *	m_PointListModel

bool	m_SelfCall

bool	m_showFading

QmitkStdMultiWidget *	m_MultiWidget
	used to position the planes on a selected point More...

Detailed Description

GUI widget for handling mitk::PointSet.

Displays all the points in a mitk::PointSet graphically. Reacts automatically to changes in the PointSet's selection status. Updates PointSet's selection status when this list's selection changes.

If a QmitkStdMultiWidget is assigned via SetMultiWidget(), the crosshair of the QmitkStdMultiWidget is moved to the currently selected point.

Definition at line 36 of file QmitkPointListView.h.

Constructor & Destructor Documentation

◆ QmitkPointListView()

QmitkPointListView::QmitkPointListView ( QWidget * parent = nullptr )

Definition at line 28 of file QmitkPointListView.cpp.

References ctxMenu(), m_PointListModel, OnListViewSelectionChanged(), OnPointDoubleClicked(), and OnPointSetSelectionChanged().

◆ ~QmitkPointListView()

QmitkPointListView::~QmitkPointListView ( )

override

Definition at line 62 of file QmitkPointListView.cpp.

References m_PointListModel.

Member Function Documentation

◆ AddSliceNavigationController()

void QmitkPointListView::AddSliceNavigationController ( mitk::SliceNavigationController * snc )

Add a mitk::SliceNavigationController instance.

Parameters

snc	The mitk::SliceNavigationController instance.

This method adds snc to the set of slice navigation controllers which are used to navigate to the selected point.

Definition at line 322 of file QmitkPointListView.cpp.

References m_Sncs.

Referenced by QmitkPointListWidget::AddSliceNavigationController(), and SetMultiWidget().

◆ ClearPointList

void QmitkPointListView::ClearPointList ( )

protectedslot

Delete all points in the list.

Definition at line 284 of file QmitkPointListView.cpp.

References mitk::RenderingManager::GetInstance(), QmitkPointListModel::GetPointSet(), m_PointListModel, QmitkPointListModel::RemoveSelectedPoint(), and mitk::RenderingManager::RequestUpdateAll().

Referenced by ctxMenu().

◆ ClearPointListTS

void QmitkPointListView::ClearPointListTS ( )

protectedslot

delete all points in the list in the current timestep

Definition at line 318 of file QmitkPointListView.cpp.

Referenced by ctxMenu().

◆ ctxMenu

void QmitkPointListView::ctxMenu ( const QPoint & pos )

protectedslot

open ContextMenu

Definition at line 252 of file QmitkPointListView.cpp.

References ClearPointList(), ClearPointListTS(), menu, and SetFading().

Referenced by QmitkPointListView().

◆ GetMultiWidget()

QmitkStdMultiWidget * QmitkPointListView::GetMultiWidget ( ) const

return the QmitkStdMultiWidget that is used for updating render window crosshair

Definition at line 88 of file QmitkPointListView.cpp.

References m_MultiWidget.

◆ GetPointSet()

const mitk::PointSet * QmitkPointListView::GetPointSet ( ) const

which point set to work on

Definition at line 72 of file QmitkPointListView.cpp.

References QmitkPointListModel::GetPointSet(), and m_PointListModel.

◆ keyPressEvent()

void QmitkPointListView::keyPressEvent ( QKeyEvent * e )

overrideprotected

react to F2, F3 and DEL keys

Definition at line 194 of file QmitkPointListView.cpp.

References mitk::Key_Delete, mitk::Key_F2, mitk::Key_F3, m_PointListModel, QmitkPointListModel::MoveSelectedPointDown(), QmitkPointListModel::MoveSelectedPointUp(), and QmitkPointListModel::RemoveSelectedPoint().

◆ OnListViewSelectionChanged

void QmitkPointListView::OnListViewSelectionChanged	(	const QItemSelection &	selected,
		const QItemSelection &	deselected
	)

protectedslot

called when the selection of the view widget changes

Definition at line 138 of file QmitkPointListView.cpp.

References mitk::RenderingManager::GetInstance(), QmitkPointListModel::GetModelIndexForPointID(), mitk::PointSet::GetPoint(), QmitkPointListModel::GetPointSet(), mitk::PointSet::GetPointSet(), QmitkPointListModel::GetTimeStep(), m_PointListModel, m_SelfCall, m_Sncs, mitk::RenderingManager::RequestUpdateAll(), mitk::PointSet::SetSelectInfo(), and SignalPointSelectionChanged().

Referenced by QmitkPointListView().

◆ OnPointDoubleClicked

void QmitkPointListView::OnPointDoubleClicked ( const QModelIndex & index )

protectedslot

Filtering double click event for editing point coordinates via a dialog.

Definition at line 93 of file QmitkPointListView.cpp.

References QmitkPointListModel::GetPointForModelIndex(), QmitkPointListModel::GetPointSet(), QmitkPointListModel::GetTimeStep(), m_PointListModel, and QmitkEditPointDialog::SetPoint().

Referenced by QmitkPointListView().

◆ OnPointSetSelectionChanged

void QmitkPointListView::OnPointSetSelectionChanged ( )

protectedslot

called when the point set data structure changes

Definition at line 103 of file QmitkPointListView.cpp.

References QmitkPointListModel::GetModelIndexForPointID(), mitk::PointSet::GetNumberOfSelected(), QmitkPointListModel::GetPointSet(), QmitkPointListModel::GetTimeStep(), m_PointListModel, m_SelfCall, MITK_ERROR, mitk::PointSet::SearchSelectedPoint(), and SignalPointSelectionChanged().

Referenced by QmitkPointListView().

◆ RemoveSliceNavigationController()

void QmitkPointListView::RemoveSliceNavigationController ( mitk::SliceNavigationController * snc )

Remove a mitk::SliceNavigationController instance.

Parameters

snc	The mitk::SliceNavigationController instance.

This method removes snc from the set of slice navigation controllers which are used to navigate to the selected point.

Definition at line 329 of file QmitkPointListView.cpp.

References m_Sncs.

Referenced by QmitkPointListWidget::RemoveSliceNavigationController().

◆ SetFading

void QmitkPointListView::SetFading ( bool onOff )

protectedslot

Turn TimeStep Fading On/Off.

Definition at line 279 of file QmitkPointListView.cpp.

References m_showFading.

Referenced by ctxMenu().

◆ SetMultiWidget()

void QmitkPointListView::SetMultiWidget ( QmitkStdMultiWidget * multiWidget )

If Multiwidget is set, the crosshair is automatically centering to the selected point As an alternative, if you dont have a multiwidget, you can call SetSnc1, SetSnc2, SetSnc3 to set the SliceNavigationControllers directly to enable the focussing feature.

Definition at line 77 of file QmitkPointListView.cpp.

References AddSliceNavigationController(), QmitkStdMultiWidget::GetRenderWindow1(), QmitkStdMultiWidget::GetRenderWindow2(), QmitkStdMultiWidget::GetRenderWindow3(), mitk::RenderWindowBase::GetSliceNavigationController(), and m_MultiWidget.

Referenced by QmitkPointListWidget::SetMultiWidget().

◆ SetPointSetNode()

void QmitkPointListView::SetPointSetNode ( mitk::DataNode * pointSetNode )

assign a point set for observation

Definition at line 67 of file QmitkPointListView.cpp.

References m_PointListModel, and QmitkPointListModel::SetPointSetNode().

Referenced by QmitkPointListWidget::OnNodeDeleted().

◆ SignalPointSelectionChanged

void QmitkPointListView::SignalPointSelectionChanged ( )

signal

this signal is emmitted, if the selection of a point in the pointset is changed

Referenced by OnListViewSelectionChanged(), and OnPointSetSelectionChanged().

◆ SignalTimeStepChanged

void QmitkPointListView::SignalTimeStepChanged ( int )

signal

Referenced by wheelEvent().

◆ wheelEvent()

void QmitkPointListView::wheelEvent ( QWheelEvent * event )

overrideprotected

change timestep of the current pointset by mouse wheel

Definition at line 217 of file QmitkPointListView.cpp.

References QmitkPointListModel::GetPointSet(), QmitkPointListModel::GetTimeStep(), mitk::BaseData::GetTimeSteps(), m_PointListModel, QmitkPointListModel::SetTimeStep(), and SignalTimeStepChanged().

Member Data Documentation

◆ m_MultiWidget

QmitkStdMultiWidget* QmitkPointListView::m_MultiWidget

protected

used to position the planes on a selected point

Definition at line 117 of file QmitkPointListView.h.

Referenced by GetMultiWidget(), and SetMultiWidget().

◆ m_PointListModel

QmitkPointListModel* QmitkPointListView::m_PointListModel

protected

Definition at line 112 of file QmitkPointListView.h.

Referenced by ClearPointList(), GetPointSet(), keyPressEvent(), OnListViewSelectionChanged(), OnPointDoubleClicked(), OnPointSetSelectionChanged(), QmitkPointListView(), SetPointSetNode(), wheelEvent(), and ~QmitkPointListView().

◆ m_SelfCall

bool QmitkPointListView::m_SelfCall

protected

Definition at line 113 of file QmitkPointListView.h.

Referenced by OnListViewSelectionChanged(), and OnPointSetSelectionChanged().

◆ m_showFading

bool QmitkPointListView::m_showFading

protected

Definition at line 114 of file QmitkPointListView.h.

Referenced by SetFading().

◆ m_Sncs

std::set<mitk::SliceNavigationController *> QmitkPointListView::m_Sncs

protected

Definition at line 110 of file QmitkPointListView.h.

Referenced by AddSliceNavigationController(), OnListViewSelectionChanged(), and RemoveSliceNavigationController().

The documentation for this class was generated from the following files:
