controller that manages the positioning and stacking of QmitkOverlays More...

#include <QmitkOverlayController.h>

Inheritance diagram for QmitkOverlayController:

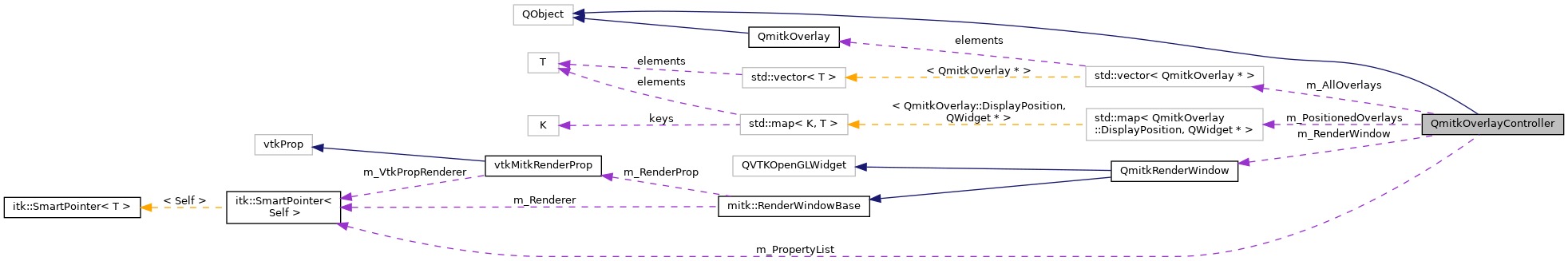

Collaboration diagram for QmitkOverlayController:

[legend]

Public Slots
void	AdjustAllOverlayPosition ()
	adjusts the position of all overlays to the position of the RenderWindow More...

void	AdjustOverlayPosition (QmitkOverlay::DisplayPosition displayPosition)

void	UpdateAllOverlays ()

void	UpdateOverlayData (QmitkOverlay *overlay)

Public Member Functions
	QmitkOverlayController (QmitkRenderWindow rw, mitk::PropertyList pl=nullptr)
	constructor with mandatory QmitkRenderWindow and optional mitk::PropertyList More...

	~QmitkOverlayController () override

void	AddOverlay (QmitkOverlay *)
	adds an instance of QmitkOverlay to the RenderWindow More...

void	RemoveOverlay (QmitkOverlay *)

void	RemoveAllOverlays ()

void	SetOverlayVisibility (bool visible)
	setting the visibility of all overlays More...

mitk::PropertyList *	GetPropertyList ()
	getter for the RenderWindow-specific PropertyList More...

void	SetPropertyList (mitk::PropertyList *)
	setter for the RenderWindow-specific PropertyList More...

Protected Types
typedef std::map< QmitkOverlay::DisplayPosition, QWidget * >	OverlayPositionMap

typedef std::vector< QmitkOverlay * >	OverlayVector

Protected Member Functions
void	InitializeOverlayLayout ()
	setting up the widgets that will hold all overlays More...

virtual void	AlignOverlays ()
	re-aligning the overlays - not implemented yet More...

void	InitializeWidget (QmitkOverlay::DisplayPosition pos)
	initializes one QWidget - internally used by InitializeOverlayLayout() More...

void	RestackOverlays (QmitkOverlay::DisplayPosition pos)

QSize	GetMinimumSizeForWidget (QmitkOverlay::DisplayPosition displayPosition)

Protected Attributes
OverlayVector	m_AllOverlays
	all QmitkOverlays that are currently added More...

OverlayPositionMap	m_PositionedOverlays
	all possible positions and the QWidgets representing the corresponding QmitkOverlays More...

QmitkRenderWindow *	m_RenderWindow
	RenderWindow that all Overlays will be added to. More...

mitk::PropertyList::Pointer	m_PropertyList
	PropertyList for RenderWindow-specific properties. More...

Detailed Description

controller that manages the positioning and stacking of QmitkOverlays

This controller manages all QmitkOverlays of one QmitkRenderWindow.

When constructed, it creates one QWidget for each possible display-position and sets the appropriate attributes and layouts.

It is possible to add new Overlays using AddOverlay( QmitkOverlay ). This overlay will be added to the correct Widget according to its destined position (stored in QmitkOverlay). If this widget already holds an overlay, the layer-property is taken into account. If no layer has been set, the overlay will be appended at the end.

It is possible to set the visibility of all overlays at a time using SetOverlayVisibility(bool).

RenderWindow specific properties can be set using the internal mitk::PropertyList. This propertyList and the 'default' propertyList of the RenderingManager will be concatenated before the overlay is set up. If one property exists in both propertyLists, the one in the QmitkOverlayController will be used!

See also: QmitkOverlay; QmitkRenderWindow

Definition at line 53 of file QmitkOverlayController.h.

Member Typedef Documentation

◆ OverlayPositionMap

typedef std::map<QmitkOverlay::DisplayPosition, QWidget *> QmitkOverlayController::OverlayPositionMap

protected

Definition at line 132 of file QmitkOverlayController.h.

◆ OverlayVector

typedef std::vector<QmitkOverlay *> QmitkOverlayController::OverlayVector

protected

Definition at line 133 of file QmitkOverlayController.h.

Constructor & Destructor Documentation

◆ QmitkOverlayController()

QmitkOverlayController::QmitkOverlayController	(	QmitkRenderWindow *	rw,
		mitk::PropertyList *	pl = `nullptr`
	)

constructor with mandatory QmitkRenderWindow and optional mitk::PropertyList

Definition at line 24 of file QmitkOverlayController.cpp.

References AdjustAllOverlayPosition(), InitializeOverlayLayout(), m_PropertyList, m_RenderWindow, MITK_ERROR, mitk::PropertyList::New(), and SetOverlayVisibility().

◆ ~QmitkOverlayController()

QmitkOverlayController::~QmitkOverlayController ( )

override

Definition at line 43 of file QmitkOverlayController.cpp.

Member Function Documentation

◆ AddOverlay()

void QmitkOverlayController::AddOverlay ( QmitkOverlay * overlay )

adds an instance of QmitkOverlay to the RenderWindow

This method adds the given QmitkOverlay as a sub-widget to the registered RenderWindow. It will be added to the correct position in the RenderWindow as it's defined by the overlays position-variable. The layer-property will only be considered if necessary.

Definition at line 306 of file QmitkOverlayController.cpp.

References AdjustOverlayPosition(), mitk::RenderingManager::GetInstance(), QmitkOverlay::GetPosition(), GetPropertyList(), QmitkOverlay::GetWidget(), m_AllOverlays, m_PositionedOverlays, m_PropertyList, m_RenderWindow, MITK_ERROR, RestackOverlays(), and UpdateOverlayData().

◆ AdjustAllOverlayPosition

void QmitkOverlayController::AdjustAllOverlayPosition ( )

slot

adjusts the position of all overlays to the position of the RenderWindow

This method updates the position of all Widgets according to the position of the RenderWindow and the extend of the overlays.

Definition at line 169 of file QmitkOverlayController.cpp.

References AdjustOverlayPosition(), QmitkOverlay::bottom_Center, QmitkOverlay::bottom_Left, QmitkOverlay::bottom_Right, QmitkOverlay::middle_Left, QmitkOverlay::middle_Right, QmitkOverlay::top_Center, QmitkOverlay::top_Left, and QmitkOverlay::top_Right.

Referenced by QmitkOverlayController().

◆ AdjustOverlayPosition

void QmitkOverlayController::AdjustOverlayPosition ( QmitkOverlay::DisplayPosition displayPosition )

slot

Definition at line 181 of file QmitkOverlayController.cpp.

References QmitkOverlay::bottom_Center, QmitkOverlay::bottom_Left, QmitkOverlay::bottom_Right, GetMinimumSizeForWidget(), m_PositionedOverlays, m_RenderWindow, max(), QmitkOverlay::middle_Left, QmitkOverlay::middle_Right, QmitkOverlay::top_Center, QmitkOverlay::top_Left, and QmitkOverlay::top_Right.

Referenced by AddOverlay(), AdjustAllOverlayPosition(), RemoveOverlay(), and UpdateOverlayData().

◆ AlignOverlays()

void QmitkOverlayController::AlignOverlays ( )

protectedvirtual

re-aligning the overlays - not implemented yet

Definition at line 392 of file QmitkOverlayController.cpp.

◆ GetMinimumSizeForWidget()

QSize QmitkOverlayController::GetMinimumSizeForWidget ( QmitkOverlay::DisplayPosition displayPosition )

protected

Definition at line 477 of file QmitkOverlayController.cpp.

References QmitkOverlay::GetNeededSize(), QmitkOverlay::GetPosition(), m_AllOverlays, and max().

Referenced by AdjustOverlayPosition().

◆ GetPropertyList()

mitk::PropertyList* QmitkOverlayController::GetPropertyList ( )

getter for the RenderWindow-specific PropertyList

Referenced by AddOverlay().

◆ InitializeOverlayLayout()

void QmitkOverlayController::InitializeOverlayLayout ( )

protected

setting up the widgets that will hold all overlays

This method sets up the 8 QWidgets that will later hold all QmitkOverlays. This includes the correct setting of layouts, alignments and the widget attributes necessary to achieve a translucent background and correct rendering on all platforms.

Definition at line 47 of file QmitkOverlayController.cpp.

References QmitkOverlay::bottom_Center, QmitkOverlay::bottom_Left, QmitkOverlay::bottom_Right, InitializeWidget(), QmitkOverlay::middle_Left, QmitkOverlay::middle_Right, QmitkOverlay::top_Center, QmitkOverlay::top_Left, and QmitkOverlay::top_Right.

Referenced by QmitkOverlayController().
