QmitkFramesRegistrationJob Class Reference

#include <QmitkFramesRegistrationJob.h>

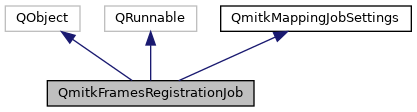

Inheritance diagram for QmitkFramesRegistrationJob:

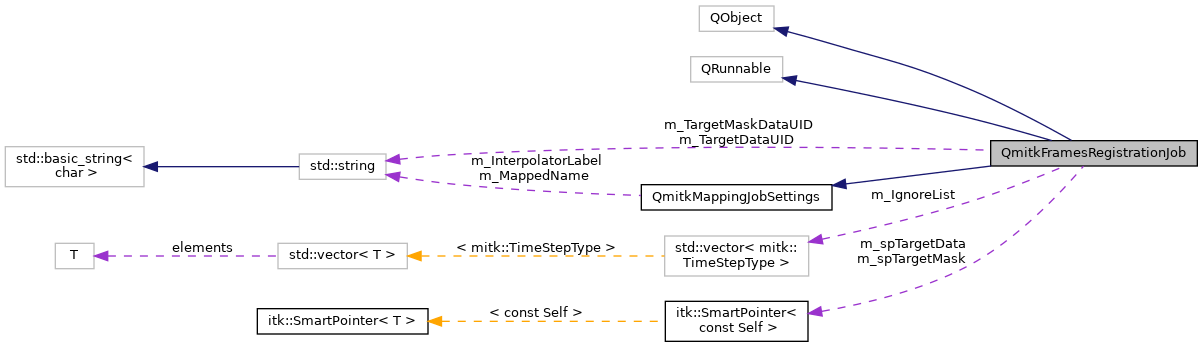

Collaboration diagram for QmitkFramesRegistrationJob:

Signals
void	Finished ()
void	Error (QString err)
void	ResultIsAvailable (mitk::Image::Pointer spResult, const QmitkFramesRegistrationJob *pJob)
void	AlgorithmIterated (QString info, bool hasIterationCount, unsigned long currentIteration)
void	LevelChanged (QString info, bool hasLevelCount, unsigned long currentLevel)
void	AlgorithmStatusChanged (QString info)
void	AlgorithmInfo (QString info)
void	FrameProcessed (double progress)
void	FrameRegistered (double progress)
void	FrameMapped (double progress)

Public Member Functions
	QmitkFramesRegistrationJob (map::algorithm::RegistrationAlgorithmBase *pAlgorithm)
	~QmitkFramesRegistrationJob () override
void	run () override
const map::algorithm::RegistrationAlgorithmBase *	GetLoadedAlgorithm () const
Public Member Functions inherited from QmitkMappingJobSettings
	QmitkMappingJobSettings ()

Public Attributes
mitk::BaseData::ConstPointer	m_spTargetData
mitk::Image::ConstPointer	m_spTargetMask
mitk::TimeFramesRegistrationHelper::IgnoreListType	m_IgnoreList
mitk::NodeUIDType	m_TargetDataUID
mitk::NodeUIDType	m_TargetMaskDataUID
Public Attributes inherited from QmitkMappingJobSettings
std::string	m_MappedName
bool	m_doGeometryRefinement
bool	m_allowUndefPixels
double	m_paddingValue
bool	m_allowUnregPixels
double	m_errorValue
mitk::ImageMappingInterpolator::Type	m_InterpolatorType
std::string	m_InterpolatorLabel

Detailed Description

Simple helper job class that could be used to process a frame registration in a paralell thread. This is e.g. used be plugins to keep the GUI responsive while doing a frame registration

Definition at line 43 of file QmitkFramesRegistrationJob.h.

Constructor & Destructor Documentation

QmitkFramesRegistrationJob()

QmitkFramesRegistrationJob::QmitkFramesRegistrationJob

(

map::algorithm::RegistrationAlgorithmBase *

pAlgorithm

)

Definition at line 151 of file QmitkFramesRegistrationJob.cpp.

References QmitkMappingJobSettings::m_MappedName, and m_spTargetMask.

~QmitkFramesRegistrationJob()

QmitkFramesRegistrationJob::~QmitkFramesRegistrationJob ( )

override

Definition at line 163 of file QmitkFramesRegistrationJob.cpp.

Member Function Documentation

AlgorithmInfo

void QmitkFramesRegistrationJob::AlgorithmInfo ( QString  info )

signal

Referenced by GetLoadedAlgorithm().

AlgorithmIterated

void QmitkFramesRegistrationJob::AlgorithmIterated ( QString  info, bool  hasIterationCount, unsigned long  currentIteration  )

signal

Referenced by GetLoadedAlgorithm().

AlgorithmStatusChanged

void QmitkFramesRegistrationJob::AlgorithmStatusChanged ( QString  info )

signal

Referenced by GetLoadedAlgorithm().

Error

void QmitkFramesRegistrationJob::Error ( QString  err )

signal

Referenced by run().

Finished

void QmitkFramesRegistrationJob::Finished ( )

signal

Referenced by run().

FrameMapped

void QmitkFramesRegistrationJob::FrameMapped ( double  progress )

signal

Referenced by GetLoadedAlgorithm().

FrameProcessed

void QmitkFramesRegistrationJob::FrameProcessed ( double  progress )

signal

Referenced by GetLoadedAlgorithm().

FrameRegistered

void QmitkFramesRegistrationJob::FrameRegistered ( double  progress )

signal

Referenced by GetLoadedAlgorithm().

GetLoadedAlgorithm()

const map::algorithm::RegistrationAlgorithmBase * QmitkFramesRegistrationJob::GetLoadedAlgorithm

(

)

const

Definition at line 39 of file QmitkFramesRegistrationJob.cpp.

References AlgorithmInfo(), AlgorithmIterated(), AlgorithmStatusChanged(), FrameMapped(), FrameProcessed(), FrameRegistered(), info(), and LevelChanged().

LevelChanged

void QmitkFramesRegistrationJob::LevelChanged ( QString  info, bool  hasLevelCount, unsigned long  currentLevel  )

signal

Referenced by GetLoadedAlgorithm().

ResultIsAvailable

void QmitkFramesRegistrationJob::ResultIsAvailable ( mitk::Image::Pointer  spResult, const QmitkFramesRegistrationJob *  pJob  )

signal

Referenced by run().

run()

void QmitkFramesRegistrationJob::run ( )

override

Definition at line 168 of file QmitkFramesRegistrationJob.cpp.

References Error(), Finished(), QmitkMappingJobSettings::m_allowUndefPixels, QmitkMappingJobSettings::m_allowUnregPixels, QmitkMappingJobSettings::m_errorValue, m_IgnoreList, QmitkMappingJobSettings::m_InterpolatorType, QmitkMappingJobSettings::m_paddingValue, m_spTargetMask, mitk::TimeFramesRegistrationHelper::New(), and ResultIsAvailable().

Member Data Documentation

m_IgnoreList

mitk::TimeFramesRegistrationHelper::IgnoreListType QmitkFramesRegistrationJob::m_IgnoreList

Definition at line 76 of file QmitkFramesRegistrationJob.h.

Referenced by run().

m_spTargetData

mitk::BaseData::ConstPointer QmitkFramesRegistrationJob::m_spTargetData

Definition at line 71 of file QmitkFramesRegistrationJob.h.

m_spTargetMask

mitk::Image::ConstPointer QmitkFramesRegistrationJob::m_spTargetMask

Definition at line 73 of file QmitkFramesRegistrationJob.h.

Referenced by QmitkFramesRegistrationJob(), and run().

m_TargetDataUID

mitk::NodeUIDType QmitkFramesRegistrationJob::m_TargetDataUID

Definition at line 77 of file QmitkFramesRegistrationJob.h.

m_TargetMaskDataUID

mitk::NodeUIDType QmitkFramesRegistrationJob::m_TargetMaskDataUID

Definition at line 78 of file QmitkFramesRegistrationJob.h.

---

The documentation for this class was generated from the following files:

• QmitkFramesRegistrationJob.h
• QmitkFramesRegistrationJob.cpp
