#include <QmitkAbstractSemanticRelationsStorageModel.h>

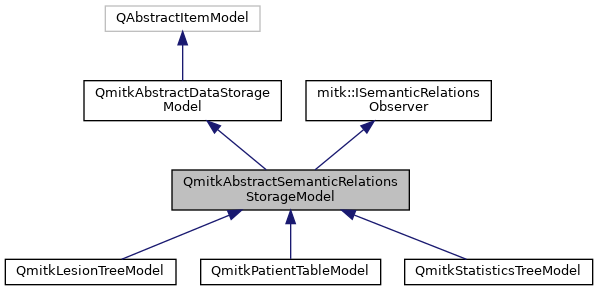

Inheritance diagram for QmitkAbstractSemanticRelationsStorageModel:

[legend]

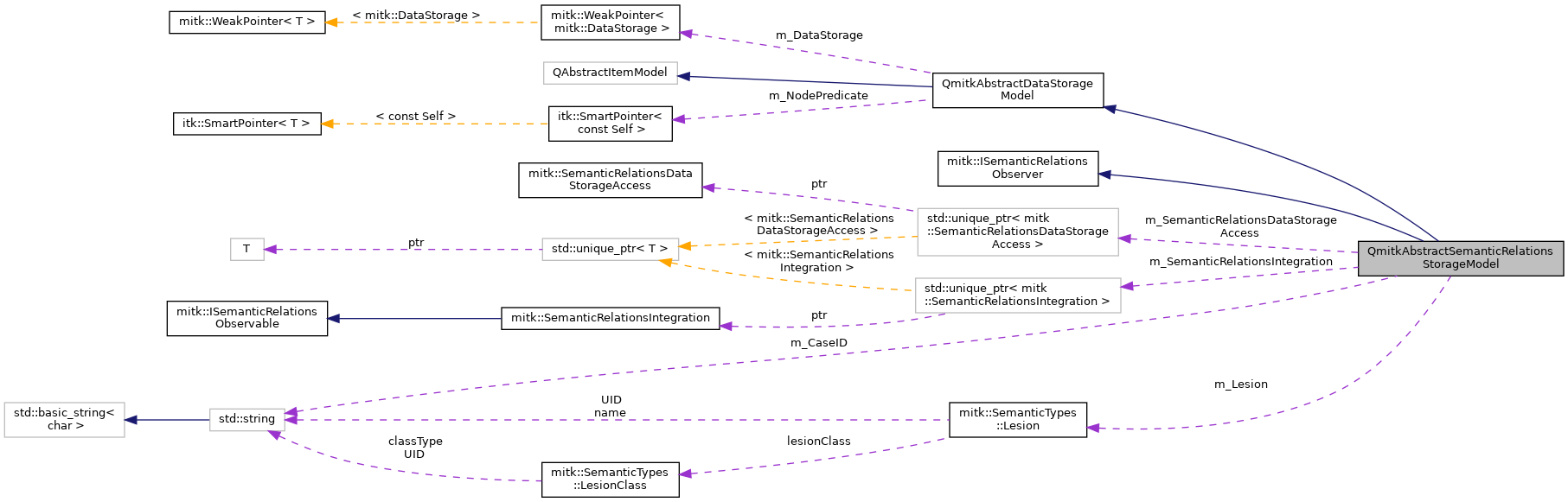

Collaboration diagram for QmitkAbstractSemanticRelationsStorageModel:

[legend]

Signals
void	ModelUpdated ()

Public Member Functions
	QmitkAbstractSemanticRelationsStorageModel (QObject *parent=nullptr)

	~QmitkAbstractSemanticRelationsStorageModel () override

void	Update (const mitk::SemanticTypes::CaseID &caseID) override

void	SetCaseID (const mitk::SemanticTypes::CaseID &caseID)
	Set the current case ID which is needed to access the semantic relations storage. More...

const mitk::SemanticTypes::CaseID &	GetCaseID () const

void	SetLesion (const mitk::SemanticTypes::Lesion &lesion)
	Set the current lesion which can be used to show on which images the lesion is visible. More...

const mitk::SemanticTypes::Lesion &	GetLesion () const

void	SetDataNodeSelection (const QList< mitk::DataNode::Pointer > &dataNodeSelection)
	Set the current data node selection which can be used to show which lesions are visible on the node selection. More...

const QList< mitk::DataNode::Pointer > &	GetSelectedDataNodes () const

void	UpdateModelData ()

Public Member Functions inherited from QmitkAbstractDataStorageModel
	~QmitkAbstractDataStorageModel () override

void	SetDataStorage (mitk::DataStorage *dataStorage)

mitk::DataStorage *	GetDataStorage () const

void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)

const mitk::NodePredicateBase *	GetNodePredicate () const

Protected Member Functions
void	DataStorageChanged () override
	Create a new 'SemanticRelationsDataStorageAccess' instance with the new data storage and update the model data. This functions is called inside the 'SetDataStorage'-function from the parent class. More...

virtual void	SetData ()=0
	This function is called if the model data is updated. It can be used by subclasses to define the way the data of a specific model is generated. It typically consists of access to the semantic relations storage to retrieve certain information. More...

Protected Member Functions inherited from QmitkAbstractDataStorageModel
virtual void	NodePredicateChanged ()=0

virtual void	NodeAdded (const mitk::DataNode *node)=0

virtual void	NodeChanged (const mitk::DataNode *node)=0

virtual void	NodeRemoved (const mitk::DataNode *node)=0

	QmitkAbstractDataStorageModel (QObject *parent=nullptr)

	QmitkAbstractDataStorageModel (mitk::DataStorage dataStorage, QObject parent=nullptr)

Protected Attributes
std::unique_ptr< mitk::SemanticRelationsDataStorageAccess >	m_SemanticRelationsDataStorageAccess

std::unique_ptr< mitk::SemanticRelationsIntegration >	m_SemanticRelationsIntegration

mitk::SemanticTypes::CaseID	m_CaseID

QList< mitk::DataNode::Pointer >	m_SelectedDataNodes

mitk::SemanticTypes::Lesion	m_Lesion

Protected Attributes inherited from QmitkAbstractDataStorageModel
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_NodePredicate

Detailed Description

Definition at line 32 of file QmitkAbstractSemanticRelationsStorageModel.h.

Constructor & Destructor Documentation

◆ QmitkAbstractSemanticRelationsStorageModel()

QmitkAbstractSemanticRelationsStorageModel::QmitkAbstractSemanticRelationsStorageModel ( QObject * parent = nullptr )

Definition at line 18 of file QmitkAbstractSemanticRelationsStorageModel.cpp.

References m_SemanticRelationsIntegration.

◆ ~QmitkAbstractSemanticRelationsStorageModel()

QmitkAbstractSemanticRelationsStorageModel::~QmitkAbstractSemanticRelationsStorageModel ( )

override

Definition at line 26 of file QmitkAbstractSemanticRelationsStorageModel.cpp.

References m_SemanticRelationsIntegration.

Member Function Documentation

◆ DataStorageChanged()

void QmitkAbstractSemanticRelationsStorageModel::DataStorageChanged ( )

overrideprotectedvirtual

Create a new 'SemanticRelationsDataStorageAccess' instance with the new data storage and update the model data. This functions is called inside the 'SetDataStorage'-function from the parent class.

Implements QmitkAbstractDataStorageModel.

Reimplemented in QmitkStatisticsTreeModel.

Definition at line 77 of file QmitkAbstractSemanticRelationsStorageModel.cpp.

References mitk::WeakPointer< T >::Lock(), QmitkAbstractDataStorageModel::m_DataStorage, m_SemanticRelationsDataStorageAccess, and UpdateModelData().

◆ GetCaseID()

const mitk::SemanticTypes::CaseID& QmitkAbstractSemanticRelationsStorageModel::GetCaseID ( ) const

inline

Definition at line 60 of file QmitkAbstractSemanticRelationsStorageModel.h.

◆ GetLesion()

const mitk::SemanticTypes::Lesion& QmitkAbstractSemanticRelationsStorageModel::GetLesion ( ) const

inline

Definition at line 68 of file QmitkAbstractSemanticRelationsStorageModel.h.

Referenced by QmitkPatientTableInspector::Initialize().

◆ GetSelectedDataNodes()

const QList<mitk::DataNode::Pointer>& QmitkAbstractSemanticRelationsStorageModel::GetSelectedDataNodes ( ) const

inline

Definition at line 77 of file QmitkAbstractSemanticRelationsStorageModel.h.

References QmitkAbstractDataStorageModel::DataStorageChanged().

◆ ModelUpdated

void QmitkAbstractSemanticRelationsStorageModel::ModelUpdated ( )

signal

Referenced by QmitkPatientTableInspector::Initialize(), and UpdateModelData().

◆ SetCaseID()

void QmitkAbstractSemanticRelationsStorageModel::SetCaseID ( const mitk::SemanticTypes::CaseID & caseID )

Set the current case ID which is needed to access the semantic relations storage.

Parameters

caseID A case ID as string

Definition at line 43 of file QmitkAbstractSemanticRelationsStorageModel.cpp.

References m_CaseID, and UpdateModelData().

Referenced by QmitkPatientTableInspector::SetCaseID().

◆ SetData()

virtual void QmitkAbstractSemanticRelationsStorageModel::SetData ( )

protectedpure virtual

This function is called if the model data is updated. It can be used by subclasses to define the way the data of a specific model is generated. It typically consists of access to the semantic relations storage to retrieve certain information.

Implemented in QmitkPatientTableModel, QmitkLesionTreeModel, and QmitkStatisticsTreeModel.

Referenced by QmitkStatisticsTreeModel::NodePredicateChanged(), QmitkLesionTreeModel::NodeRemoved(), and UpdateModelData().
