#include <QmitkLesionTreeModel.h>

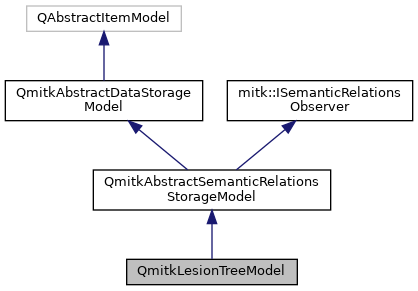

Inheritance diagram for QmitkLesionTreeModel:

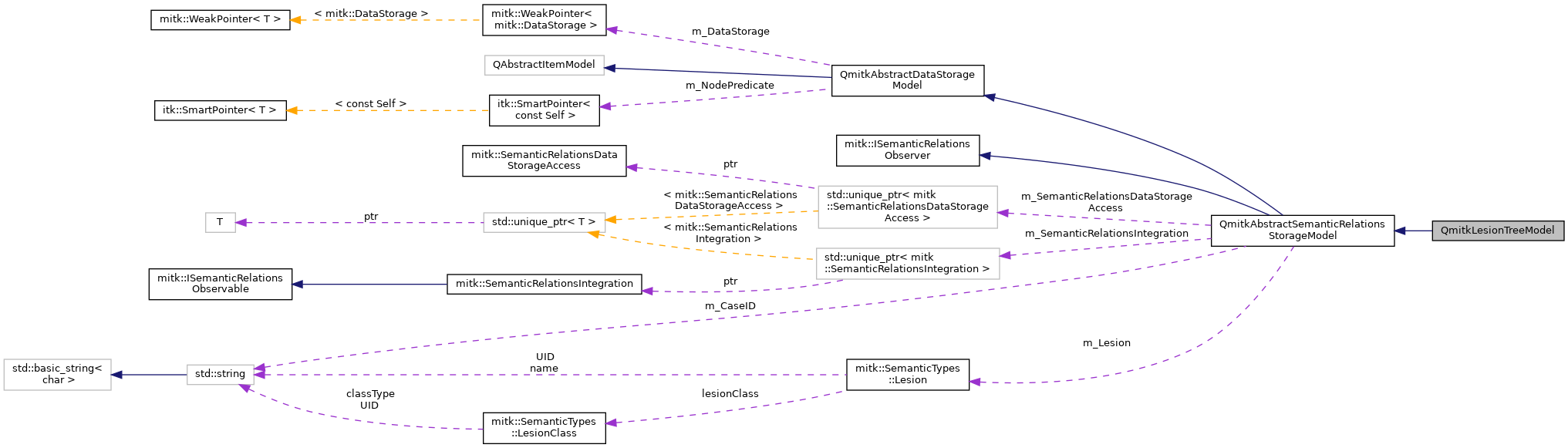

Collaboration diagram for QmitkLesionTreeModel:

[legend]

Public Member Functions
	QmitkLesionTreeModel (QObject *parent=nullptr)
	Initialize the root item of the model. The root item does not have a parent item. More...

QModelIndex	index (int row, int column, const QModelIndex &itemIndex=QModelIndex()) const override

QModelIndex	parent (const QModelIndex &itemIndex) const override

int	rowCount (const QModelIndex &itemIndex=QModelIndex()) const override

int	columnCount (const QModelIndex &itemIndex=QModelIndex()) const override

QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const override

QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const override

const mitk::DataNode *	GetLastSegmentation () const

Public Member Functions inherited from QmitkAbstractSemanticRelationsStorageModel
	QmitkAbstractSemanticRelationsStorageModel (QObject *parent=nullptr)

	~QmitkAbstractSemanticRelationsStorageModel () override

void	Update (const mitk::SemanticTypes::CaseID &caseID) override

void	SetCaseID (const mitk::SemanticTypes::CaseID &caseID)
	Set the current case ID which is needed to access the semantic relations storage. More...

const mitk::SemanticTypes::CaseID &	GetCaseID () const

void	SetLesion (const mitk::SemanticTypes::Lesion &lesion)
	Set the current lesion which can be used to show on which images the lesion is visible. More...

const mitk::SemanticTypes::Lesion &	GetLesion () const

void	SetDataNodeSelection (const QList< mitk::DataNode::Pointer > &dataNodeSelection)
	Set the current data node selection which can be used to show which lesions are visible on the node selection. More...

const QList< mitk::DataNode::Pointer > &	GetSelectedDataNodes () const

void	UpdateModelData ()

Public Member Functions inherited from QmitkAbstractDataStorageModel
	~QmitkAbstractDataStorageModel () override

void	SetDataStorage (mitk::DataStorage *dataStorage)

mitk::DataStorage *	GetDataStorage () const

void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)

const mitk::NodePredicateBase *	GetNodePredicate () const

Protected Member Functions
void	NodePredicateChanged () override

void	NodeAdded (const mitk::DataNode *) override

void	NodeChanged (const mitk::DataNode *) override

void	NodeRemoved (const mitk::DataNode *) override

void	SetData () override
	Overridden from 'QmitkAbstractSemanticRelationsStorageModel': This function retrieves all control points of the current case and stores them to define the header of the tree. Furthermore all lesions are retrieved and the lesion data is stored and show in the tree view. More...

Protected Member Functions inherited from QmitkAbstractSemanticRelationsStorageModel
void	DataStorageChanged () override
	Create a new 'SemanticRelationsDataStorageAccess' instance with the new data storage and update the model data. This functions is called inside the 'SetDataStorage'-function from the parent class. More...

Protected Member Functions inherited from QmitkAbstractDataStorageModel
	QmitkAbstractDataStorageModel (QObject *parent=nullptr)

	QmitkAbstractDataStorageModel (mitk::DataStorage dataStorage, QObject parent=nullptr)

Additional Inherited Members
Signals inherited from QmitkAbstractSemanticRelationsStorageModel
void	ModelUpdated ()

Protected Attributes inherited from QmitkAbstractSemanticRelationsStorageModel
std::unique_ptr< mitk::SemanticRelationsDataStorageAccess >	m_SemanticRelationsDataStorageAccess

std::unique_ptr< mitk::SemanticRelationsIntegration >	m_SemanticRelationsIntegration

mitk::SemanticTypes::CaseID	m_CaseID

QList< mitk::DataNode::Pointer >	m_SelectedDataNodes

mitk::SemanticTypes::Lesion	m_Lesion

Protected Attributes inherited from QmitkAbstractDataStorageModel
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_NodePredicate

Detailed Description

Definition at line 37 of file QmitkLesionTreeModel.h.

Constructor & Destructor Documentation

◆ QmitkLesionTreeModel()

QmitkLesionTreeModel::QmitkLesionTreeModel ( QObject * parent = nullptr )

Initialize the root item of the model. The root item does not have a parent item.

Definition at line 27 of file QmitkLesionTreeModel.cpp.

Member Function Documentation

◆ columnCount()

int QmitkLesionTreeModel::columnCount ( const QModelIndex & itemIndex = QModelIndex() ) const

override

Definition at line 81 of file QmitkLesionTreeModel.cpp.

◆ data()

QVariant QmitkLesionTreeModel::data	(	const QModelIndex &	index,
		int	role = `Qt::DisplayRole`
	)		const

override

Definition at line 92 of file QmitkLesionTreeModel.cpp.

References QmitkLesionTreeItem::GetData(), mitk::LesionData::GetLesion(), mitk::LesionData::GetLesionName(), mitk::LesionData::GetLesionPresence(), mitk::LesionData::GetLesionUID(), QmitkLesionTreeItem::GetParent(), and mitk::SemanticTypes::Lesion::UID.

◆ GetLastSegmentation()

const mitk::DataNode * QmitkLesionTreeModel::GetLastSegmentation ( ) const

Definition at line 189 of file QmitkLesionTreeModel.cpp.

◆ headerData()

QVariant QmitkLesionTreeModel::headerData	(	int	section,
		Qt::Orientation	orientation,
		int	role = `Qt::DisplayRole`
	)		const

override

Definition at line 164 of file QmitkLesionTreeModel.cpp.

References mitk::SemanticTypes::ControlPoint::ToString().

◆ index()

QModelIndex QmitkLesionTreeModel::index	(	int	row,
		int	column,
		const QModelIndex &	itemIndex = `QModelIndex()`
	)		const

override

Definition at line 38 of file QmitkLesionTreeModel.cpp.

References QmitkLesionTreeItem::GetChildInRow().

Referenced by SetData().

◆ NodeAdded()

void QmitkLesionTreeModel::NodeAdded ( const mitk::DataNode * dataNode )

overrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 194 of file QmitkLesionTreeModel.cpp.

References mitk::NodePredicates::GetSegmentationPredicate().

◆ NodeChanged()

void QmitkLesionTreeModel::NodeChanged ( const mitk::DataNode * )

inlineoverrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 71 of file QmitkLesionTreeModel.h.

◆ NodePredicateChanged()

void QmitkLesionTreeModel::NodePredicateChanged ( )

inlineoverrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 69 of file QmitkLesionTreeModel.h.

References QmitkAbstractDataStorageModel::NodeAdded().

◆ NodeRemoved()

void QmitkLesionTreeModel::NodeRemoved ( const mitk::DataNode * )

inlineoverrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 72 of file QmitkLesionTreeModel.h.

References mitk::RelationStorage::AddLesion(), and QmitkAbstractSemanticRelationsStorageModel::SetData().

◆ parent()

QModelIndex QmitkLesionTreeModel::parent ( const QModelIndex & itemIndex ) const

override

Definition at line 54 of file QmitkLesionTreeModel.cpp.

References QmitkLesionTreeItem::GetParent().

◆ rowCount()

int QmitkLesionTreeModel::rowCount ( const QModelIndex & itemIndex = QModelIndex() ) const

override

Definition at line 76 of file QmitkLesionTreeModel.cpp.

References QmitkLesionTreeItem::ChildCount().

◆ SetData()

void QmitkLesionTreeModel::SetData ( )

overrideprotectedvirtual

Overridden from 'QmitkAbstractSemanticRelationsStorageModel': This function retrieves all control points of the current case and stores them to define the header of the tree. Furthermore all lesions are retrieved and the lesion data is stored and show in the tree view.

Implements QmitkAbstractSemanticRelationsStorageModel.

Definition at line 202 of file QmitkLesionTreeModel.cpp.

References mitk::ComputeLesionPresence(), mitk::RelationStorage::GetAllControlPointsOfCase(), mitk::RelationStorage::GetAllLesionsOfCase(), index(), mitk::SemanticRelationsInference::InstanceExists(), mitk::WeakPointer< T >::IsExpired(), mitk::SemanticRelationsInference::IsLesionPresent(), mitk::WeakPointer< T >::Lock(), QmitkAbstractSemanticRelationsStorageModel::m_CaseID, QmitkAbstractDataStorageModel::m_DataStorage, QmitkAbstractSemanticRelationsStorageModel::m_SelectedDataNodes, and mitk::SemanticTypes::Lesion::UID.

The documentation for this class was generated from the following files:
