The QmitkPatientTableModel is a subclass of the QmitkAbstractSemanticRelationsStorageModel and holds the semantic relations data of the currently selected case. More...

#include <QmitkPatientTableModel.h>

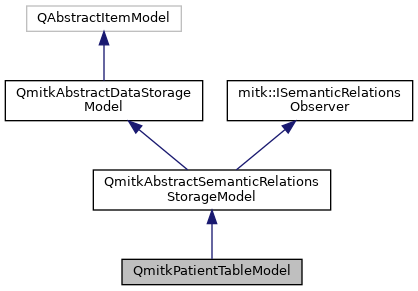

Inheritance diagram for QmitkPatientTableModel:

[legend]

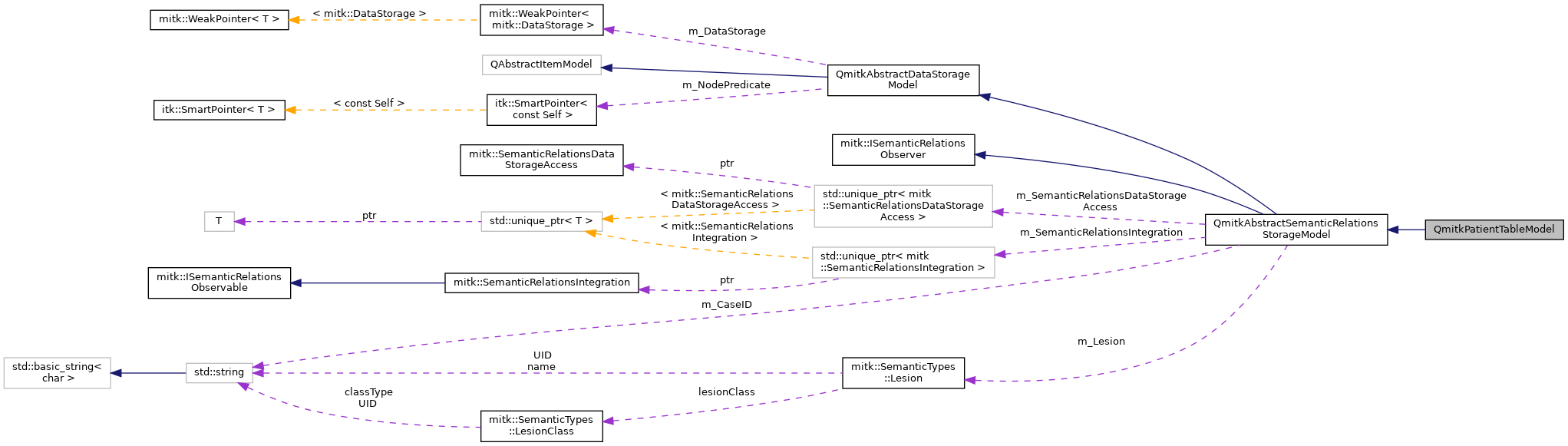

Collaboration diagram for QmitkPatientTableModel:

[legend]

Public Member Functions
	QmitkPatientTableModel (QObject *parent=nullptr)

	~QmitkPatientTableModel () override

QModelIndex	index (int row, int column, const QModelIndex &parent=QModelIndex()) const override

QModelIndex	parent (const QModelIndex &child) const override

int	rowCount (const QModelIndex &parent=QModelIndex()) const override

int	columnCount (const QModelIndex &parent=QModelIndex()) const override

QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const override

QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const override

Qt::ItemFlags	flags (const QModelIndex &index) const override

void	SetNodeType (const std::string &nodeType)
	end override More...

Public Member Functions inherited from QmitkAbstractSemanticRelationsStorageModel
	QmitkAbstractSemanticRelationsStorageModel (QObject *parent=nullptr)

	~QmitkAbstractSemanticRelationsStorageModel () override

void	Update (const mitk::SemanticTypes::CaseID &caseID) override

void	SetCaseID (const mitk::SemanticTypes::CaseID &caseID)
	Set the current case ID which is needed to access the semantic relations storage. More...

const mitk::SemanticTypes::CaseID &	GetCaseID () const

void	SetLesion (const mitk::SemanticTypes::Lesion &lesion)
	Set the current lesion which can be used to show on which images the lesion is visible. More...

const mitk::SemanticTypes::Lesion &	GetLesion () const

void	SetDataNodeSelection (const QList< mitk::DataNode::Pointer > &dataNodeSelection)
	Set the current data node selection which can be used to show which lesions are visible on the node selection. More...

const QList< mitk::DataNode::Pointer > &	GetSelectedDataNodes () const

void	UpdateModelData ()

Public Member Functions inherited from QmitkAbstractDataStorageModel
	~QmitkAbstractDataStorageModel () override

void	SetDataStorage (mitk::DataStorage *dataStorage)

mitk::DataStorage *	GetDataStorage () const

void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)

const mitk::NodePredicateBase *	GetNodePredicate () const

Protected Member Functions
void	NodePredicateChanged () override

void	NodeAdded (const mitk::DataNode *) override

void	NodeChanged (const mitk::DataNode *) override

void	NodeRemoved (const mitk::DataNode *) override

void	SetData () override
	Overridden from 'QmitkAbstractSemanticRelationsStorageModel': This function retrieves all control points and information types of the current case and stores them to define the header of the table. Furthermore all images are retrieved and the pixmap of the images are generated and stored. More...

Protected Member Functions inherited from QmitkAbstractSemanticRelationsStorageModel
void	DataStorageChanged () override
	Create a new 'SemanticRelationsDataStorageAccess' instance with the new data storage and update the model data. This functions is called inside the 'SetDataStorage'-function from the parent class. More...

Protected Member Functions inherited from QmitkAbstractDataStorageModel
	QmitkAbstractDataStorageModel (QObject *parent=nullptr)

	QmitkAbstractDataStorageModel (mitk::DataStorage dataStorage, QObject parent=nullptr)

Additional Inherited Members
Signals inherited from QmitkAbstractSemanticRelationsStorageModel
void	ModelUpdated ()

Protected Attributes inherited from QmitkAbstractSemanticRelationsStorageModel
std::unique_ptr< mitk::SemanticRelationsDataStorageAccess >	m_SemanticRelationsDataStorageAccess

std::unique_ptr< mitk::SemanticRelationsIntegration >	m_SemanticRelationsIntegration

mitk::SemanticTypes::CaseID	m_CaseID

QList< mitk::DataNode::Pointer >	m_SelectedDataNodes

mitk::SemanticTypes::Lesion	m_Lesion

Protected Attributes inherited from QmitkAbstractDataStorageModel
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_NodePredicate

Detailed Description

The QmitkPatientTableModel is a subclass of the QmitkAbstractSemanticRelationsStorageModel and holds the semantic relations data of the currently selected case.

The QmitkPatientTableModel uses the 'data' function to return either the data node of a table cell or the thumbnail of the underlying image. The horizontal header of the table shows the control points of the current case and the vertical header of the table shows the information types of the current case. Using the 'GetFilteredData'-function of the SemanticRelations-class the model is able to retrieve the correct data node for each table entry.

Additionally the model creates and holds the QPixmaps of the known data nodes in order to return a thumbnail, if needed.

Definition at line 39 of file QmitkPatientTableModel.h.

Constructor & Destructor Documentation

◆ QmitkPatientTableModel()

QmitkPatientTableModel::QmitkPatientTableModel ( QObject * parent = nullptr )

Definition at line 35 of file QmitkPatientTableModel.cpp.

◆ ~QmitkPatientTableModel()

QmitkPatientTableModel::~QmitkPatientTableModel ( )

override

Definition at line 42 of file QmitkPatientTableModel.cpp.

Member Function Documentation

◆ columnCount()

int QmitkPatientTableModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

override

Definition at line 72 of file QmitkPatientTableModel.cpp.

◆ data()

QVariant QmitkPatientTableModel::data	(	const QModelIndex &	index,
		int	role = `Qt::DisplayRole`
	)		const

override

Definition at line 82 of file QmitkPatientTableModel.cpp.

References QmitkPatientTableHeaderView::HorizontalHeaderDataRole, QmitkDataNodeRawPointerRole, and QmitkDataNodeRole.

Referenced by QmitkPatientTableInspector::Initialize().

◆ flags()

Qt::ItemFlags QmitkPatientTableModel::flags ( const QModelIndex & index ) const

override

Definition at line 154 of file QmitkPatientTableModel.cpp.

◆ headerData()

QVariant QmitkPatientTableModel::headerData	(	int	section,
		Qt::Orientation	orientation,
		int	role = `Qt::DisplayRole`
	)		const

override

Definition at line 140 of file QmitkPatientTableModel.cpp.

◆ index()

QModelIndex QmitkPatientTableModel::index	(	int	row,
		int	column,
		const QModelIndex &	parent = `QModelIndex()`
	)		const

override

Definition at line 47 of file QmitkPatientTableModel.cpp.

Referenced by SetData().

◆ NodeAdded()

void QmitkPatientTableModel::NodeAdded ( const mitk::DataNode * )

inlineoverrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 72 of file QmitkPatientTableModel.h.

◆ NodeChanged()

void QmitkPatientTableModel::NodeChanged ( const mitk::DataNode * )

inlineoverrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 73 of file QmitkPatientTableModel.h.

◆ NodePredicateChanged()

void QmitkPatientTableModel::NodePredicateChanged ( )

overrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 172 of file QmitkPatientTableModel.cpp.

References QmitkAbstractSemanticRelationsStorageModel::UpdateModelData().

◆ NodeRemoved()

void QmitkPatientTableModel::NodeRemoved ( const mitk::DataNode * )

inlineoverrideprotectedvirtual

Implements QmitkAbstractDataStorageModel.

Definition at line 74 of file QmitkPatientTableModel.h.

References SetData().

◆ parent()

QModelIndex QmitkPatientTableModel::parent ( const QModelIndex & child ) const

override

Definition at line 57 of file QmitkPatientTableModel.cpp.

◆ rowCount()

int QmitkPatientTableModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

override

Definition at line 62 of file QmitkPatientTableModel.cpp.

◆ SetData()

void QmitkPatientTableModel::SetData ( )

overrideprotectedvirtual

Overridden from 'QmitkAbstractSemanticRelationsStorageModel': This function retrieves all control points and information types of the current case and stores them to define the header of the table. Furthermore all images are retrieved and the pixmap of the images are generated and stored.

Implements QmitkAbstractSemanticRelationsStorageModel.

Definition at line 177 of file QmitkPatientTableModel.cpp.

References mitk::RelationStorage::GetAllExaminationPeriodsOfCase(), mitk::RelationStorage::GetAllInformationTypesOfCase(), mitk::GetControlPointByUID(), QmitkSemanticRelationsUIHelper::GetPixmapFromImageNode(), index(), mitk::SemanticRelationsInference::InstanceExists(), mitk::SemanticRelationsInference::IsLesionPresent(), QmitkAbstractSemanticRelationsStorageModel::m_CaseID, QmitkAbstractSemanticRelationsStorageModel::m_Lesion, QmitkAbstractSemanticRelationsStorageModel::m_SemanticRelationsDataStorageAccess, mitk::RelationStorage::RenameExaminationPeriod(), and mitk::SortAllExaminationPeriods().
