QmitkAbstractMultiWidget Class Referenceabstract

The 'QmitkAbstractMultiWidget' is a 'QWidget' that can be subclassed to display multiple render windows at once. Render windows can dynamically be added and removed to change the layout of the multi widget. A subclass of this multi widget can be used inside a 'QmitkAbstractMultiWidgetEditor'. More...

#include <QmitkAbstractMultiWidget.h>

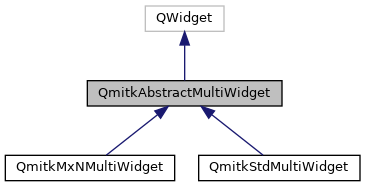

Inheritance diagram for QmitkAbstractMultiWidget:
Inheritance graph
[legend]
Collaboration diagram for QmitkAbstractMultiWidget:
Collaboration graph
[legend]

Public Types

using RenderWindowWidgetPointer = std::shared_ptr< QmitkRenderWindowWidget >

using RenderWindowWidgetMap = std::map< QString, std::shared_ptr< QmitkRenderWindowWidget > >

using RenderWindowHash = QHash< QString, QmitkRenderWindow * >

using ViewDirection = mitk::BaseRenderer::ViewDirection


Signals

void ActiveRenderWindowChanged ()


Public Member Functions

 QmitkAbstractMultiWidget (QWidget *parent=0, Qt::WindowFlags f=0, const QString &multiWidgetName="multiwidget")

virtual ~QmitkAbstractMultiWidget ()

virtual void InitializeMultiWidget ()=0

virtual void MultiWidgetOpened ()

virtual void MultiWidgetClosed ()

virtual void SetDataStorage (mitk::DataStorage *dataStorage)

mitk::DataStorage * GetDataStorage () const

int GetRowCount () const

int GetColumnCount () const

virtual void SetLayout (int row, int column)

virtual void Synchronize (bool)

virtual void SetInteractionScheme (mitk::InteractionSchemeSwitcher::InteractionScheme scheme)

mitk::InteractionEventHandler * GetInteractionEventHandler ()

void SetDisplayActionEventHandler (std::unique_ptr< mitk::DisplayActionEventHandler > displayActionEventHandler)

mitk::DisplayActionEventHandler * GetDisplayActionEventHandler ()

RenderWindowWidgetMap GetRenderWindowWidgets () const

RenderWindowWidgetMap Get2DRenderWindowWidgets () const

RenderWindowWidgetMap Get3DRenderWindowWidgets () const

RenderWindowWidgetPointer GetRenderWindowWidget (int row, int column) const

RenderWindowWidgetPointer GetRenderWindowWidget (const QString &widgetName) const

RenderWindowWidgetPointer GetRenderWindowWidget (const QmitkRenderWindow *renderWindow) const

RenderWindowHash GetRenderWindows () const

QmitkRenderWindow * GetRenderWindow (int row, int column) const

virtual QmitkRenderWindow * GetRenderWindow (const QString &widgetName) const

virtual QmitkRenderWindow * GetRenderWindow (const ViewDirection &viewDirection) const =0

virtual void SetActiveRenderWindowWidget (RenderWindowWidgetPointer activeRenderWindowWidget)

RenderWindowWidgetPointer GetActiveRenderWindowWidget () const

RenderWindowWidgetPointer GetFirstRenderWindowWidget () const

RenderWindowWidgetPointer GetLastRenderWindowWidget () const

virtual QString GetNameFromIndex (int row, int column) const

virtual QString GetNameFromIndex (vcl_size_t index) const

unsigned int GetNumberOfRenderWindowWidgets () const

void RequestUpdate (const QString &widgetName)

void RequestUpdateAll ()

void ForceImmediateUpdate (const QString &widgetName)

void ForceImmediateUpdateAll ()

virtual void SetSelectedPosition (const mitk::Point3D &newPosition, const QString &widgetName)=0

virtual const mitk::Point3D GetSelectedPosition (const QString &widgetName) const =0

virtual void SetCrosshairVisibility (bool visible)=0

virtual bool GetCrosshairVisibility () const =0

virtual void ResetCrosshair ()=0

virtual void SetWidgetPlaneMode (int mode)=0

virtual void ActivateMenuWidget (bool state)

virtual bool IsMenuWidgetEnabled () const

QmitkMultiWidgetLayoutManager * GetMultiWidgetLayoutManager () const


Protected Member Functions

virtual void AddRenderWindowWidget (const QString &widgetName, RenderWindowWidgetPointer renderWindowWidget)

virtual void RemoveRenderWindowWidget ()


Detailed Description

The 'QmitkAbstractMultiWidget' is a 'QWidget' that can be subclassed to display multiple render windows at once. Render windows can dynamically be added and removed to change the layout of the multi widget. A subclass of this multi widget can be used inside a 'QmitkAbstractMultiWidgetEditor'.

The class uses the 'DisplayActionEventBroadcast' and 'DisplayActionEventHandler' classes to load a state machine and set an event configuration.

Using the 'Synchronize' function the user can enable or disable the synchronization of display action events. See 'DisplayActionEventFunctions'-class for the different synchronized and non-synchronized functions used.

Definition at line 53 of file QmitkAbstractMultiWidget.h.

Member Typedef Documentation

◆ RenderWindowHash

using QmitkAbstractMultiWidget::RenderWindowHash = QHash<QString, QmitkRenderWindow*>

Definition at line 61 of file QmitkAbstractMultiWidget.h.

◆ RenderWindowWidgetMap

using QmitkAbstractMultiWidget::RenderWindowWidgetMap = std::map<QString, std::shared_ptr<QmitkRenderWindowWidget> >

Definition at line 60 of file QmitkAbstractMultiWidget.h.

◆ RenderWindowWidgetPointer

using QmitkAbstractMultiWidget::RenderWindowWidgetPointer = std::shared_ptr<QmitkRenderWindowWidget>

Definition at line 59 of file QmitkAbstractMultiWidget.h.

◆ ViewDirection

using QmitkAbstractMultiWidget::ViewDirection = mitk::BaseRenderer::ViewDirection

Definition at line 62 of file QmitkAbstractMultiWidget.h.

Constructor & Destructor Documentation

◆ QmitkAbstractMultiWidget()

QmitkAbstractMultiWidget::QmitkAbstractMultiWidget ( QWidget *  parent = 0,
Qt::WindowFlags  f = 0,
const QString &  multiWidgetName = "multiwidget"
)

Definition at line 85 of file QmitkAbstractMultiWidget.cpp.

◆ ~QmitkAbstractMultiWidget()

QmitkAbstractMultiWidget::~QmitkAbstractMultiWidget ( )
virtual

Definition at line 94 of file QmitkAbstractMultiWidget.cpp.

Member Function Documentation

◆ ActivateMenuWidget()

void QmitkAbstractMultiWidget::ActivateMenuWidget ( bool  state)
virtual

Definition at line 347 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::InitializeMultiWidget(), QmitkStdMultiWidgetEditor::PartHidden(), QmitkStdMultiWidgetEditor::PartVisible(), QmitkMultiWidgetLayoutManager::RemoveOneLayout(), QmitkMultiWidgetLayoutManager::SetAll2DLeft3DRightLayout(), QmitkMultiWidgetLayoutManager::SetAll2DTop3DBottomLayout(), QmitkMultiWidgetLayoutManager::SetAllHorizontalLayout(), QmitkMultiWidgetLayoutManager::SetAllVerticalLayout(), QmitkMultiWidgetLayoutManager::SetDefaultLayout(), QmitkMultiWidgetLayoutManager::SetOneBigLayout(), QmitkMultiWidgetLayoutManager::SetOneLeft3DRightLayout(), QmitkMultiWidgetLayoutManager::SetOneTop3DBottomLayout(), QmitkMultiWidgetLayoutManager::SetOnly2DHorizontalLayout(), and QmitkMultiWidgetLayoutManager::SetOnly2DVerticalLayout().

◆ ActiveRenderWindowChanged

void QmitkAbstractMultiWidget::ActiveRenderWindowChanged ( )
signal

Referenced by SetActiveRenderWindowWidget().

◆ AddRenderWindowWidget()

void QmitkAbstractMultiWidget::AddRenderWindowWidget ( const QString &  widgetName,
RenderWindowWidgetPointer  renderWindowWidget
)
protectedvirtual

Definition at line 366 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::moveEvent(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ ForceImmediateUpdate()

void QmitkAbstractMultiWidget::ForceImmediateUpdate ( const QString &  widgetName)

Definition at line 330 of file QmitkAbstractMultiWidget.cpp.

References GetRenderWindowWidget().

◆ ForceImmediateUpdateAll()

void QmitkAbstractMultiWidget::ForceImmediateUpdateAll ( )

Definition at line 339 of file QmitkAbstractMultiWidget.cpp.

◆ Get2DRenderWindowWidgets()

QmitkAbstractMultiWidget::RenderWindowWidgetMap QmitkAbstractMultiWidget::Get2DRenderWindowWidgets ( ) const

Definition at line 160 of file QmitkAbstractMultiWidget.cpp.

References mitk::BaseRenderer::GetInstance(), GetRenderWindowWidgets(), and mitk::BaseRenderer::Standard2D.

Referenced by QmitkMultiWidgetLayoutManager::SetAll2DLeft3DRightLayout(), QmitkMultiWidgetLayoutManager::SetAll2DTop3DBottomLayout(), QmitkMultiWidgetLayoutManager::SetOnly2DHorizontalLayout(), and QmitkMultiWidgetLayoutManager::SetOnly2DVerticalLayout().

◆ Get3DRenderWindowWidgets()

QmitkAbstractMultiWidget::RenderWindowWidgetMap QmitkAbstractMultiWidget::Get3DRenderWindowWidgets ( ) const

Definition at line 177 of file QmitkAbstractMultiWidget.cpp.

References mitk::BaseRenderer::GetInstance(), GetRenderWindowWidgets(), and mitk::BaseRenderer::Standard3D.

Referenced by QmitkMultiWidgetLayoutManager::SetAll2DLeft3DRightLayout(), QmitkMultiWidgetLayoutManager::SetAll2DTop3DBottomLayout(), QmitkMultiWidgetLayoutManager::SetOneLeft3DRightLayout(), and QmitkMultiWidgetLayoutManager::SetOneTop3DBottomLayout().

◆ GetActiveRenderWindowWidget()

QmitkAbstractMultiWidget::RenderWindowWidgetPointer QmitkAbstractMultiWidget::GetActiveRenderWindowWidget ( ) const

Definition at line 259 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::GetRenderWindow(), QmitkMxNMultiWidget::SetActiveRenderWindowWidget(), and QmitkMxNMultiWidget::SetSelectedPosition().

◆ GetColumnCount()

int QmitkAbstractMultiWidget::GetColumnCount ( ) const

Definition at line 111 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::moveEvent(), and QmitkMultiWidgetLayoutManager::SetDefaultLayout().

◆ GetCrosshairVisibility()

virtual bool QmitkAbstractMultiWidget::GetCrosshairVisibility ( ) const
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

◆ GetDataStorage()

mitk::DataStorage * QmitkAbstractMultiWidget::GetDataStorage ( ) const

Definition at line 101 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkStdMultiWidget::AddPlanesToDataStorage(), QmitkStdMultiWidget::HandleCrosshairPositionEventDelayed(), QmitkMxNMultiWidget::moveEvent(), QmitkStdMultiWidget::RemovePlanesFromDataStorage(), QmitkStdMultiWidget::ResetCrosshair(), QmitkMxNMultiWidget::ResetCrosshair(), QmitkStdMultiWidget::SetWidgetPlanesVisibility(), and QmitkStdMultiWidget::SetWidgetPlaneVisibility().

◆ GetDisplayActionEventHandler()

mitk::DisplayActionEventHandler * QmitkAbstractMultiWidget::GetDisplayActionEventHandler ( )

Definition at line 150 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkStdMultiWidget::InitializeMultiWidget(), QmitkMxNMultiWidget::InitializeMultiWidget(), and QmitkMxNMultiWidget::Synchronize().

◆ GetFirstRenderWindowWidget()

QmitkAbstractMultiWidget::RenderWindowWidgetPointer QmitkAbstractMultiWidget::GetFirstRenderWindowWidget ( ) const

Definition at line 264 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::moveEvent().

◆ GetInteractionEventHandler()

mitk::InteractionEventHandler * QmitkAbstractMultiWidget::GetInteractionEventHandler ( )

Definition at line 139 of file QmitkAbstractMultiWidget.cpp.

Referenced by SetInteractionScheme().

◆ GetLastRenderWindowWidget()

QmitkAbstractMultiWidget::RenderWindowWidgetPointer QmitkAbstractMultiWidget::GetLastRenderWindowWidget ( ) const

Definition at line 276 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMultiWidgetDecorationManager::AreAllCornerAnnotationsVisible(), and QmitkMultiWidgetDecorationManager::ShowLogo().

◆ GetMultiWidgetLayoutManager()

QmitkMultiWidgetLayoutManager * QmitkAbstractMultiWidget::GetMultiWidgetLayoutManager ( ) const

Definition at line 361 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::moveEvent(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ GetNameFromIndex() [1/2]

QString QmitkAbstractMultiWidget::GetNameFromIndex ( int  row,
int  column
) const
virtual

Definition at line 288 of file QmitkAbstractMultiWidget.cpp.

Referenced by GetRenderWindow(), QmitkStdMultiWidget::GetRenderWindow1(), QmitkStdMultiWidget::GetRenderWindow2(), QmitkStdMultiWidget::GetRenderWindow3(), QmitkStdMultiWidget::GetRenderWindow4(), GetRenderWindowWidget(), QmitkMxNMultiWidget::moveEvent(), RemoveRenderWindowWidget(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ GetNameFromIndex() [2/2]

QString QmitkAbstractMultiWidget::GetNameFromIndex ( vcl_size_t  index) const
virtual

Definition at line 298 of file QmitkAbstractMultiWidget.cpp.

◆ GetNumberOfRenderWindowWidgets()

unsigned int QmitkAbstractMultiWidget::GetNumberOfRenderWindowWidgets ( ) const

Definition at line 308 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::moveEvent().

◆ GetRenderWindow() [1/3]

QmitkRenderWindow * QmitkAbstractMultiWidget::GetRenderWindow ( int  row,
int  column
) const

Definition at line 237 of file QmitkAbstractMultiWidget.cpp.

References GetNameFromIndex().

Referenced by QmitkStdMultiWidget::GetRenderWindow(), QmitkMxNMultiWidget::GetRenderWindow(), QmitkStdMultiWidget::GetRenderWindow1(), QmitkStdMultiWidget::GetRenderWindow2(), QmitkStdMultiWidget::GetRenderWindow3(), and QmitkStdMultiWidget::GetRenderWindow4().

◆ GetRenderWindow() [2/3]

QmitkRenderWindow * QmitkAbstractMultiWidget::GetRenderWindow ( const QString &  widgetName) const
virtual

Reimplemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

Definition at line 242 of file QmitkAbstractMultiWidget.cpp.

References GetRenderWindowWidget().

◆ GetRenderWindow() [3/3]

virtual QmitkRenderWindow* QmitkAbstractMultiWidget::GetRenderWindow ( const ViewDirection &  viewDirection) const
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

◆ GetRenderWindows()

QmitkAbstractMultiWidget::RenderWindowHash QmitkAbstractMultiWidget::GetRenderWindows ( ) const

Definition at line 224 of file QmitkAbstractMultiWidget.cpp.

References GetRenderWindowWidgets().

Referenced by QmitkMultiWidgetLayoutManager::RemoveOneLayout(), QmitkMultiWidgetLayoutManager::SetAll2DLeft3DRightLayout(), QmitkMultiWidgetLayoutManager::SetAll2DTop3DBottomLayout(), QmitkMultiWidgetLayoutManager::SetAllHorizontalLayout(), QmitkMultiWidgetLayoutManager::SetAllVerticalLayout(), QmitkMultiWidgetLayoutManager::SetDefaultLayout(), QmitkMultiWidgetLayoutManager::SetOneBigLayout(), QmitkMultiWidgetLayoutManager::SetOneLeft3DRightLayout(), QmitkMultiWidgetLayoutManager::SetOneTop3DBottomLayout(), QmitkMultiWidgetLayoutManager::SetOnly2DHorizontalLayout(), and QmitkMultiWidgetLayoutManager::SetOnly2DVerticalLayout().

◆ GetRenderWindowWidget() [1/3]

QmitkAbstractMultiWidget::RenderWindowWidgetPointer QmitkAbstractMultiWidget::GetRenderWindowWidget ( int  row,
int  column
) const

Definition at line 194 of file QmitkAbstractMultiWidget.cpp.

References GetNameFromIndex().

Referenced by ForceImmediateUpdate(), QmitkMultiWidgetDecorationManager::GetCornerAnnotationText(), QmitkMultiWidgetDecorationManager::GetDecorationColor(), QmitkMultiWidgetDecorationManager::GetGradientBackgroundColors(), GetRenderWindow(), QmitkMultiWidgetDecorationManager::IsColoredRectangleVisible(), QmitkMultiWidgetDecorationManager::IsCornerAnnotationVisible(), QmitkMultiWidgetDecorationManager::IsGradientBackgroundOn(), QmitkMxNMultiWidget::mousePressEvent(), QmitkStdMultiWidget::mousePressEvent(), RequestUpdate(), QmitkMultiWidgetDecorationManager::SetCornerAnnotationText(), QmitkMultiWidgetDecorationManager::SetDecorationColor(), QmitkMultiWidgetLayoutManager::SetDefaultLayout(), QmitkMultiWidgetDecorationManager::SetGradientBackgroundColors(), QmitkMultiWidgetLayoutManager::SetLayoutDesign(), QmitkMxNMultiWidget::SetSelectedPosition(), QmitkMultiWidgetDecorationManager::ShowColoredRectangle(), QmitkMultiWidgetDecorationManager::ShowCornerAnnotation(), and QmitkMultiWidgetDecorationManager::ShowGradientBackground().

◆ GetRenderWindowWidget() [2/3]

QmitkAbstractMultiWidget::RenderWindowWidgetPointer QmitkAbstractMultiWidget::GetRenderWindowWidget ( const QString &  widgetName) const

Definition at line 199 of file QmitkAbstractMultiWidget.cpp.

◆ GetRenderWindowWidget() [3/3]

QmitkAbstractMultiWidget::RenderWindowWidgetPointer QmitkAbstractMultiWidget::GetRenderWindowWidget ( const QmitkRenderWindow *  renderWindow) const

Definition at line 210 of file QmitkAbstractMultiWidget.cpp.

References GetRenderWindowWidgets().

◆ GetRenderWindowWidgets()

QmitkAbstractMultiWidget::RenderWindowWidgetMap QmitkAbstractMultiWidget::GetRenderWindowWidgets ( ) const

Definition at line 155 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMultiWidgetDecorationManager::AreAllColoredRectanglesVisible(), QmitkMultiWidgetDecorationManager::AreAllCornerAnnotationsVisible(), QmitkMultiWidgetDecorationManager::AreAllGradientBackgroundsOn(), Get2DRenderWindowWidgets(), Get3DRenderWindowWidgets(), GetRenderWindows(), GetRenderWindowWidget(), QmitkMxNMultiWidget::moveEvent(), RemoveRenderWindowWidget(), QmitkMultiWidgetDecorationManager::SetAllDecorationColors(), QmitkMultiWidgetDecorationManager::SetAllGradientBackgroundColors(), QmitkMultiWidgetLayoutManager::SetAllHorizontalLayout(), QmitkMultiWidgetLayoutManager::SetAllVerticalLayout(), QmitkMxNMultiWidget::SetCrosshairVisibility(), QmitkMultiWidgetDecorationManager::ShowAllColoredRectangles(), QmitkMultiWidgetDecorationManager::ShowAllCornerAnnotations(), QmitkMultiWidgetDecorationManager::ShowAllGradientBackgrounds(), and QmitkStdMultiWidgetEditor::ShowLevelWindowWidget().

◆ GetRowCount()

int QmitkAbstractMultiWidget::GetRowCount ( ) const

Definition at line 106 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkMxNMultiWidget::moveEvent(), and QmitkMultiWidgetLayoutManager::SetDefaultLayout().

◆ GetSelectedPosition()

virtual const mitk::Point3D QmitkAbstractMultiWidget::GetSelectedPosition ( const QString &  widgetName) const
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

◆ InitializeMultiWidget()

virtual void QmitkAbstractMultiWidget::InitializeMultiWidget ( )
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

◆ IsMenuWidgetEnabled()

bool QmitkAbstractMultiWidget::IsMenuWidgetEnabled ( ) const
virtual

Definition at line 356 of file QmitkAbstractMultiWidget.cpp.

◆ MultiWidgetClosed()

virtual void QmitkAbstractMultiWidget::MultiWidgetClosed ( )
inlinevirtual

Reimplemented in QmitkMxNMultiWidget.

Definition at line 72 of file QmitkAbstractMultiWidget.h.

◆ MultiWidgetOpened()

virtual void QmitkAbstractMultiWidget::MultiWidgetOpened ( )
inlinevirtual

Reimplemented in QmitkMxNMultiWidget.

Definition at line 71 of file QmitkAbstractMultiWidget.h.

◆ RemoveRenderWindowWidget()

void QmitkAbstractMultiWidget::RemoveRenderWindowWidget ( )
protectedvirtual

Definition at line 371 of file QmitkAbstractMultiWidget.cpp.

References GetNameFromIndex(), and GetRenderWindowWidgets().

Referenced by QmitkMxNMultiWidget::moveEvent().

◆ RequestUpdate()

void QmitkAbstractMultiWidget::RequestUpdate ( const QString &  widgetName)

Definition at line 313 of file QmitkAbstractMultiWidget.cpp.

References GetRenderWindowWidget().

◆ RequestUpdateAll()

void QmitkAbstractMultiWidget::RequestUpdateAll ( )

Definition at line 322 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkStdMultiWidget::SetCrosshairVisibility(), and QmitkStdMultiWidget::SetSelectedPosition().

◆ ResetCrosshair()

virtual void QmitkAbstractMultiWidget::ResetCrosshair ( )
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

Referenced by QmitkMxNMultiWidget::GetCrosshairVisibility().

◆ SetActiveRenderWindowWidget()

void QmitkAbstractMultiWidget::SetActiveRenderWindowWidget ( RenderWindowWidgetPointer  activeRenderWindowWidget)
virtual

Reimplemented in QmitkMxNMultiWidget.

Definition at line 253 of file QmitkAbstractMultiWidget.cpp.

References ActiveRenderWindowChanged().

Referenced by QmitkStdMultiWidget::mousePressEvent(), QmitkMxNMultiWidget::SetActiveRenderWindowWidget(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ SetCrosshairVisibility()

virtual void QmitkAbstractMultiWidget::SetCrosshairVisibility ( bool  visible)
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

◆ SetDataStorage()

void QmitkAbstractMultiWidget::SetDataStorage ( mitk::DataStorage *  dataStorage)
virtual
Examples:
Step8.cpp.

Definition at line 96 of file QmitkAbstractMultiWidget.cpp.

Referenced by Step8::SetupWidgets().

◆ SetDisplayActionEventHandler()

void QmitkAbstractMultiWidget::SetDisplayActionEventHandler ( std::unique_ptr< mitk::DisplayActionEventHandler >  displayActionEventHandler)

Definition at line 144 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkStdMultiWidget::InitializeMultiWidget(), QmitkMxNMultiWidget::InitializeMultiWidget(), and QmitkMxNMultiWidget::Synchronize().

◆ SetInteractionScheme()

void QmitkAbstractMultiWidget::SetInteractionScheme ( mitk::InteractionSchemeSwitcher::InteractionScheme  scheme)
virtual

Definition at line 123 of file QmitkAbstractMultiWidget.cpp.

References GetInteractionEventHandler(), and mitk::InteractionSchemeSwitcher::New().

Referenced by QmitkStdMultiWidget::SetWidgetPlaneMode(), and QmitkMxNMultiWidget::SetWidgetPlaneMode().

◆ SetLayout()

void QmitkAbstractMultiWidget::SetLayout ( int  row,
int  column
)
virtual

Definition at line 116 of file QmitkAbstractMultiWidget.cpp.

Referenced by QmitkStdMultiWidget::InitializeMultiWidget(), and QmitkMxNMultiWidget::InitializeMultiWidget().

◆ SetSelectedPosition()

virtual void QmitkAbstractMultiWidget::SetSelectedPosition ( const mitk::Point3D &  newPosition,
const QString &  widgetName
)
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

◆ SetWidgetPlaneMode()

virtual void QmitkAbstractMultiWidget::SetWidgetPlaneMode ( int  mode)
pure virtual

Implemented in QmitkMxNMultiWidget, and QmitkStdMultiWidget.

Referenced by QmitkMxNMultiWidget::GetCrosshairVisibility().

◆ Synchronize()

virtual void QmitkAbstractMultiWidget::Synchronize ( bool  )
inlinevirtual

Reimplemented in QmitkMxNMultiWidget.

Definition at line 81 of file QmitkAbstractMultiWidget.h.

The documentation for this class was generated from the following files:
