mitk::SimpleHistogramCache Class Reference

Cache for SimpleHistogram objects to avoid redundant recomputation. More...

#include <mitkSimpleHistogram.h>

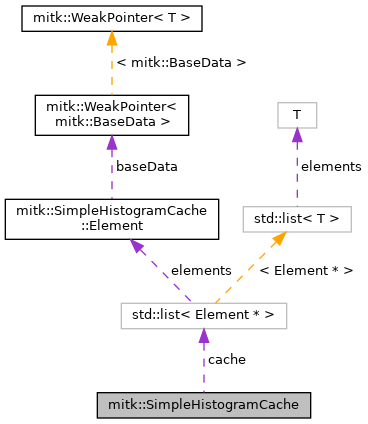

Collaboration diagram for mitk::SimpleHistogramCache:

Classes
class	Element
	Abstract base element stored in the histogram cache. More...

Public Types
typedef std::list< Element * >	CacheContainer

Public Member Functions
	SimpleHistogramCache ()
	~SimpleHistogramCache ()
SimpleHistogram *	operator[] (BaseData::Pointer sp_BaseData)
	Retrieve or compute a histogram for the given BaseData. More...

Public Attributes
CacheContainer	cache
	The list of cached elements. More...

Static Public Attributes
static const unsigned int	maxCacheSize
	Maximum number of cached histogram entries. More...

Protected Member Functions
void	TrimCache (bool full=false)

Detailed Description

Cache for SimpleHistogram objects to avoid redundant recomputation.

Maintains a list of histogram elements associated with BaseData objects. When a histogram for a particular BaseData is requested, the cache checks whether an up-to-date histogram already exists. The cache has a maximum size of 64 entries and trims oldest entries when full.

See also

SimpleHistogram

Definition at line 147 of file mitkSimpleHistogram.h.

Member Typedef Documentation

CacheContainer

typedef std::list<Element *> mitk::SimpleHistogramCache::CacheContainer

Definition at line 180 of file mitkSimpleHistogram.h.

Constructor & Destructor Documentation

SimpleHistogramCache()

mitk::SimpleHistogramCache::SimpleHistogramCache ( )

inline

Definition at line 184 of file mitkSimpleHistogram.h.

~SimpleHistogramCache()

mitk::SimpleHistogramCache::~SimpleHistogramCache ( )

inline

Definition at line 185 of file mitkSimpleHistogram.h.

Member Function Documentation

operator[]()

SimpleHistogram* mitk::SimpleHistogramCache::operator[]

(

BaseData::Pointer

sp_BaseData

)

Retrieve or compute a histogram for the given BaseData.

Parameters

[in]

sp_BaseData

Smart pointer to the BaseData.

Returns

Pointer to the cached or newly computed SimpleHistogram.

TrimCache()

void mitk::SimpleHistogramCache::TrimCache ( bool  full = false )

inlineprotected

Definition at line 195 of file mitkSimpleHistogram.h.

Member Data Documentation

cache

CacheContainer mitk::SimpleHistogramCache::cache

The list of cached elements.

Definition at line 182 of file mitkSimpleHistogram.h.

maxCacheSize

const unsigned int mitk::SimpleHistogramCache::maxCacheSize

static

Maximum number of cached histogram entries.

Definition at line 151 of file mitkSimpleHistogram.h.

---

The documentation for this class was generated from the following file:

• mitkSimpleHistogram.h
