mitk::SegGroupModifyUndoRedoHelper Class Reference

RAII helper that captures the state of segmentation groups for undo/redo support. More...

#include <mitkSegChangeOperationApplier.h>

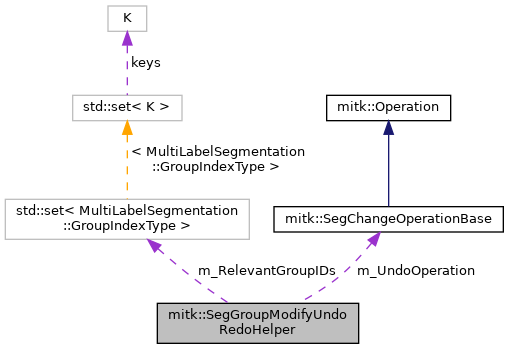

Collaboration diagram for mitk::SegGroupModifyUndoRedoHelper:

Public Types
using	GroupIndexSetType = std::set< MultiLabelSegmentation::GroupIndexType >

Public Member Functions
	SegGroupModifyUndoRedoHelper (MultiLabelSegmentation *segmentation, const GroupIndexSetType &relevantGroupIDs, bool coverAllTimeSteps, TimeStepType timeStep=0, bool noLabels=false, bool noGroupImages=false, bool noNames=false)
	Capture the current state of the given groups as the undo operation. More...
	~SegGroupModifyUndoRedoHelper ()
void	RegisterUndoRedoOperationEvent (const std::string &description)
	Capture the current (modified) state as the redo operation and register the undo/redo pair. More...

Protected Attributes
MultiLabelSegmentation::Pointer	m_Segmentation
GroupIndexSetType	m_RelevantGroupIDs
bool	m_CoverAllTimeSteps
TimeStepType	m_TimeStep
bool	m_NoLabels
bool	m_NoGroupImages
bool	m_NoNames
SegChangeOperationBase *	m_UndoOperation

Detailed Description

RAII helper that captures the state of segmentation groups for undo/redo support.

On construction, a snapshot of the specified groups is taken (the undo operation). After the modification is performed, call RegisterUndoRedoOperationEvent() to capture the redo state and register both operations on the undo stack.

See also

SegGroupModifyOperation

SegChangeOperationApplier

Definition at line 67 of file mitkSegChangeOperationApplier.h.

Member Typedef Documentation

GroupIndexSetType

using mitk::SegGroupModifyUndoRedoHelper::GroupIndexSetType = std::set<MultiLabelSegmentation::GroupIndexType>

Definition at line 71 of file mitkSegChangeOperationApplier.h.

Constructor & Destructor Documentation

SegGroupModifyUndoRedoHelper()

mitk::SegGroupModifyUndoRedoHelper::SegGroupModifyUndoRedoHelper	(	MultiLabelSegmentation *	segmentation,
		const GroupIndexSetType &	relevantGroupIDs,
		bool	coverAllTimeSteps,
		TimeStepType	timeStep = 0,
		bool	noLabels = false,
		bool	noGroupImages = false,
		bool	noNames = false
	)

Capture the current state of the given groups as the undo operation.

Parameters

segmentation	The segmentation to operate on.
relevantGroupIDs	The group indices to capture.
coverAllTimeSteps	If true, all time steps are captured; otherwise only the specified one.
timeStep	The time step to capture (only used if coverAllTimeSteps is false).
noLabels	If true, label information is not captured.
noGroupImages	If true, group image data is not captured.
noNames	If true, group names are not captured.

~SegGroupModifyUndoRedoHelper()

mitk::SegGroupModifyUndoRedoHelper::~SegGroupModifyUndoRedoHelper

(

)

Member Function Documentation

RegisterUndoRedoOperationEvent()

void mitk::SegGroupModifyUndoRedoHelper::RegisterUndoRedoOperationEvent

(

const std::string &

description

)

Capture the current (modified) state as the redo operation and register the undo/redo pair.

Parameters

description

A human-readable description of the operation for the undo stack.

Member Data Documentation

m_CoverAllTimeSteps

bool mitk::SegGroupModifyUndoRedoHelper::m_CoverAllTimeSteps

protected

Definition at line 96 of file mitkSegChangeOperationApplier.h.

m_NoGroupImages

bool mitk::SegGroupModifyUndoRedoHelper::m_NoGroupImages

protected

Definition at line 99 of file mitkSegChangeOperationApplier.h.

m_NoLabels

bool mitk::SegGroupModifyUndoRedoHelper::m_NoLabels

protected

Definition at line 98 of file mitkSegChangeOperationApplier.h.

m_NoNames

bool mitk::SegGroupModifyUndoRedoHelper::m_NoNames

protected

Definition at line 100 of file mitkSegChangeOperationApplier.h.

m_RelevantGroupIDs

GroupIndexSetType mitk::SegGroupModifyUndoRedoHelper::m_RelevantGroupIDs

protected

Definition at line 95 of file mitkSegChangeOperationApplier.h.

m_Segmentation

MultiLabelSegmentation::Pointer mitk::SegGroupModifyUndoRedoHelper::m_Segmentation

protected

Definition at line 94 of file mitkSegChangeOperationApplier.h.

m_TimeStep

TimeStepType mitk::SegGroupModifyUndoRedoHelper::m_TimeStep

protected

Definition at line 97 of file mitkSegChangeOperationApplier.h.

m_UndoOperation

SegChangeOperationBase* mitk::SegGroupModifyUndoRedoHelper::m_UndoOperation

protected

Definition at line 102 of file mitkSegChangeOperationApplier.h.

---

The documentation for this class was generated from the following file:

• mitkSegChangeOperationApplier.h
