Strategy that computes the variant-specific scale numerator used by the SUV scale factor. More...

#include <mitkSUVNormalizationStrategy.h>

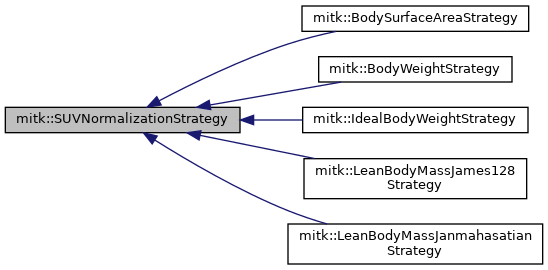

Inheritance diagram for mitk::SUVNormalizationStrategy:

[legend]

Public Member Functions
virtual	~SUVNormalizationStrategy ()=default

virtual double	ComputeScaleNumerator (const SUVNormalizationInputs &inputs) const =0
	Compute the variant-specific scale numerator. More...

virtual SUVVariant	Variant () const =0

Detailed Description

Strategy that computes the variant-specific scale numerator used by the SUV scale factor.

The kernel formula (see computeSUVScaleFactor) is variant-agnostic:

factor = scaleNumerator / (injectedActivity * 2^(-decayTime / halfLife))

Each variant supplies a different scaleNumerator with a different unit; the resulting SUV inherits those units multiplied by the inverse of the input PET unit.

See also: SUVVariant, SUVNormalizationInputs, computeSUVScaleFactor, SUVFunctorPolicy

Definition at line 129 of file mitkSUVNormalizationStrategy.h.

Constructor & Destructor Documentation

◆ ~SUVNormalizationStrategy()

virtual mitk::SUVNormalizationStrategy::~SUVNormalizationStrategy ( )

virtualdefault

Member Function Documentation

◆ ComputeScaleNumerator()

virtual double mitk::SUVNormalizationStrategy::ComputeScaleNumerator ( const SUVNormalizationInputs & inputs ) const

pure virtual

Compute the variant-specific scale numerator.

Parameters

[in] inputs The patient measurements available to the strategy.

Returns: The scale numerator in the strategy's output unit (see class documentation for the per-variant unit).

Exceptions

MissingSUVInputException if a required field of inputs is missing or non-finite, or if sex is Sex::Other for a sex-specific strategy (Sex::Other must be resolved upstream; see SUVNormalizationInputs).

Implemented in mitk::BodySurfaceAreaStrategy, mitk::IdealBodyWeightStrategy, mitk::LeanBodyMassJames128Strategy, mitk::LeanBodyMassJanmahasatianStrategy, and mitk::BodyWeightStrategy.

◆ Variant()

virtual SUVVariant mitk::SUVNormalizationStrategy::Variant ( ) const
