Class for calculating the difference between two corresponding point sets. The user can access the single distances between corresponding points as well as a complete statistic (mean, sd, rms, median, max, min) The point sets must be of equal size! More...

#include <mitkPointSetDifferenceStatisticsCalculator.h>

Inheritance diagram for mitk::PointSetDifferenceStatisticsCalculator:

[legend]

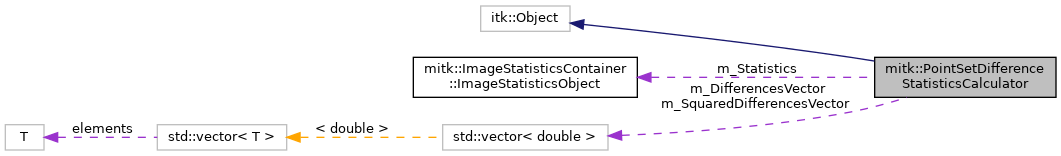

Collaboration diagram for mitk::PointSetDifferenceStatisticsCalculator:

[legend]

Public Member Functions
	mitkClassMacroItkParent (PointSetDifferenceStatisticsCalculator, itk::Object)

Pointer	Clone () const

	mitkNewMacro2Param (PointSetDifferenceStatisticsCalculator, mitk::PointSet::Pointer, mitk::PointSet::Pointer)

void	SetPointSets (mitk::PointSet::Pointer pSet1, mitk::PointSet::Pointer pSet2)
	Set the two point sets to be compared. More...

std::vector< double >	GetDifferences ()
	Get the Euclidean distances between corresponding points. More...

std::vector< double >	GetSquaredDifferences ()
	Get the squared Euclidean distances between corresponding points. More...

double	GetMean ()
	Get the mean distance of all corresponding point pairs. More...

double	GetSD ()
	Get the standard deviation of the distances between all corresponding point pairs. More...

double	GetVariance ()
	Get the variance of the distances between all corresponding point pairs. More...

double	GetRMS ()
	Get the root mean squared distance of all corresponding point pairs. More...

double	GetMedian ()
	Get the median distance of all corresponding point pairs. More...

double	GetMax ()
	Get the maximum distance of all corresponding point pairs. More...

double	GetMin ()
	Get the minimum distance of all corresponding point pairs. More...

double	GetNumberOfPoints ()
	Get the total number of corresponding point pairs. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	PointSetDifferenceStatisticsCalculator ()

	PointSetDifferenceStatisticsCalculator (mitk::PointSet::Pointer, mitk::PointSet::Pointer)

	~PointSetDifferenceStatisticsCalculator () override

void	ComputeStatistics ()
	Compute the complete statistics of the distances between the given point sets. More...

Protected Attributes
mitk::ImageStatisticsContainer::ImageStatisticsObject	m_Statistics
	struct holding the statistics More...

std::vector< double >	m_DifferencesVector
	vector holding the differences between the corresponding points More...

std::vector< double >	m_SquaredDifferencesVector
	vector holding the squared differences between the corresponding points More...

mitk::PointSet::Pointer	m_PointSet1
	first point set used for comparison More...

mitk::PointSet::Pointer	m_PointSet2
	second point set used for comparison More...

bool	m_StatisticsCalculated
	flag indicating whether statistics are already calculated or not. More...

Detailed Description

Class for calculating the difference between two corresponding point sets. The user can access the single distances between corresponding points as well as a complete statistic (mean, sd, rms, median, max, min) The point sets must be of equal size!

Definition at line 30 of file mitkPointSetDifferenceStatisticsCalculator.h.

Constructor & Destructor Documentation

◆ PointSetDifferenceStatisticsCalculator() [1/2]

mitk::PointSetDifferenceStatisticsCalculator::PointSetDifferenceStatisticsCalculator ( )

protected

◆ PointSetDifferenceStatisticsCalculator() [2/2]

mitk::PointSetDifferenceStatisticsCalculator::PointSetDifferenceStatisticsCalculator	(	mitk::PointSet::Pointer	,
		mitk::PointSet::Pointer
	)

protected

◆ ~PointSetDifferenceStatisticsCalculator()

mitk::PointSetDifferenceStatisticsCalculator::~PointSetDifferenceStatisticsCalculator ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::PointSetDifferenceStatisticsCalculator::Clone ( ) const

◆ ComputeStatistics()

void mitk::PointSetDifferenceStatisticsCalculator::ComputeStatistics ( )

protected

Compute the complete statistics of the distances between the given point sets.

◆ GetDifferences()

std::vector<double> mitk::PointSetDifferenceStatisticsCalculator::GetDifferences ( )

Get the Euclidean distances between corresponding points.

Returns: A vector holding the distance for each pair of corresponding points.

◆ GetMax()

double mitk::PointSetDifferenceStatisticsCalculator::GetMax ( )

Get the maximum distance of all corresponding point pairs.

Returns: The maximum distance.

◆ GetMean()

double mitk::PointSetDifferenceStatisticsCalculator::GetMean ( )

Get the mean distance of all corresponding point pairs.

Returns: The mean Euclidean distance.

◆ GetMedian()

double mitk::PointSetDifferenceStatisticsCalculator::GetMedian ( )

Get the median distance of all corresponding point pairs.

Returns: The median distance.

◆ GetMin()

double mitk::PointSetDifferenceStatisticsCalculator::GetMin ( )

Get the minimum distance of all corresponding point pairs.

Returns: The minimum distance.

◆ GetNumberOfPoints()

double mitk::PointSetDifferenceStatisticsCalculator::GetNumberOfPoints ( )

Get the total number of corresponding point pairs.

Returns: The number of points.

◆ GetRMS()

double mitk::PointSetDifferenceStatisticsCalculator::GetRMS ( )

Get the root mean squared distance of all corresponding point pairs.

Returns: The RMS distance.

◆ GetSD()

double mitk::PointSetDifferenceStatisticsCalculator::GetSD ( )

Get the standard deviation of the distances between all corresponding point pairs.

Returns: The standard deviation of distances.

◆ GetSquaredDifferences()

std::vector<double> mitk::PointSetDifferenceStatisticsCalculator::GetSquaredDifferences ( )

Get the squared Euclidean distances between corresponding points.

Returns: A vector holding the squared distance for each pair of corresponding points.

◆ GetVariance()

double mitk::PointSetDifferenceStatisticsCalculator::GetVariance ( )

Get the variance of the distances between all corresponding point pairs.

Returns: The variance of distances.

◆ mitkClassMacroItkParent()

mitk::PointSetDifferenceStatisticsCalculator::mitkClassMacroItkParent	(	PointSetDifferenceStatisticsCalculator	,
		itk::Object
	)

◆ mitkNewMacro2Param()

mitk::PointSetDifferenceStatisticsCalculator::mitkNewMacro2Param	(	PointSetDifferenceStatisticsCalculator	,
		mitk::PointSet::Pointer	,
		mitk::PointSet::Pointer
	)

◆ New()

static Pointer mitk::PointSetDifferenceStatisticsCalculator::New ( )

static

◆ SetPointSets()

void mitk::PointSetDifferenceStatisticsCalculator::SetPointSets	(	mitk::PointSet::Pointer	pSet1,
		mitk::PointSet::Pointer	pSet2
	)

Set the two point sets to be compared.

Parameters

[in]	pSet1	First point set.
[in]	pSet2	Second point set. Must have the same size as pSet1.

Member Data Documentation

◆ m_DifferencesVector

std::vector<double> mitk::PointSetDifferenceStatisticsCalculator::m_DifferencesVector

protected

vector holding the differences between the corresponding points

Definition at line 119 of file mitkPointSetDifferenceStatisticsCalculator.h.

◆ m_PointSet1

mitk::PointSet::Pointer mitk::PointSetDifferenceStatisticsCalculator::m_PointSet1

protected

first point set used for comparison

Definition at line 121 of file mitkPointSetDifferenceStatisticsCalculator.h.

◆ m_PointSet2

mitk::PointSet::Pointer mitk::PointSetDifferenceStatisticsCalculator::m_PointSet2

protected

second point set used for comparison

Definition at line 122 of file mitkPointSetDifferenceStatisticsCalculator.h.

◆ m_SquaredDifferencesVector

std::vector<double> mitk::PointSetDifferenceStatisticsCalculator::m_SquaredDifferencesVector

protected

vector holding the squared differences between the corresponding points

Definition at line 120 of file mitkPointSetDifferenceStatisticsCalculator.h.

◆ m_Statistics

mitk::ImageStatisticsContainer::ImageStatisticsObject mitk::PointSetDifferenceStatisticsCalculator::m_Statistics

protected

struct holding the statistics

Definition at line 118 of file mitkPointSetDifferenceStatisticsCalculator.h.

◆ m_StatisticsCalculated

bool mitk::PointSetDifferenceStatisticsCalculator::m_StatisticsCalculated

protected

flag indicating whether statistics are already calculated or not.

Definition at line 123 of file mitkPointSetDifferenceStatisticsCalculator.h.

The documentation for this class was generated from the following file:

mitkPointSetDifferenceStatisticsCalculator.h
