mitk::PlanarFigureSource Class Reference

Base class for all filters producing a PlanarFigure as output. More...

#include <mitkPlanarFigureSource.h>

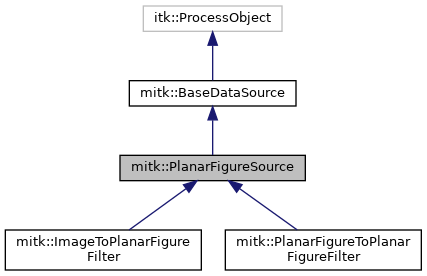

Inheritance diagram for mitk::PlanarFigureSource:

Collaboration diagram for mitk::PlanarFigureSource:

Public Types
typedef mitk::PlanarFigure	OutputType
typedef OutputType::Pointer	OutputTypePointer
typedef itk::DataObject::Pointer	DataObjectPointer
Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...
typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Public Member Functions
	mitkClassMacro (PlanarFigureSource, BaseDataSource)
Pointer	Clone () const
mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Allocate a new output object and return it. More...
itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
void	GenerateInputRequestedRegion () override
Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...
virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...
bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	PlanarFigureSource ()
	~PlanarFigureSource () override
Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...
	~BaseDataSource () override
	Destructor. More...

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Base class for all filters producing a PlanarFigure as output.

Base class for all filters which have an object of type mitk::PlanarFigure as output. PlanarFigureSources do not provide support for streaming, that is, the requested region is always the largest possible region.

Definition at line 32 of file mitkPlanarFigureSource.h.

Member Typedef Documentation

DataObjectPointer

typedef itk::DataObject::Pointer mitk::PlanarFigureSource::DataObjectPointer

Definition at line 41 of file mitkPlanarFigureSource.h.

OutputType

typedef mitk::PlanarFigure mitk::PlanarFigureSource::OutputType

Definition at line 39 of file mitkPlanarFigureSource.h.

OutputTypePointer

typedef OutputType::Pointer mitk::PlanarFigureSource::OutputTypePointer

Definition at line 40 of file mitkPlanarFigureSource.h.

Constructor & Destructor Documentation

PlanarFigureSource()

mitk::PlanarFigureSource::PlanarFigureSource ( )

protected

~PlanarFigureSource()

mitk::PlanarFigureSource::~PlanarFigureSource ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::PlanarFigureSource::Clone

(

)

const

GenerateInputRequestedRegion()

void mitk::PlanarFigureSource::GenerateInputRequestedRegion ( )

override

Generates the input requested region simply by calling the equivalent method of the superclass.

MakeOutput() [1/2]

itk::DataObject::Pointer mitk::PlanarFigureSource::MakeOutput ( const DataObjectIdentifierType &  name )

overridevirtual

This is a default implementation to make sure we have something. Once all the subclasses of ProcessObject provide an appropriate MakeOutput(), then ProcessObject::MakeOutput() can be made pure virtual.

Implements mitk::BaseDataSource.

MakeOutput() [2/2]

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer mitk::PlanarFigureSource::MakeOutput ( DataObjectPointerArraySizeType  idx )

overridevirtual

Allocate a new output object and return it.

Currently the index is not evaluated.

Parameters

[in]

idx

The index of the output for which an object should be created.

Returns

The new output object.

Implements mitk::BaseDataSource.

mitkClassMacro()

mitk::PlanarFigureSource::mitkClassMacro	(	PlanarFigureSource	,
		BaseDataSource
	)

New()

static Pointer mitk::PlanarFigureSource::New ( )

static

---

The documentation for this class was generated from the following file:

• mitkPlanarFigureSource.h
