Base class for Annotation layout managers. More...

#include <mitkAbstractAnnotationRenderer.h>

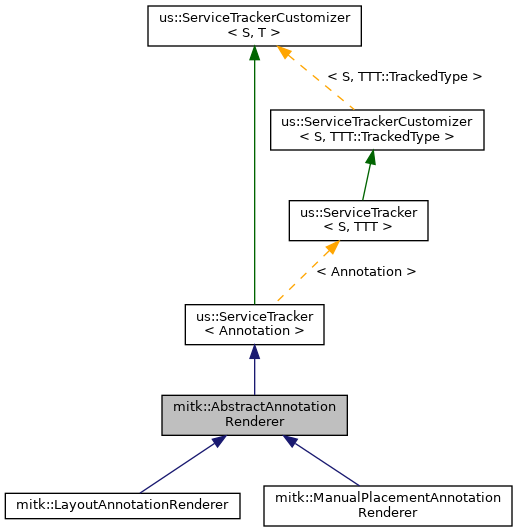

Inheritance diagram for mitk::AbstractAnnotationRenderer:

[legend]

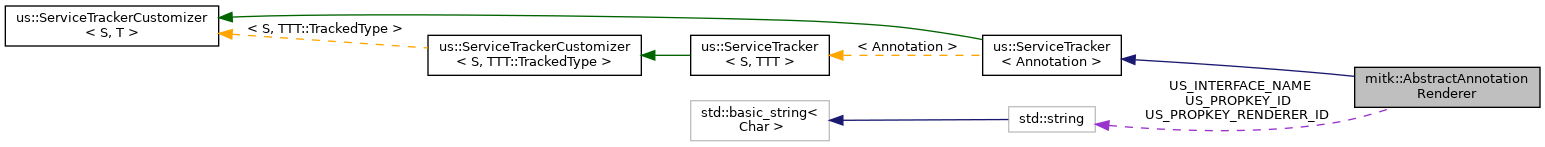

Collaboration diagram for mitk::AbstractAnnotationRenderer:

[legend]

Public Types
typedef us::ServiceTracker< Annotation >	Superclass

Public Types inherited from us::ServiceTracker< Annotation >
typedef Annotation	ServiceType
	The type of the service being tracked. More...

typedef TTT::TrackedType	T
	The type of the tracked object. More...

typedef ServiceReference< Annotation >	ServiceReferenceType
	The service reference type. More...

typedef std::map< ServiceReference< Annotation >, T >	TrackingMap
	A map type from ServiceReference to tracked objects. More...

Public Member Functions
	AbstractAnnotationRenderer (const std::string &rendererID, const std::string &arID)
	Construct an annotation renderer for a specific renderer and annotation renderer ID. More...

	~AbstractAnnotationRenderer () override
	Virtual destructor. More...

const std::string	GetID () const
	Get the unique ID of this annotation renderer. More...

const std::string	GetRendererID () const
	Get the ID of the associated BaseRenderer. More...

void	CurrentBaseRendererChanged ()
	Notify that the current BaseRenderer has changed. More...

virtual void	OnRenderWindowModified ()
	Called when the render window is modified. Override to react to changes. More...

void	RemoveAllAnnotation ()
	Remove all tracked Annotation objects from the associated renderer. More...

void	Update ()
	Update all tracked Annotation objects. More...

Public Member Functions inherited from us::ServiceTracker< Annotation >
	~ServiceTracker () override
	Destructor. More...

	ServiceTracker (ModuleContext context, const ServiceReferenceType &reference, ServiceTrackerCustomizer< Annotation, T > customizer=nullptr)
	Create a `ServiceTracker` on the specified `ServiceReference`. More...

	ServiceTracker (ModuleContext context, const std::string &clazz, ServiceTrackerCustomizer< Annotation, T > customizer=0)
	Create a `ServiceTracker` on the specified class name. More...

	ServiceTracker (ModuleContext context, const LDAPFilter &filter, ServiceTrackerCustomizer< Annotation, T > customizer=nullptr)
	Create a `ServiceTracker` on the specified `LDAPFilter` object. More...

	ServiceTracker (ModuleContext context, ServiceTrackerCustomizer< Annotation, T > customizer=nullptr)
	Create a `ServiceTracker` on the class template argument S. More...

virtual void	Open ()
	Open this `ServiceTracker` and begin tracking services. More...

virtual void	Close ()
	Close this `ServiceTracker`. More...

virtual T	WaitForService (unsigned long timeoutMillis=0)
	Wait for at least one service to be tracked by this `ServiceTracker`. This method will also return when this `ServiceTracker` is closed. More...

virtual std::vector< ServiceReferenceType >	GetServiceReferences () const
	Return a list of `ServiceReference`s for all services being tracked by this `ServiceTracker`. More...

virtual ServiceReferenceType	GetServiceReference () const
	Returns a `ServiceReference` for one of the services being tracked by this `ServiceTracker`. More...

virtual T	GetService (const ServiceReferenceType &reference) const
	Returns the service object for the specified `ServiceReference` if the specified referenced service is being tracked by this `ServiceTracker`. More...

virtual T	GetService () const
	Returns a service object for one of the services being tracked by this `ServiceTracker`. More...

virtual std::vector< T >	GetServices () const
	Return a list of service objects for all services being tracked by this `ServiceTracker`. More...

virtual void	Remove (const ServiceReferenceType &reference)
	Remove a service from this `ServiceTracker`. More...

virtual int	Size () const
	Return the number of services being tracked by this `ServiceTracker`. More...

virtual int	GetTrackingCount () const
	Returns the tracking count for this `ServiceTracker`. More...

virtual void	GetTracked (TrackingMap &tracked) const
	Return a sorted map of the `ServiceReference`s and service objects for all services being tracked by this `ServiceTracker`. The map is sorted in natural order of `ServiceReference`. That is, the last entry is the service with the highest ranking and the lowest service id. More...

virtual bool	IsEmpty () const
	Return if this `ServiceTracker` is empty. More...

Static Public Attributes
static const std::string	US_INTERFACE_NAME
	Micro service interface name. More...

static const std::string	US_PROPKEY_ID
	Service property key for the annotation renderer ID. More...

static const std::string	US_PROPKEY_RENDERER_ID
	Service property key for the renderer ID. More...

Protected Member Functions
BaseRenderer *	GetCurrentBaseRenderer ()
	Get the BaseRenderer associated with this annotation renderer. More...

Protected Member Functions inherited from us::ServiceTracker< Annotation >
T	AddingService (const ServiceReferenceType &reference) override
	Default implementation of the `ServiceTrackerCustomizer::AddingService` method. More...

void	ModifiedService (const ServiceReferenceType &reference, T service) override
	Default implementation of the `ServiceTrackerCustomizer::ModifiedService` method. More...

void	RemovedService (const ServiceReferenceType &reference, T service) override
	Default implementation of the `ServiceTrackerCustomizer::RemovedService` method. More...

Protected Member Functions inherited from us::ServiceTrackerCustomizer< S, T >
virtual	~ServiceTrackerCustomizer ()
	Destructor. More...

virtual void	ModifiedService (const ServiceReferenceType &reference, TrackedType service)=0
	A service tracked by the `ServiceTracker` has been modified. More...

virtual void	RemovedService (const ServiceReferenceType &reference, TrackedType service)=0
	A service tracked by the `ServiceTracker` has been removed. More...

Additional Inherited Members
Protected Types inherited from us::ServiceTrackerCustomizer< S, T >
typedef S	ServiceType
	The service type being tracked. More...

typedef T	TrackedType
	The tracked object type. More...

typedef ServiceReference< ServiceType >	ServiceReferenceType
	The service reference type for the tracked service. More...

Detailed Description

Base class for Annotation layout managers.

An AbstractAnnotationRenderer can be implemented to control a set of Annotation objects by means of position and size within a specific BaseRenderer. It tracks Annotation micro services and manages their lifecycle.

See also: Annotation; BaseRenderer

Definition at line 37 of file mitkAbstractAnnotationRenderer.h.

Member Typedef Documentation

◆ Superclass

typedef us::ServiceTracker<Annotation> mitk::AbstractAnnotationRenderer::Superclass

Definition at line 40 of file mitkAbstractAnnotationRenderer.h.

Constructor & Destructor Documentation

◆ AbstractAnnotationRenderer()

mitk::AbstractAnnotationRenderer::AbstractAnnotationRenderer	(	const std::string &	rendererID,
		const std::string &	arID
	)

Construct an annotation renderer for a specific renderer and annotation renderer ID.

Parameters

[in]	rendererID	The ID of the BaseRenderer this annotation renderer is associated with.
[in]	arID	The unique ID for this annotation renderer.

◆ ~AbstractAnnotationRenderer()

mitk::AbstractAnnotationRenderer::~AbstractAnnotationRenderer ( )

override

Virtual destructor.

Member Function Documentation

◆ CurrentBaseRendererChanged()

void mitk::AbstractAnnotationRenderer::CurrentBaseRendererChanged ( )

Notify that the current BaseRenderer has changed.

◆ GetCurrentBaseRenderer()

BaseRenderer* mitk::AbstractAnnotationRenderer::GetCurrentBaseRenderer ( )

protected

Get the BaseRenderer associated with this annotation renderer.

Returns: Pointer to the current BaseRenderer.

◆ GetID()

const std::string mitk::AbstractAnnotationRenderer::GetID ( ) const

Get the unique ID of this annotation renderer.

Returns: The annotation renderer ID.

◆ GetRendererID()

const std::string mitk::AbstractAnnotationRenderer::GetRendererID ( ) const

Get the ID of the associated BaseRenderer.

Returns: The renderer ID string.

◆ OnRenderWindowModified()

virtual void mitk::AbstractAnnotationRenderer::OnRenderWindowModified ( )

inlinevirtual

Called when the render window is modified. Override to react to changes.

Reimplemented in mitk::LayoutAnnotationRenderer.

Definition at line 69 of file mitkAbstractAnnotationRenderer.h.

◆ RemoveAllAnnotation()

void mitk::AbstractAnnotationRenderer::RemoveAllAnnotation ( )

Remove all tracked Annotation objects from the associated renderer.

◆ Update()

void mitk::AbstractAnnotationRenderer::Update ( )

Update all tracked Annotation objects.

Member Data Documentation

◆ US_INTERFACE_NAME

const std::string mitk::AbstractAnnotationRenderer::US_INTERFACE_NAME

static

Micro service interface name.

Definition at line 77 of file mitkAbstractAnnotationRenderer.h.

◆ US_PROPKEY_ID

const std::string mitk::AbstractAnnotationRenderer::US_PROPKEY_ID

static

Service property key for the annotation renderer ID.

Definition at line 78 of file mitkAbstractAnnotationRenderer.h.

◆ US_PROPKEY_RENDERER_ID

const std::string mitk::AbstractAnnotationRenderer::US_PROPKEY_RENDERER_ID

static

Service property key for the renderer ID.

Definition at line 79 of file mitkAbstractAnnotationRenderer.h.

The documentation for this class was generated from the following file:

mitkAbstractAnnotationRenderer.h
