A QLineEdit that edits a mitk::StringProperty. More...

#include <QmitkStringPropertyEditor.h>

Inheritance diagram for QmitkStringPropertyEditor:

[legend]

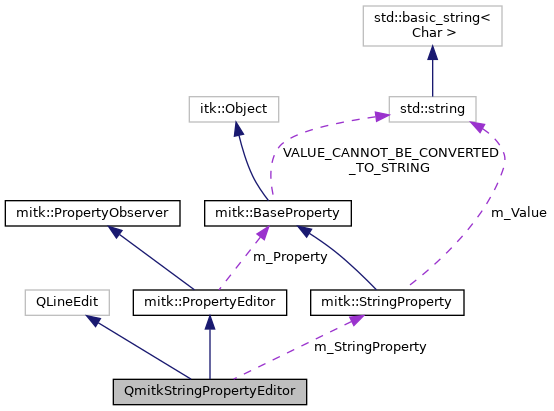

Collaboration diagram for QmitkStringPropertyEditor:

[legend]

Public Member Functions
	QmitkStringPropertyEditor (mitk::StringProperty property, QWidget parent)
	Construct an editor for the given string property. More...

	~QmitkStringPropertyEditor () override
	Destructor. More...

Public Member Functions inherited from mitk::PropertyEditor
	PropertyEditor (mitk::BaseProperty *property)
	Constructor. Begins observing the given property. More...

	~PropertyEditor () override
	Destructor. Removes the ITK observer from the property. More...

void	OnModified (const itk::EventObject &e)
	Callback for itk::ModifiedEvent on the observed property. More...

void	OnDelete (const itk::EventObject &e)
	Callback for itk::DeleteEvent on the observed property. More...

Public Member Functions inherited from mitk::PropertyObserver
	PropertyObserver ()
	Constructor. More...

virtual	~PropertyObserver ()
	Virtual destructor. More...

Protected Slots
void	onTextChanged (const QString &)

Protected Member Functions
void	PropertyChanged () override
	Called when the observed property value has changed. More...

void	PropertyRemoved () override
	Called when the observed property is about to be deleted. More...

Protected Member Functions inherited from mitk::PropertyObserver
void	BeginModifyProperty ()
	Marks the beginning of a self-initiated property modification. More...

void	EndModifyProperty ()
	Marks the end of a self-initiated property modification. More...

Protected Attributes
mitk::StringProperty *	m_StringProperty

Protected Attributes inherited from mitk::PropertyEditor
mitk::BaseProperty *	m_Property
	The observed property (read-write). More...

Protected Attributes inherited from mitk::PropertyObserver
unsigned long	m_ModifiedTag
	ITK observer tag for the ModifiedEvent. More...

unsigned long	m_DeleteTag
	ITK observer tag for the DeleteEvent. More...

bool	m_SelfCall
	Guard flag to prevent re-entrant notification. More...

Detailed Description

A QLineEdit that edits a mitk::StringProperty.

Bidirectionally synchronizes the line edit text with a mitk::StringProperty. When the user types, the property is updated. When the property changes externally, the text is updated. If the property is removed, "n/a" is displayed.

See also: QmitkStringPropertyView, QmitkStringPropertyOnDemandEdit, QmitkPropertyViewFactory

Definition at line 29 of file QmitkStringPropertyEditor.h.

Constructor & Destructor Documentation

◆ QmitkStringPropertyEditor()

QmitkStringPropertyEditor::QmitkStringPropertyEditor	(	mitk::StringProperty *	property,
		QWidget *	parent
	)

Construct an editor for the given string property.

Parameters

[in]	property	The mitk::StringProperty to edit.
[in]	parent	The parent widget.

◆ ~QmitkStringPropertyEditor()

QmitkStringPropertyEditor::~QmitkStringPropertyEditor ( )

override

Destructor.

Member Function Documentation

◆ onTextChanged

void QmitkStringPropertyEditor::onTextChanged ( const QString & )

protectedslot

◆ PropertyChanged()

void QmitkStringPropertyEditor::PropertyChanged ( )

overrideprotectedvirtual

Called when the observed property value has changed.

Implements mitk::PropertyObserver.

◆ PropertyRemoved()

void QmitkStringPropertyEditor::PropertyRemoved ( )

overrideprotectedvirtual

Called when the observed property is about to be deleted.

Implements mitk::PropertyObserver.

Member Data Documentation

◆ m_StringProperty

mitk::StringProperty* QmitkStringPropertyEditor::m_StringProperty

protected

Definition at line 48 of file QmitkStringPropertyEditor.h.

The documentation for this class was generated from the following file:

QmitkStringPropertyEditor.h
