Widget that behaves like a QLabel and displays selected labels of a segmentation with name and color. More...

#include <QmitkMultiLabelSelectionLabel.h>

Inheritance diagram for QmitkMultiLabelSelectionLabel:

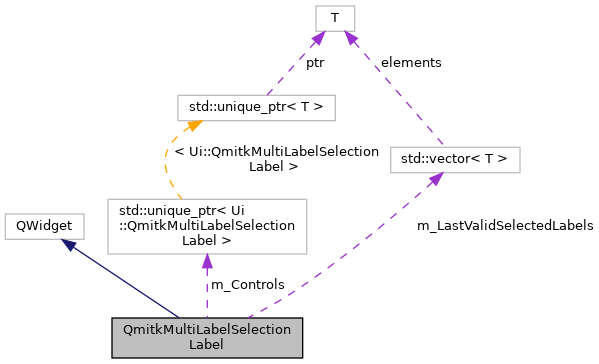

Collaboration diagram for QmitkMultiLabelSelectionLabel:

[legend]

Public Types
using	LabelValueType = mitk::MultiLabelSegmentation::LabelValueType

using	LabelValueVectorType = mitk::MultiLabelSegmentation::LabelValueVectorType

Public Slots
void	SetSelectedLabels (const LabelValueVectorType &selectedLabels)
	Transform a list of label values into the new selection of the inspector. More...

void	SetSelectedLabel (mitk::MultiLabelSegmentation::LabelValueType selectedLabel)
	The passed label will be used as new selection in the widget. More...

void	SetMultiLabelSegmentation (mitk::MultiLabelSegmentation *segmentation)
	Sets the segmentation that will be used and monitored by the widget. More...

void	SetMultiLabelNode (mitk::DataNode *node)
	Sets the segmentation node that will be used /monitored by the widget. More...

void	SetHighlightingActivated (bool visiblityMod)

void	SetEmptyInfo (QString info)

Signals
void	CurrentSelectionChanged (LabelValueVectorType labels) const
	A signal that will be emitted if the selected labels change. More...

Public Member Functions
	QmitkMultiLabelSelectionLabel (QWidget *parent=nullptr)
	Constructs the multi-label selection label widget. More...

	~QmitkMultiLabelSelectionLabel ()

bool	GetHighlightingActivated () const
	Returns whether label highlighting in render windows is activated. More...

mitk::MultiLabelSegmentation *	GetMultiLabelSegmentation () const
	Returns the currently set segmentation. More...

mitk::DataNode *	GetMultiLabelNode () const
	Returns the segmentation data node. More...

QString	GetEmptyInfo () const
	Returns the info text displayed when no label is selected. More...

LabelValueVectorType	GetSelectedLabels () const
	Retrieve the currently selected labels (equals the last CurrentSelectionChanged values). More...

Protected Member Functions
void	Initialize ()

void	UpdateWidget ()

Protected Attributes
mitk::MultiLabelSegmentation::Pointer	m_Segmentation

LabelValueVectorType	m_LastValidSelectedLabels

std::unique_ptr< Ui::QmitkMultiLabelSelectionLabel >	m_Controls

Detailed Description

Widget that behaves like a QLabel and displays selected labels of a segmentation with name and color.

Also allows label highlighting in render windows if the node is set and the mouse hovers over the widget.

Definition at line 35 of file QmitkMultiLabelSelectionLabel.h.

Member Typedef Documentation

◆ LabelValueType

using QmitkMultiLabelSelectionLabel::LabelValueType = mitk::MultiLabelSegmentation::LabelValueType

Definition at line 53 of file QmitkMultiLabelSelectionLabel.h.

◆ LabelValueVectorType

using QmitkMultiLabelSelectionLabel::LabelValueVectorType = mitk::MultiLabelSegmentation::LabelValueVectorType

Definition at line 54 of file QmitkMultiLabelSelectionLabel.h.

Constructor & Destructor Documentation

◆ QmitkMultiLabelSelectionLabel()

QmitkMultiLabelSelectionLabel::QmitkMultiLabelSelectionLabel ( QWidget * parent = nullptr )

Constructs the multi-label selection label widget.

◆ ~QmitkMultiLabelSelectionLabel()

QmitkMultiLabelSelectionLabel::~QmitkMultiLabelSelectionLabel ( )

Member Function Documentation

◆ CurrentSelectionChanged

void QmitkMultiLabelSelectionLabel::CurrentSelectionChanged ( LabelValueVectorType labels ) const

signal

A signal that will be emitted if the selected labels change.

Parameters

labels A list of label values that are now selected.

◆ GetEmptyInfo()

QString QmitkMultiLabelSelectionLabel::GetEmptyInfo ( ) const

Returns the info text displayed when no label is selected.

◆ GetHighlightingActivated()

bool QmitkMultiLabelSelectionLabel::GetHighlightingActivated ( ) const

Returns whether label highlighting in render windows is activated.

◆ GetMultiLabelNode()

mitk::DataNode* QmitkMultiLabelSelectionLabel::GetMultiLabelNode ( ) const

Returns the segmentation data node.

◆ GetMultiLabelSegmentation()

mitk::MultiLabelSegmentation* QmitkMultiLabelSelectionLabel::GetMultiLabelSegmentation ( ) const

Returns the currently set segmentation.

◆ GetSelectedLabels()

LabelValueVectorType QmitkMultiLabelSelectionLabel::GetSelectedLabels ( ) const

Retrieve the currently selected labels (equals the last CurrentSelectionChanged values).

◆ Initialize()

void QmitkMultiLabelSelectionLabel::Initialize ( )

protected

◆ SetEmptyInfo

void QmitkMultiLabelSelectionLabel::SetEmptyInfo ( QString info )

slot

Set the info text that should be displayed if no label is selected. The string can contain HTML code, if desired.

◆ SetHighlightingActivated

void QmitkMultiLabelSelectionLabel::SetHighlightingActivated ( bool visiblityMod )

slot

◆ SetMultiLabelNode

void QmitkMultiLabelSelectionLabel::SetMultiLabelNode ( mitk::DataNode * node )

slot

Sets the segmentation node that will be used /monitored by the widget.

Parameters

node	A pointer to the segmentation node.

Remarks: If not set, highlighting in render windows will not work.

◆ SetMultiLabelSegmentation

void QmitkMultiLabelSelectionLabel::SetMultiLabelSegmentation ( mitk::MultiLabelSegmentation * segmentation )

slot

Sets the segmentation that will be used and monitored by the widget.

Parameters

segmentation A pointer to the segmentation to set.

Remarks: You cannot set the segmentation directly if a segmentation node is also set. Reset the node (nullptr) if you want to change to direct segmentation setting.

Precondition: Segmentation node is nullptr.

◆ SetSelectedLabel

void QmitkMultiLabelSelectionLabel::SetSelectedLabel ( mitk::MultiLabelSegmentation::LabelValueType selectedLabel )

slot

The passed label will be used as new selection in the widget.

Parameters

selectedLabel Value of the selected label.

Remarks: Using this method to select labels will not trigger the CurrentSelectionChanged signal. Observers should regard that to avoid signal loops.

◆ SetSelectedLabels

void QmitkMultiLabelSelectionLabel::SetSelectedLabels ( const LabelValueVectorType & selectedLabels )

slot

Transform a list of label values into the new selection of the inspector.

Parameters

selectedLabels A list of selected label values.

Remarks: Using this method to select labels will not trigger the CurrentSelectionChanged signal. Observers should regard that to avoid signal loops.

◆ UpdateWidget()

void QmitkMultiLabelSelectionLabel::UpdateWidget ( )

protected

Member Data Documentation

◆ m_Controls

std::unique_ptr<Ui::QmitkMultiLabelSelectionLabel> QmitkMultiLabelSelectionLabel::m_Controls

protected

Definition at line 118 of file QmitkMultiLabelSelectionLabel.h.

◆ m_LastValidSelectedLabels

LabelValueVectorType QmitkMultiLabelSelectionLabel::m_LastValidSelectedLabels

protected

Definition at line 116 of file QmitkMultiLabelSelectionLabel.h.

◆ m_Segmentation

mitk::MultiLabelSegmentation::Pointer QmitkMultiLabelSelectionLabel::m_Segmentation

protected

Definition at line 114 of file QmitkMultiLabelSelectionLabel.h.

The documentation for this class was generated from the following file:

QmitkMultiLabelSelectionLabel.h
