Widget that allows editing the initial parameter values of a model fit. More...

#include <QmitkInitialValuesManagerWidget.h>

Inheritance diagram for QmitkInitialValuesManagerWidget:

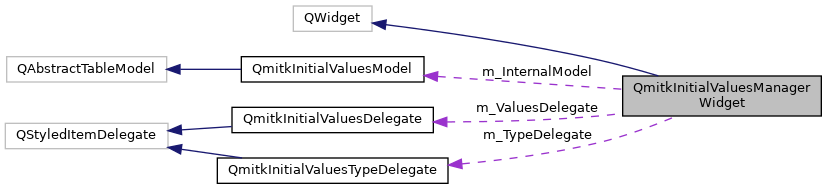

Collaboration diagram for QmitkInitialValuesManagerWidget:

[legend]

Public Slots
void	setInitialValues (const mitk::ModelTraitsInterface::ParameterNamesType &names, const mitk::ModelTraitsInterface::ParametersType values, const mitk::ModelTraitsInterface::ParamterUnitMapType units)
	Sets the parameter names, default values, and units for the model. More...

void	setInitialValues (const mitk::ModelTraitsInterface::ParameterNamesType &names)
	Sets the parameter names with default initial values of zero. More...

void	setDataStorage (mitk::DataStorage *storage)
	Sets the data storage used for image-based initial value selection. More...

void	setReferenceImageGeometry (mitk::BaseGeometry *refgeo)
	Sets the reference image geometry used to filter selectable images. More...

Signals
void	initialValuesChanged ()
	Emitted whenever the initial values are modified by the user or reset programmatically. More...

Public Member Functions
	QmitkInitialValuesManagerWidget (QWidget *parent=nullptr)
	Constructs a QmitkInitialValuesManagerWidget. More...

	~QmitkInitialValuesManagerWidget () override
	Destructor. More...

mitk::ModelTraitsInterface::ParametersType	getInitialValues () const
	Returns the current scalar initial values of the model parameters. More...

mitk::InitialParameterizationDelegateBase::Pointer	getInitialParametrizationDelegate () const
	Creates and returns a parameterization delegate representing the full initial configuration. More...

bool	hasValidInitialValues () const
	Checks whether all initial values are valid. More...

Protected Slots
void	OnModelReset ()

Protected Attributes
std::unique_ptr< Ui::QmitkInitialValuesManagerWidget >	m_Controls

QmitkInitialValuesModel *	m_InternalModel

QmitkInitialValuesTypeDelegate *	m_TypeDelegate

QmitkInitialValuesDelegate *	m_ValuesDelegate

mitk::NodePredicateBase::Pointer	m_NoHiddenOrHelperPredicate

Detailed Description

Widget that allows editing the initial parameter values of a model fit.

This widget provides a table view for configuring the initial values used in model fitting. Each parameter can be initialized either with a scalar value or with an image from the data storage. The widget manages the appropriate delegates for type selection and value editing.

When a reference image geometry is provided, the image selection is filtered to only show 3D images with matching geometry.

See also: QmitkInitialValuesModel; QmitkInitialValuesDelegate; QmitkInitialValuesTypeDelegate

Definition at line 58 of file QmitkInitialValuesManagerWidget.h.

Constructor & Destructor Documentation

◆ QmitkInitialValuesManagerWidget()

QmitkInitialValuesManagerWidget::QmitkInitialValuesManagerWidget ( QWidget * parent = nullptr )

Constructs a QmitkInitialValuesManagerWidget.

Parameters

[in] parent Optional parent widget.

◆ ~QmitkInitialValuesManagerWidget()

QmitkInitialValuesManagerWidget::~QmitkInitialValuesManagerWidget ( )

override

Destructor.

Member Function Documentation

◆ getInitialParametrizationDelegate()

mitk::InitialParameterizationDelegateBase::Pointer QmitkInitialValuesManagerWidget::getInitialParametrizationDelegate ( ) const

Creates and returns a parameterization delegate representing the full initial configuration.

The returned delegate encapsulates both scalar values and image-based parameterizations.

Returns: Smart pointer to an InitialParameterizationDelegateBase instance.

◆ getInitialValues()

mitk::ModelTraitsInterface::ParametersType QmitkInitialValuesManagerWidget::getInitialValues ( ) const

Returns the current scalar initial values of the model parameters.

Returns: The parameter values vector.

Note: This only returns scalar initial values. If an image source was set for a parameter, it is not reflected here. Use getInitialParametrizationDelegate() to retrieve the complete parameterization.

◆ hasValidInitialValues()

bool QmitkInitialValuesManagerWidget::hasValidInitialValues ( ) const

Checks whether all initial values are valid.

Returns false if any image-based parameter has a null data node.

Returns: True if all initial values are valid, false otherwise.

◆ initialValuesChanged

void QmitkInitialValuesManagerWidget::initialValuesChanged ( )

signal

Emitted whenever the initial values are modified by the user or reset programmatically.

◆ OnModelReset

void QmitkInitialValuesManagerWidget::OnModelReset ( )

protectedslot

◆ setDataStorage

void QmitkInitialValuesManagerWidget::setDataStorage ( mitk::DataStorage * storage )

slot

Sets the data storage used for image-based initial value selection.

Also resets any currently selected initial parameter images.

Parameters

[in] storage Pointer to the DataStorage instance.

◆ setInitialValues [1/2]

void QmitkInitialValuesManagerWidget::setInitialValues ( const mitk::ModelTraitsInterface::ParameterNamesType & names )

slot

Sets the parameter names with default initial values of zero.

Parameters

[in] names List of parameter names.

◆ setInitialValues [2/2]

void QmitkInitialValuesManagerWidget::setInitialValues	(	const mitk::ModelTraitsInterface::ParameterNamesType &	names,
		const mitk::ModelTraitsInterface::ParametersType	values,
		const mitk::ModelTraitsInterface::ParamterUnitMapType	units
	)

slot

Sets the parameter names, default values, and units for the model.

Parameters

[in]	names	List of parameter names. The index corresponds to the parameter index in the fitting model.
[in]	values	Default initial values for the parameters.
[in]	units	Map of parameter names to their unit strings.

Precondition: names, values, and units must have the same size.

◆ setReferenceImageGeometry

void QmitkInitialValuesManagerWidget::setReferenceImageGeometry ( mitk::BaseGeometry * refgeo )

slot

Sets the reference image geometry used to filter selectable images.

When a valid geometry is provided, only 3D images matching that geometry are offered for selection. When nullptr is passed, all 3D images are available. Resets any currently selected initial parameter images.

Parameters

[in] refgeo Pointer to the reference geometry, or nullptr to clear the filter.

Member Data Documentation

◆ m_Controls

std::unique_ptr<Ui::QmitkInitialValuesManagerWidget> QmitkInitialValuesManagerWidget::m_Controls

protected

Definition at line 147 of file QmitkInitialValuesManagerWidget.h.

◆ m_InternalModel

QmitkInitialValuesModel* QmitkInitialValuesManagerWidget::m_InternalModel

protected

Definition at line 148 of file QmitkInitialValuesManagerWidget.h.

◆ m_NoHiddenOrHelperPredicate

mitk::NodePredicateBase::Pointer QmitkInitialValuesManagerWidget::m_NoHiddenOrHelperPredicate

protected

Definition at line 153 of file QmitkInitialValuesManagerWidget.h.

◆ m_TypeDelegate

QmitkInitialValuesTypeDelegate* QmitkInitialValuesManagerWidget::m_TypeDelegate

protected

Definition at line 150 of file QmitkInitialValuesManagerWidget.h.

◆ m_ValuesDelegate

QmitkInitialValuesDelegate* QmitkInitialValuesManagerWidget::m_ValuesDelegate

protected

Definition at line 151 of file QmitkInitialValuesManagerWidget.h.

The documentation for this class was generated from the following file:

QmitkInitialValuesManagerWidget.h
