Helper class representing a node in a tree structure of DataNodes. More...

#include <QmitkDataStorageTreeModelInternalItem.h>

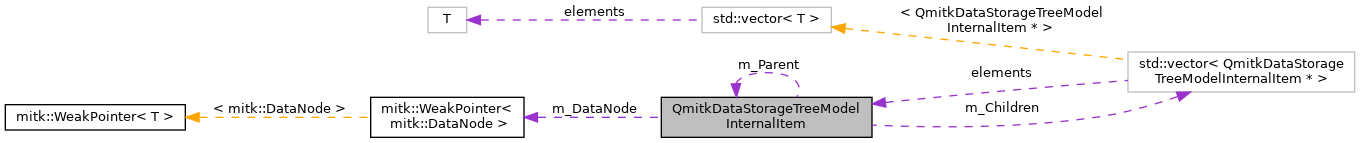

Collaboration diagram for QmitkDataStorageTreeModelInternalItem:

[legend]

Public Member Functions
	QmitkDataStorageTreeModelInternalItem (mitk::DataNode _DataNode, QmitkDataStorageTreeModelInternalItem _Parent=nullptr)
	Constructs a tree item for the given DataNode. More...

virtual	~QmitkDataStorageTreeModelInternalItem ()
	Destructor. Removes this item from its parent's child list. More...

int	IndexOfChild (const QmitkDataStorageTreeModelInternalItem *item) const
	Returns the index of the given child item. More...

QmitkDataStorageTreeModelInternalItem *	GetChild (int index) const
	Returns the child item at the given index. More...

QmitkDataStorageTreeModelInternalItem *	Find (const mitk::DataNode *_DataNode) const
	Recursively searches for the item holding the given DataNode. More...

int	GetChildCount () const
	Returns the number of child items. More...

int	GetIndex () const
	Returns the index of this item within its parent's child list. More...

QmitkDataStorageTreeModelInternalItem *	GetParent () const
	Returns the parent item. More...

mitk::DataNode::Pointer	GetDataNode () const
	Returns the DataNode associated with this tree item. More...

std::vector< QmitkDataStorageTreeModelInternalItem * >	GetChildren () const
	Returns all child items as a vector. More...

void	AddChild (QmitkDataStorageTreeModelInternalItem *item)
	Adds the given item as a child (if not already present). More...

void	RemoveChild (QmitkDataStorageTreeModelInternalItem *item)
	Removes the given item from this item's child list. More...

void	InsertChild (QmitkDataStorageTreeModelInternalItem *item, int index=-1)
	Inserts a child item at the given position. More...

void	SetParent (QmitkDataStorageTreeModelInternalItem *_Parent)
	Sets the parent of this item. More...

void	Delete ()
	Recursively deletes this item and all its children. More...

Protected Attributes
QmitkDataStorageTreeModelInternalItem *	m_Parent

std::vector< QmitkDataStorageTreeModelInternalItem * >	m_Children

mitk::WeakPointer< mitk::DataNode >	m_DataNode

Detailed Description

Helper class representing a node in a tree structure of DataNodes.

This class is used internally by QmitkDataStorageTreeModel and QmitkDataStorageSimpleTreeModel to build an in-memory tree hierarchy that mirrors the parent-child relationships in the DataStorage. Each item holds a weak pointer to a mitk::DataNode and references to its parent and children.

See also: QmitkDataStorageTreeModel; QmitkDataStorageSimpleTreeModel

Definition at line 35 of file QmitkDataStorageTreeModelInternalItem.h.

Constructor & Destructor Documentation

◆ QmitkDataStorageTreeModelInternalItem()

QmitkDataStorageTreeModelInternalItem::QmitkDataStorageTreeModelInternalItem	(	mitk::DataNode *	_DataNode,
		QmitkDataStorageTreeModelInternalItem *	_Parent = `nullptr`
	)

Constructs a tree item for the given DataNode.

Parameters

[in]	_DataNode	The data node to associate with this item. Must not be nullptr.
[in]	_Parent	Optional parent item. Defaults to nullptr (root item).

◆ ~QmitkDataStorageTreeModelInternalItem()

virtual QmitkDataStorageTreeModelInternalItem::~QmitkDataStorageTreeModelInternalItem ( )

virtual

Destructor. Removes this item from its parent's child list.

Note: Does not delete child items. Use Delete() to recursively remove an entire branch.

See also: Delete

Member Function Documentation

◆ AddChild()

void QmitkDataStorageTreeModelInternalItem::AddChild ( QmitkDataStorageTreeModelInternalItem * item )

Adds the given item as a child (if not already present).

Parameters

[in] item The item to add as a child.

◆ Delete()

void QmitkDataStorageTreeModelInternalItem::Delete ( )

Recursively deletes this item and all its children.

◆ Find()

QmitkDataStorageTreeModelInternalItem* QmitkDataStorageTreeModelInternalItem::Find ( const mitk::DataNode * _DataNode ) const

Recursively searches for the item holding the given DataNode.

Parameters

[in] _DataNode The data node to search for.

Returns: Pointer to the matching item, or nullptr if not found.

◆ GetChild()

QmitkDataStorageTreeModelInternalItem* QmitkDataStorageTreeModelInternalItem::GetChild ( int index ) const

Returns the child item at the given index.

Parameters

[in] index The zero-based child index.

Returns: Pointer to the child item, or nullptr if the index is out of range.

◆ GetChildCount()

int QmitkDataStorageTreeModelInternalItem::GetChildCount ( ) const

Returns the number of child items.

Returns: The child count.

◆ GetChildren()

std::vector<QmitkDataStorageTreeModelInternalItem *> QmitkDataStorageTreeModelInternalItem::GetChildren ( ) const

Returns all child items as a vector.

Returns: A vector of pointers to child items.

◆ GetDataNode()

mitk::DataNode::Pointer QmitkDataStorageTreeModelInternalItem::GetDataNode ( ) const

Returns the DataNode associated with this tree item.

Returns: A smart pointer to the data node.

◆ GetIndex()

int QmitkDataStorageTreeModelInternalItem::GetIndex ( ) const

Returns the index of this item within its parent's child list.

Returns: The zero-based index, or -1 if this item has no parent.

◆ GetParent()

QmitkDataStorageTreeModelInternalItem* QmitkDataStorageTreeModelInternalItem::GetParent ( ) const

Returns the parent item.

Returns: Pointer to the parent item, or nullptr for root items.

◆ IndexOfChild()

int QmitkDataStorageTreeModelInternalItem::IndexOfChild ( const QmitkDataStorageTreeModelInternalItem * item ) const

Returns the index of the given child item.

Parameters

[in] item The child item to find.

Returns: The zero-based index, or -1 if the item is not a child.

◆ InsertChild()

void QmitkDataStorageTreeModelInternalItem::InsertChild	(	QmitkDataStorageTreeModelInternalItem *	item,
		int	index = `-1`
	)

Inserts a child item at the given position.

If index is out of range (or -1), the item is appended at the end.

Parameters

[in]	item	The item to insert.
[in]	index	The position at which to insert. Defaults to -1 (append).

◆ RemoveChild()

void QmitkDataStorageTreeModelInternalItem::RemoveChild ( QmitkDataStorageTreeModelInternalItem * item )

Removes the given item from this item's child list.

Parameters

[in] item The child item to remove.

◆ SetParent()

void QmitkDataStorageTreeModelInternalItem::SetParent ( QmitkDataStorageTreeModelInternalItem * _Parent )

Sets the parent of this item.

Parameters

[in] _Parent The new parent item.

Member Data Documentation

◆ m_Children

std::vector<QmitkDataStorageTreeModelInternalItem *> QmitkDataStorageTreeModelInternalItem::m_Children

protected

Definition at line 138 of file QmitkDataStorageTreeModelInternalItem.h.

◆ m_DataNode

mitk::WeakPointer<mitk::DataNode> QmitkDataStorageTreeModelInternalItem::m_DataNode

protected

Definition at line 139 of file QmitkDataStorageTreeModelInternalItem.h.

◆ m_Parent

QmitkDataStorageTreeModelInternalItem* QmitkDataStorageTreeModelInternalItem::m_Parent

protected

Definition at line 137 of file QmitkDataStorageTreeModelInternalItem.h.

The documentation for this class was generated from the following file:

QmitkDataStorageTreeModelInternalItem.h
